Shacman F3000 8X4 Remote Control Heavy Duty Dump Truck Small Tipper Trucks
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Condition: | New | Steering: | Left, ZF Technology |
| Horsepower: | 380-430hp | Emission Standard: | Euro 2 |
| Segement: | Heavy Truck | Market Segement: | Engineering Transportation |
| Engine Brand: | Weichai | Fuel Type: | Diesel |
| Engine Capacity: | > 8L | Cylinders: | 12 |
| Gear Box Brand: | FAST | Transmission Type: | Manual |
| Forward Shift Number: | 10 | Reverse Shift Number: | 2 |
| Maximum Torque(Nm): | 1500-2000Nm | Dimensions (L x W x H) (mm): | 5800x2300x1500mm |
| Cargo Tank Dimension: | 5800x2300x1500mm | Cargo Tank length: | 5.3-6.2M |
| Gross Vehicle Weight: | 15-20T | Capacity (Load): | 21 - 30T |
| Fuel Tank Capacity: | 300-400L | Drive Wheel: | 8X4 |
| Passengers: | 2 | Driver's Seat: | Air Suspension |
| Rear Camera: | Camera | Touch Screen: | Yes |
| Air Conditioner: | Manual | Tire Number: | 10 |
| After-sales Service Provided: | Video Technical Support, Online Support | Product name: | Shacman F3000 8X4 Remote Control Heavy Duty New Dump Truck |
| Wheelbase: | 3975+1400mm/1800+3975+1400mm | Max. Speed: | 75km/h |
| Front/Rear Axle: | HANDE | Clutch: | 430 Diaphragm Clutch |
| Suspension: | Front And Rear Multi-leaf Spring, Four Main Plates+four Horse Bolts | Tires: | 12.00R20 10+1/13R22.5 12+1 |
| Cab: | Standard Flat Cab(Optional) | Color: | Customer's Request |
| High Light: | Shacman F3000 8X4 dump truck,remote control dump truck,heavy duty tipper trucks |
||
Product Description

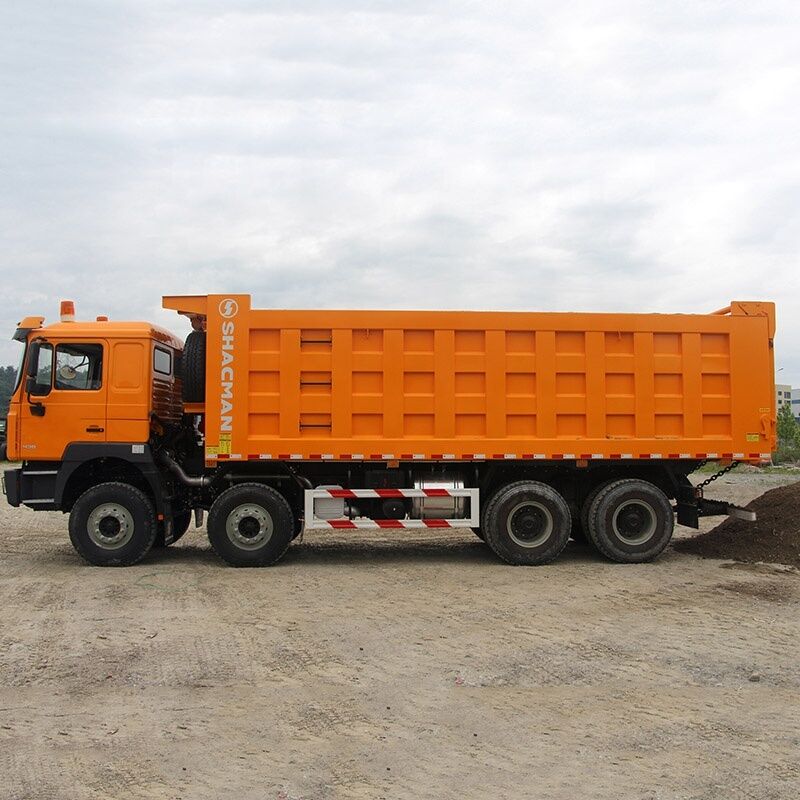

Shacman F3000 8X4 Remote Control Heavy Duty Dump Truck
The Shacman F3000 dump truck utilizes engine power to drive hydraulic lifting mechanisms, enabling efficient cargo unloading through controlled tilting. Designed for transporting construction materials including sand, gravel, soil, building materials, coal, and ore.
Available Configurations
Truck Series Options
- X3000, X5000, F3000, L3000, and H3000 series
- Engine power range: 210hp to 520hp
- Drive configurations: 6x4 and 8x4
Customization Options
- Truck chassis: SHACMAN (Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, JAC available)
- Driving type: 4x2, 6x4, 8x4
- Load capacity: Standard (25-40t), Composite (40-60t), Heavy (60-80t), Extra Heavy (>80t)
- Applications: Urban construction, road transport, mining, construction materials
- Lifting methods: Front lift, side lift, center lift
- Custom cargo box dimensions available
Technical Specifications
| Feature | 6x4 Model | 8x4 Model |
|---|---|---|
| Driving Style | Left hand drive/Right hand drive | |
| Wheelbase | 3975+1400mm | 1800+3975+1400mm |
| Max. Speed | 75km/h | 75km/h |
| Fuel Type | Diesel | Diesel |
| Engine Model | WEICHAI | WEICHAI |
| Transmission | FAST | FAST |
| Power | 279KW/380HP | 294KW/400HP |
| Front/Rear Axle | HANDE | HANDE |
| Steering | ZF technology | |
| Frame | 850x300(8+7)mm | |
| Fuel Tank | 400L Aluminum alloy | 380L Aluminum alloy |
Suspension: Front and rear multi-leaf spring, four main plates+four horse bolts
Brakes: Dual circuit compressed air brake, spring control parking brake, engine exhaust auxiliary brake
Cabin: Standard flat cab (Optional configurations available)
Brakes: Dual circuit compressed air brake, spring control parking brake, engine exhaust auxiliary brake
Cabin: Standard flat cab (Optional configurations available)
Model Variants
F3000 6X4 10 Wheels Dump Truck
F3000 8X4 12 Wheels Dump Truck
Company Profile
Henan Senyao Heavy Truck International Trade Co., Ltd. specializes in Shaanxi Automobile Heavy Truck exports, special vehicles, and construction machinery. As a global export authorization enterprise, we maintain a strategic policy of "mutual benefit, honesty and win-win" with an extensive sales network across Central Asia, Africa, and Central/South America. With an annual export capacity exceeding 3,000 units, our military-grade quality and professional export services have earned international customer recognition.
Shipping & Logistics
- Professional export packaging: Weather-proof and secure
- Multiple shipping methods: RORO, container, or bulk vessel
- Worldwide delivery: Experience in shipping to 50+ countries
- Documentation support: Complete export documentation provided
Frequently Asked Questions
What is the warranty period for SHACMAN dump trucks?
We offer 12 months (without mileage limit) for our dump trucks.
Can you provide right-hand drive versions?
Yes, we can supply both left-hand and right-hand drive configurations.
Do you provide custom body sizes?
Yes, we can customize body sizes from 20m³ to 30m³ based on your requirements.
What's the maximum gradeability?
Our dump trucks can handle gradients up to 35% depending on load conditions.
Do you provide operator training?
Yes, we provide comprehensive operation and maintenance training.
What payment terms do you accept?
We accept T/T, L/C, and other flexible payment methods.
What's the delivery time for bulk orders?
For orders of 10+ units, delivery time is 45-60 days.
Can you provide mining-specific configurations?
Yes, we offer reinforced frames, heavy-duty axles, and enhanced cooling systems for mining applications.
Selection Guide
Step 1: Define Your Needs
Primary Cargo Type:
- Sand, gravel, earth: Requires high load-bearing capacity and strength
- Coal, ore: Heavy cargo needing wear-resistant steel plates
- Construction waste: Requires high strength and sometimes covered tops
- Grain, feed: Lightweight bulk cargo requiring high volume and sealing
Road Conditions:
- Highway/Urban roads: Requires environmental compliance and U-shaped containers
- Construction sites/Mining areas: Needs engineering chassis with reinforced components
- Mountainous areas: Requires high horsepower, torque, and brake cooling systems
Budget Considerations: Prices range from $30,000+ to $97,000-$120,000 depending on specifications.
Key Questions for Suppliers
Chassis and Powertrain
- Chassis brand and model options
- Engine horsepower requirements based on application
- Transmission type and gear count for specific uses
- Hydraulic retarder necessity for mountainous terrain
- Axle specifications and gear ratio optimization
- Chassis reinforcement details for heavy-duty applications
Superstructure (Body & Hoisting System)
- Body dimensions, material specifications, and steel thickness
- Hoisting mechanism type (front tipping, middle tipping)
- Hydraulic system configuration and component brands
- Hoisting time optimization for safety and efficiency
