10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
| Condition: | New | Steering: | Left, ZF Technology |
| Horsepower: | 340 - 450hp | Emission Standard: | Euro 2 |
| Segement: | Heavy Truck | Market Segement: | Engineering Transportation |
| Engine Brand: | Weichai | Fuel Type: | Diesel |
| Engine Capacity: | > 8L | Cylinders: | 6 |
| Gear Box Brand: | FAST | Transmission Type: | Manual |
| Forward Shift Number: | 10 | Reverse Shift Number: | 2 |
| Maximum Torque(Nm): | 1500-2000Nm | Dimensions (L x W x H) (mm): | 8500x2600x3450mm |
| Cargo Tank Dimension: | 5800x2300x1500mm | Cargo Tank length: | 5.3-6.2M |
| Gross Vehicle Weight: | 10-50T | Capacity (Load): | 21 - 30T |
| Fuel Tank Capacity: | 300-400L | Drive Wheel: | 6X4 |
| Passengers: | 2 | Driver's Seat: | Air Suspension |
| Rear Camera: | None | Touch Screen: | Yes |
| Air Conditioner: | Manual | Tire Number: | 10 |
| After-sales Service Provided: | Video Technical Support, Online Support | Product name: | 50T Payload Capacity Underground Mining Dumper Truck For Sale |
| Wheelbase: | 3775+1400mm/1800+3575+1400mm | Max. Speed: | 75km/h |
| Front/Rear Axle: | HANDE | Clutch: | 430 Diaphragm Clutch |
| Suspension: | Front And Rear Multi-leaf Spring, Four Main Plates+four Horse Bolts | Tires: | 12.00R20 |
| Cab: | Standard Flat Cab(Optional) | Warranty: | 12 Months |
| High Light: | 10 tires underground mining dumper truck,20 ton payload dump truck,sand tipper dumper truck |
||

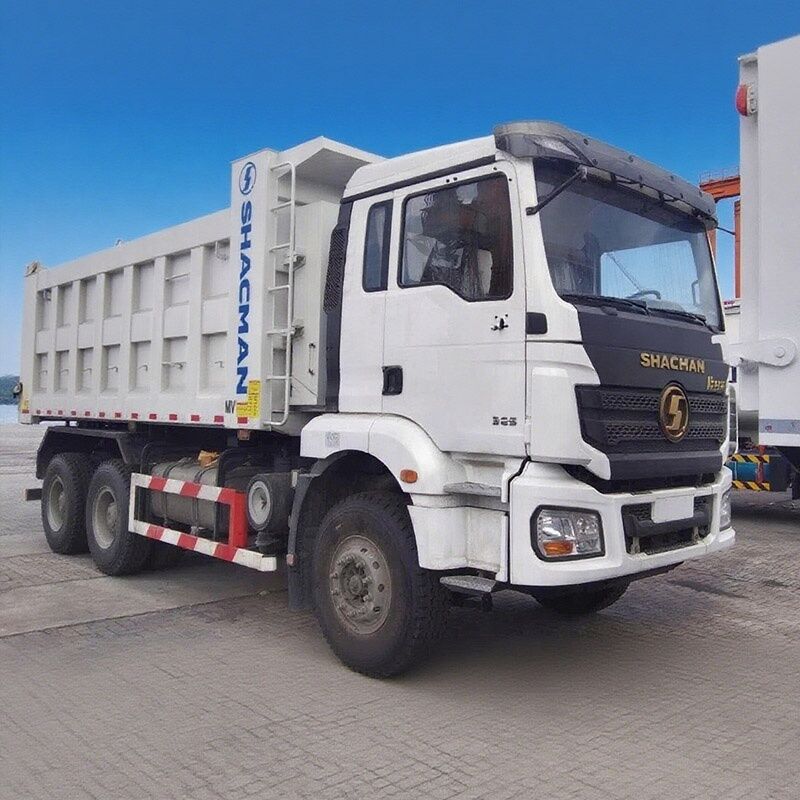

SHACMAN dump trucks are engineered for high-intensity working environments including mines, construction sites, ports, and water conservancy projects. These vehicles feature exceptional load capacity, efficient unloading capabilities, and proven reliability and durability.
- Truck chassis: SHACMAN (Alternative brands: Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, JAC)
- Driving type: 4x2, 6x4, 8x4 configurations
- Load capacity: Standard (25-40t), Composite (40-60t), Heavy (60-80t), Extra Heavy (>80t)
- Applications: Urban construction waste, road transportation, engineering mining, construction materials
- Lifting method: Front lift (primary), side lift, and center lift options
- Cargo Box Dimensions: Customizable based on client specifications
| Feature | 6x4 Model | 8x4 Model |
|---|---|---|
| Driving Style | Left hand drive/Right hand drive | |
| Wheelbase | 3775+1400mm | 1800+3575+1400mm |
| Max. Speed | 75km/h | 75km/h |
| Fuel Type | Diesel | |
| Engine Model | WEICHAI | WEICHAI |
| Transmission | FAST | FAST |
| Power | 300HP | 375HP |
| Emission Standard | EURO II | EURO V |
| Front/Rear Axle | HANDE | |
| Steering | ZF technology | |
| Suspension | Front and rear multi-leaf spring, four main plates+four horse bolts | |
| Frame | 850x300(8+7)mm | |
| Fuel tank | 400L Aluminum alloy | |
| Brakes | Running brake: Dual circuit compressed air brake Parking brake: Air discharging with spring control Auxiliary brake: Engine exhaust brake |
|
| Cabin | Standard flat cab (Optional) | |
- Export Packaging: Weather-proof covering and secure loading
- Shipping Methods: RORO, container, or bulk vessel
- Delivery Time: 20-40 days after order confirmation
- Documentation support: Complete export documentation provided
- Sand, gravel, earth: Heavy cargo requiring high vehicle load-bearing capacity and strength
- Coal, ore: Heavy, potentially corrosive cargo requiring high wear resistance
- Construction waste, muck: Contains debris requiring high strength and sometimes covered tops
- Grain, feed: Lightweight bulk cargo requiring high volume and sealing
Determine rated load mass (tonnage) and body volume (cubic meters) based on your usual cargo. Ensure compliance with standardized legal load weights.
- Highway/Urban roads: Requires environmental compliance, U-shaped containers for clean unloading
- Construction sites, mining areas: Harsh conditions requiring high passability and reliability
- Mountainous/Hilly areas: Requires high engine horsepower, torque, and brake cooling systems
Dump truck prices range from $30,000+ to $97,000-$120,000, depending on chassis brand, engine, body size, and strength requirements.
- Chassis brand and model options
- Engine horsepower requirements based on terrain and load
- Transmission model and gear count for durability
- Hydraulic retarder availability for mountainous driving
- Axle specifications and gear ratio optimization
- Chassis reinforcement details including frame and suspension
- Body dimensions and material specifications
- U-shaped environmentally friendly container options
- Hoisting mechanism types (front tipping, middle tipping)
- Hydraulic system configuration and performance metrics
