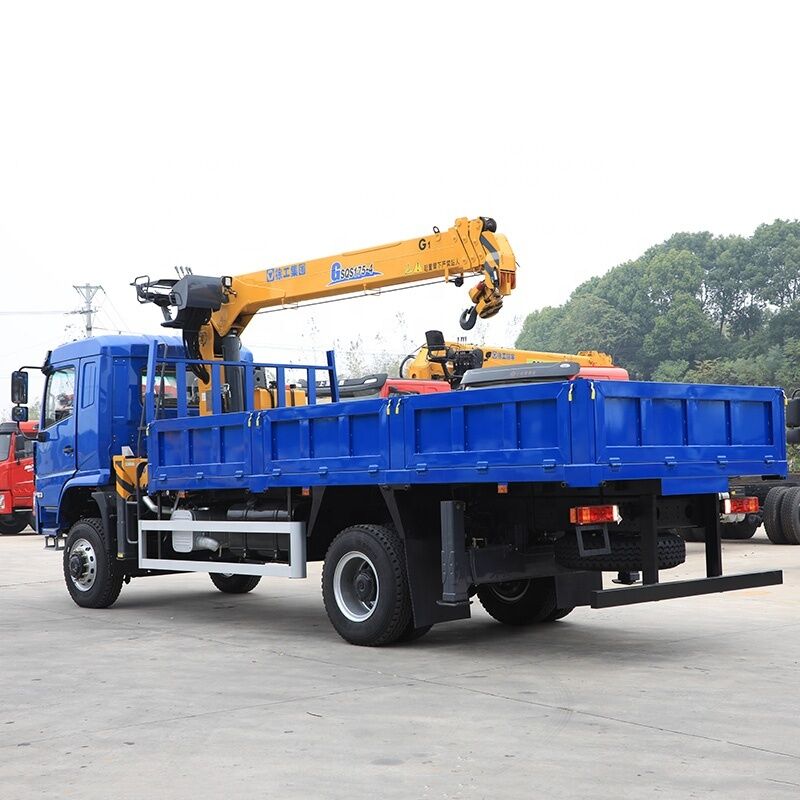

Hydraulic Straight Boom Truck 7 Ton Right Hand Truck Mounted Knuckle Boom Crane
| Color: | Blue, Green, Yellow, White | Application: | Construction/Warehouse/Terminals/Logistics/Rescue |
| Video outgoing-inspection: | Provided | Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine |
| Weight (KG): | 2330 Kg | Max. Speed: | 90km/h |
| High Light: | Hydraulic Straight Boom Truck,Straight Boom Truck 7 Ton,Hydraulic Truck Mounted Knuckle Boom Crane |
||
Professional truck-mounted crane solution featuring SHACMAN L3000 Series chassis and advanced hydraulic knuckle boom system for maximum lifting efficiency and mobility.
| Specification | Details |
|---|---|
| Truck Brand | SHACMAN L3000 Series Truck-mounted Crane |
| Drive Model | 4x2, Left or right hand drive |
| Max. Driving Speed | 90km/h |
| Parameter | Specification |
|---|---|
| Max. Lifting Weight | 7000kg |
| Max. Lifting Torque | 175kN*m |
| Max. Working Radius | 13.5m |
| Max. Lifting Height | 15.3m |
| Luffing Range | 0°～75° |
| Slewing Angle | 360° full turn |
| Max. Operating Pressure | 23MPa |
| Oil Flow Volume | 63L/min |
| Crane Weight | 2330kg |
