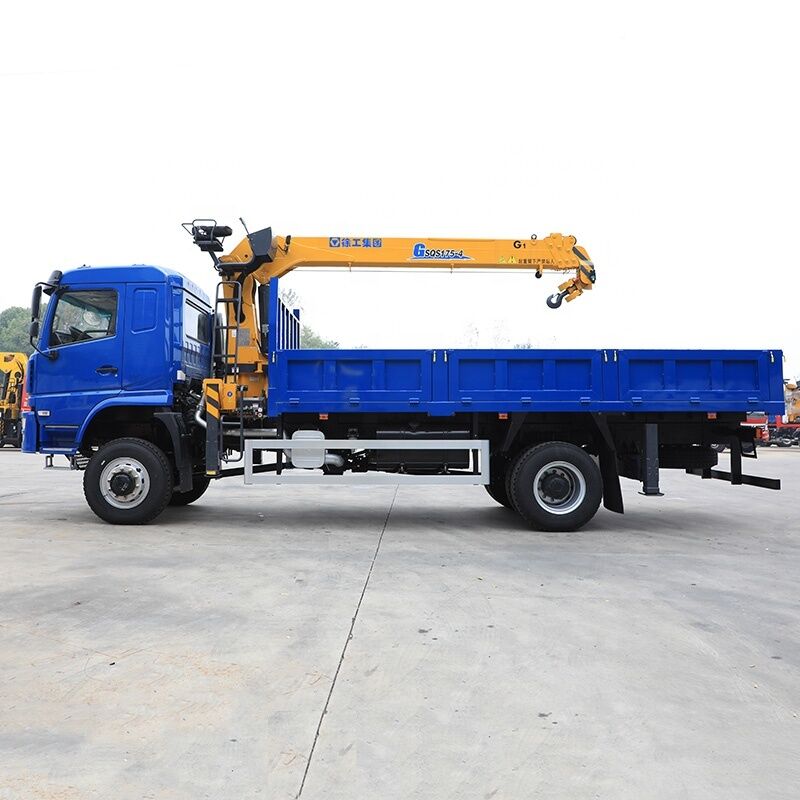

4 Section Straight Arm Truck Remote Control Truck Mounted Hydraulic Crane 15.3M
| Color: | Blue, Green, Yellow, White | Application: | Construction/Warehouse/Terminals/Logistics/Rescue |
| Rated Lifting Moment: | 175kN.m | Max. Lifting Height: | 15.3M |
| Span: | 2.43~5.65M | Make: | XCMG/SANY/SUNHUNK |
| Warranty: | 1 Year | Hydraulic Cylinder Brand: | Top Brand |
| Hydraulic Pump Brand: | Top Brand | Hydraulic Valve Brand: | Top Brand |
| Engine Brand: | Weichai | UNIQUE SELLING POINT: | High Operating Efficiency/Fully Hydraulic System |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine | Weight (KG): | 2330 Kg |
| Product Name: | Hydraulic Pump Straight Telescopic Boom Truck Crane | Driving Style: | 4x2, Left/Right Hand Drive |
| Max. Working Radius: | 13.5M | Luffing Range: | 0°~75° |
| Max. Operating Pressure: | 22MPa | Oil Flow Volume: | 63L/min |
| Engine Model: | WEICHAI, WP6.210E32 | Vehicle Speed Ratio: | 11.5T Single-stage Bridge 5.286 |
| Wheelbase: | 5700mm | Max. Speed: | 90km/h |
| High Light: | 4 Section Straight Arm Truck,Straight Arm Truck Hydraulic,truck mounted hydraulic crane 15.3M |
||
We offer a comprehensive range of crane truck solutions, with flexible customization options to meet diverse operational needs:
-
Truck Chassis
-
Primary brand: SHACMAN
-
Additional brands available upon request: Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, BEIBEN, JAC, JMC, and others.
-
-
Drive Configuration
-
4×2, 4×4, 6×4, 6×6, 8×4.
-
-
Emission Standards
-
Compliant with Euro II, Euro III, Euro V, and Euro VI.
-
-
Crane Brands
-
Leading manufacturers such as XCMG, SANY, Palfinger, UNIC, and others.
-
-
Lifting Capacity
-
Available from 2 to 20 tons, including:
2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 18T, 20T, and more.
-
-
Crane Arm Types
-
Straight Arm: Cost-effective and suitable for standard lifting tasks.
-
Folding Arm (Knuckle Boom): Compact and highly maneuverable, typically priced higher for the same lifting capacity.
-
-
Cargo Box Customization
-
Fully customizable dimensions based on client requirements, with expert guidance from our technical team.
-
|
Truck Brand
|
SHACMAN L3000 Series Truck-mounted Crane
|
|
|
|
Drive Model
|
4x2, Left or right hand drive
|
|
|
|
Max. driving speed
|
90km/h
|
|
|
|
Chassis
|
Chassis Brand
|
SHACMAN
|
|
|
|
Engine
|
WEICHAI, WP6.210E32
|
|
|
|
Power
|
210hp/154kw, 240hp/176kw
|
|
|
|
Emission Standard
|
EURO Ⅱ
|
|
|
|
Frame
|
870x250(7+4)mm
|
|
|
|
Wheelbase
|
5700mm
|
|
|
|
Suspension
|
Front and rear multi-leaf spring
|
|
|
|
Vehicle Speed Ratio
|
11.5T Single-stage bridge 5.286
|
|
|
|
Max. Lifting Weight
|
7000kg
|
|
|
|
Max. Lifting Torque
|
175kN·m
|
|
|
|
Max. Working Radius
|
13.5m
|
|
|
|
Max. Lifting Height
|
15.3m
|
|
|
|
Luffing Range
|
0°～75°
|
|
|
|
Slewing Angle
|
360° full turn
|
|
|
|
Max. Operating Pressure
|
23MPa
|
|
|
|
Oil Flow Volume
|
63L/min
|
|
|
|
Crane Weight
|
2330kg
|
|
