Shacman 6X4 Dump Truck with 41-50t Load Capacity, Euro 5 Emission Standard, and 351-450hp Horsepower

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

Payment Terms: T/T

Supply Ability: 800 Units/Per Day

Dump Tipper Truck

Specifications

Load Capacity:	41-50t	Emission Standard:	Euro 5
Drive Wheel:	6×6	Seats:	≤5
Horsepower:	351-450hp	Engine Capacity:	＞8L
High Light:	41-50t Load Capacity Dump Truck , Euro 5 Emission Standard Tipper Truck , 351-450hp Horsepower Heavy Dumper Truck

Product Description

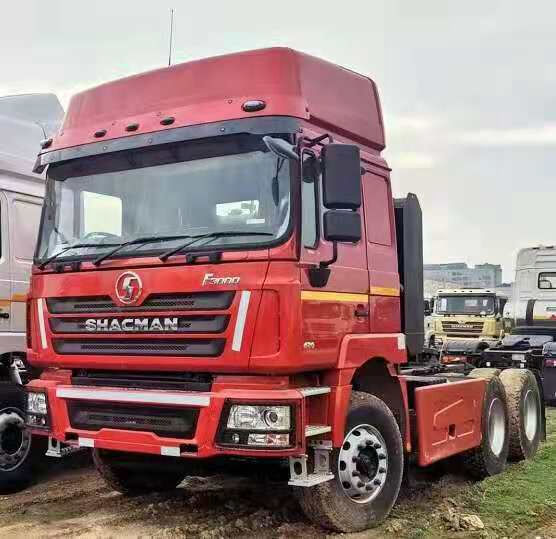

Shacman 6X4 Tractor Truck Specifications

The Shacman SX3255JM384 6x4 tractor truck is engineered for heavy-duty hauling applications with robust performance and reliable construction.

Model	SX3255JM384
Driver Position	Left Hand
Driving Type	6×4
Wheelbase	3775+1400
Maximum Speed	65km/h

Engine Specifications

Brand	Weichai
Model	WP10.290E32
Emission Standard	EURO2
Rated Output Power	290 PS
Displacement	9.726L

Transmission & Drivetrain

Transmission Brand	FAST
Transmission Model	9JS135-iron hell-QH50
Front Axle Brand	HANDE
Front Axle Model	MAN7.5T
Rear Axle Brand	HANDE
Rear Axle Model	16T MAN Twin-Stage Cast Axle 5.73

Chassis & Suspension

Steering	ZF technology/ZF
Frame	850×300 (8+7)
Suspension	Front and rear multi-leaf spring two main plates + two riding bolts
Fuel Tank	380L iron tank
Wheels & Tires	12R22.5 (10+1)

Braking System

Running Brake: Dual circuit compressed air brake
Parking Brake: Air discharging with spring control
Auxiliary Brake: Engine exhaust brake

Cabin Features

F2000 extended flat roof cab without top deflector tipper truck, hot zone air-conditioner, manual window crank, hydraulic main seat, single sleeper, single rear view mirror, imported clutch, common side air filter, domestic steering gear, common steering wheel, domestic six-channel ABS, domestic tachograph, 165Ah maintenance-free battery, manual flip, fixed on-board pedals, fibreglass bumper.

Upbody Specifications

Box Size	5200×2300×1350
Baseplate Thickness	8
Bangboard Thickness	6 U type container

Dump Truck Applications

A dump truck features a box that can be elevated at the front end to allow contents to be dumped out the back. These trucks are typically used to haul construction waste, sand, gravel, and similar materials.

Shacman Dump Truck Series

SHACMAN dump trucks include 5 series (X3000, F3000, H3000, F2000, L3000) to meet diverse customer requirements. With numerous configurations available—from standard tippers to highly specialized vehicles for demanding jobs—SHACMAN provides the perfect solution for any hauling application. Our qualified professionals can help you select the ideal vehicle for your specific needs.
