Construction Machinery Shacman Customize Cargo Transport Trailer Tow Tractor Vehicle Lorry Truck

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

Tractor Towing Truck

Specifications

Model NO.:	Shacman X5000 Tractor Truck	Transmission Type:	Manual
Power:	Diesel	Load Capacity:	21-30t
Emission Standard:	Euro 5	Drive Wheel:	6×4
Seats:	≤5	Horsepower:	＞450hp
Engine Capacity:	＞8L	Tire Certification:	ECE, GCC, ISO, DOT
Tire Design:	Tubeless	Condition:	New
Driver Position:	Left Hand	Color:	Enamel Red/Aurora White
Driving Type:	6*4	Wheelbase(mm):	3200+1400
Engines:	Weichai	Transport Package:	Roll
Specification:	819325403410	Trademark:	SHACMAN
Origin:	China	HS Code:	8704230090
Production Capacity:	1500pieces/Year
High Light:	Shacman cargo transport trailer truck , customizable tractor tow lorry , construction machinery tow truck

Product Description

Shacman Heavy Duty Dump Truck

A dump truck is designed with an elevated front-end box that allows contents to be dumped out the back. These trucks are typically used for hauling construction waste, sand, gravel, and similar materials.

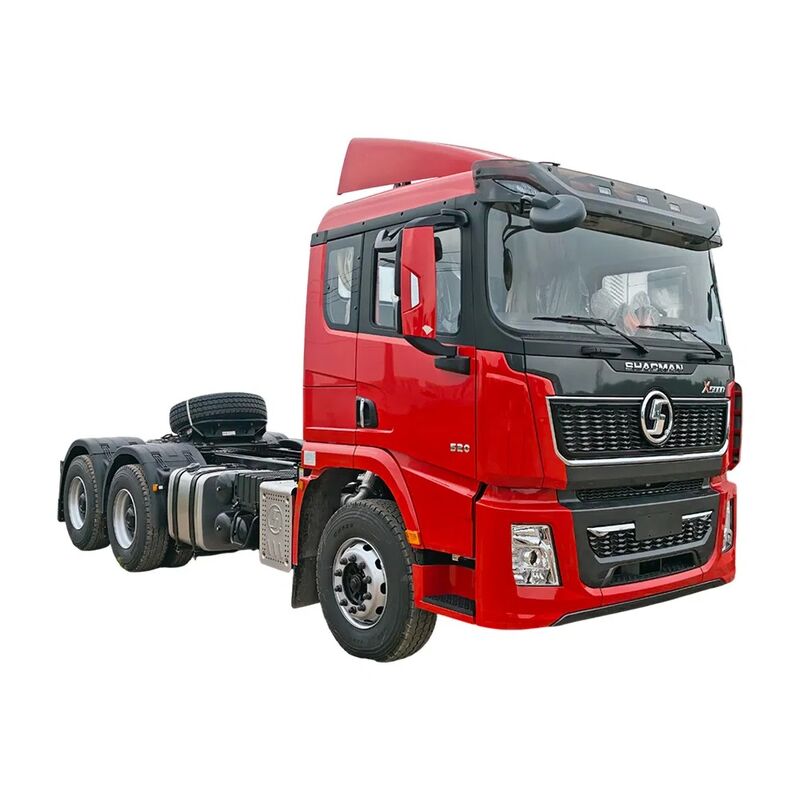

Construction Machinery Shacman Customize Cargo Transport Trailer Tow Tractor Vehicle Lorry Truck 0

SHACMAN dump trucks feature 5 series (X3000, F3000, H3000, F2000, L3000) to meet diverse customer requirements. With configurations ranging from standard tippers to highly specialized vehicles for demanding jobs, SHACMAN provides the perfect solution for any application. Our qualified professionals can help you select the ideal vehicle for your specific needs.

Product Specifications

Model	SX42584V324
Driver Position	Left Hand
Cabin	X5000 Extended High Roof Cab with Roof Side Deflectors
Color	Enamel Red/Aurora White
Driving Type	6×4
Wheelbase	3200+1400 mm
Engine Brand	WEICHAI
Engine Model	WP13.550E501
Emission Standard	EURO V
Rated Output Power	550 PS
Displacement	12.54L
Transmission Brand	FAST
Transmission Model	12JSDX240TA-QH50
Front Axle	HANDE MAN9.5T
Rear Axle	HANDE 16T MAN double reduction driving axle
Clutch	¢430 diaphragm clutch
Steering	ZF technology
Frame	850×300(8+5)
Suspension	Front and rear multi-plate springs
Wheels and Tires	12.00R20(10+1)
Oil Tank	600L+230L Aluminium alloy fuel tank

Braking System

Running Brake: Dual circuit compressed air brake
Parking Brake: Air discharging with spring control
Auxiliary Brake: Engine exhaust brake

Standard Features

Electronically controlled automatic climate control
Cast 90 saddle (L90)
Domestic clutch and steering gear
DC air filter and common exhaust
180Ah maintenance-free battery
Electric flip and three-stage on-board pedals
FRP bumper and electric window rollers
Central locking with remote control
Air main seat and electric heated mirrors
Four-point air suspension
Multi-function steering wheel with cruise control
Anti-flying splash wingboards and sunshade decorative lamps
Side tool box and aluminium alloy components
Safety equipment including 2kg fire extinguisher and parking wedge
Daytime running lights and 10-inch multi-media display
360 surround view and cryogenic piping

Customization Options

Engine

Choose between Weichai and Cummins engines. Cummins offers superior performance but may present maintenance challenges. Weichai provides strong power with easier maintenance capabilities.

Gearbox

Available in FAST manual or EATON ATM transmissions.

Lifting System

Options include HYVA or Chinese brand lifting systems.

Dumper Size

Customizable height and thickness modifications available.

Cab

Choose from F3000, H3000, or X3000 series. X3000 offers premium features, F3000 is the most popular, and H3000 provides cost-effective solutions.

Tire Configuration

Fully customizable tire options.

Oil Tank

Custom fuel tank configurations available.

Color Options

Available in White, Red, Orange, Green, and Blue.

Additional Spares

Optional accessories including cameras, daylight systems, and more.

Company Profile

Construction Machinery Shacman Customize Cargo Transport Trailer Tow Tractor Vehicle Lorry Truck 1

Shaanxi Hexin Shenghua Trading Co., Ltd is a global export authorized enterprise of Shaanxi Automobile heavy truck. As the largest export authorized enterprise in SHACMAN heavy truck sales and service, our core business focuses on vehicle production customization services.

Founded on September 20, 2019, we specialize in the integrated export of Shaanxi Automobile heavy trucks, construction machinery, and special vehicles. Our development philosophy centers on professionalism, innovation, and long-term vision, with 20 years of foreign trade expertise.

We continue the legacy of Silk Road business travel, actively expanding international and domestic markets. Through strategic partnerships, we've established companies and sales outlets in Uzbekistan, Tajikistan, Kyrgyzstan, Vietnam, and other countries, creating a comprehensive foreign trade export circulation system serving Central Asia, Africa, Asia-Pacific, and Central/South America.
