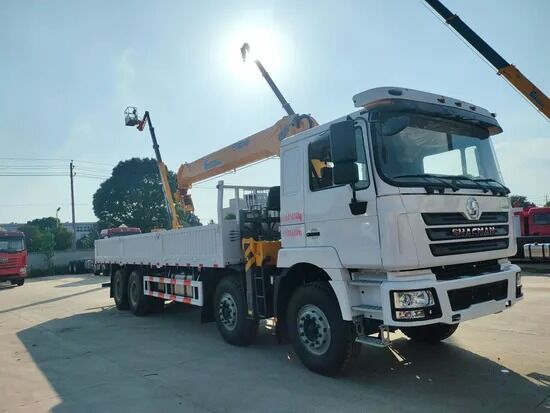

Shacman X3000 6x4 Straight Boom Truck With 400L Fuel Tank 380HP Engine
| Model NO.: | Shacman X3000 Special Truck | Transmission Type: | Manual |
| Tire Certification: | ECE, GCC, ISO, DOT | Tire Design: | Bias |
| Trademark: | SHACMAN | Origin: | China |
| HS Code: | 87042391 | Production Capacity: | 800PCS/Per Day |
| High Light: | 6x4 Straight Boom Truck,380HP Straight Boom Truck,Shacman X3000 Truck 400L |
||
- Dual Functionality: Combines transportation capabilities with self-contained loading, unloading, and lifting operations for complete "self-loading, self-transporting, and self-unloading" efficiency.
- Working Principle: Utilizes power from the vehicle's engine via a power take-off (PTO) unit to drive the hydraulic system, controlling crane arm extension/retraction, lifting/lowering, and slewing movements.
- Flexibility: Features 360° full rotation capability, providing wide working range and flexible operation across various job sites.
| MODEL | SX32555T404 |
| Driver position | Left Hand |
| Driving type | 6×4 |
| Wheelbase | 3975+1400 |
| Max. Speed | 75km/h |
| Engine | |
| Brand | WEICHAI |
| Model | WP10.380E22 |
| Emission Standard | EURO 2 |
| Rated output power | 380HP |
| Transmission | |
| Brand | FAST |
| Model | 12JSD200T-B-Iron Shell-QH50 |
| Front Axle | |
| Brand | HANDE |
| Model | MAN 9.5T |
| Rear Axle | |
| Brand | HANDE |
| Model | 16T MAN Double-Stage Reduction Drive Axle Speed ratio: 5.262 |
| Clutch | ¢430 diaphragm clutch |
| Steering | ZF technology/ZF |
| Frame | 850×300(8+7) |
| Suspension | Front and rear multi-leaf spring four main leaves+four horse riding |
| Fuel tank | 400L Aluminum alloy fuel tank |
| Wheels and tires | 12.00R20 Radial Tyre (Tyre 20 ply Rating) 10+1 |
| Brakes | |
| Running brake | Dual circuit compressed air brake |
| Parking brake | Air discharging with spring control |
| Auxiliary brake | Engine exhaust brake |
| Cabin Features | |
| X3000 extended flat roof cab without roof guide cover dump truck/electric automatic constant temperature air conditioning/desert air filter/ordinary exhaust/multi leaf spring front suspension/multi leaf spring (four saddle bolt) rear suspension/domestic steering gear/multifunctional steering wheel/165Ah maintenance free battery/electric flip/three-level boarding pedal/metal bumper with light protection net/center front traction seat/electric window shaking machine/central locking (with remote control)/air main seat/electric heated rearview mirror/tail light protection grille/water tank protection grille/front stabilizer bar/four point hydraulic suspension/stainless steel wheel rim decoration cover/reverse buzzer/daytime running lights/SHACMAN logo/full English logo/2KG fire extinguisher/parking Wedge block/rear axle stabilizer bar/battery box anti-theft | |
| Upbody Specifications | |
| Large box size: 5800 × 2300 × 1500 / Bottom plate thickness: 10 / Edge plate thickness: 8 / Large box color: same as the cab / Other components installed: Tianzi grid / T700 high-strength board | |
