| Brand Name: | SHACMAN |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 35-55days |
Sand, cement, blocks and prefabricated sections rarely end their journey on a paved road. The F3000 6X4 puts 380HP from a Weichai WP10.380E22 through a FAST 12JSD200T-B gearbox and HANDE axles, so the truck still pulls out of soft ground at the end of the run with a full body.
Frame rails measure 850 x 300 (8+5) mm with multi leaf spring suspension front and rear, and 12.00R20 tyres carry the load over unprepared ground without the risk of low profile sidewall damage.
Specification summary| Model | SX4255JT324, 6x4 |
|---|---|
| Wheelbase | 3175 + 1400 mm |
| Engine | Weichai WP10.380E22, 380 HP, 9.596 L, Euro 2 |
| Gearbox | FAST 12JSD200T-B, 430 mm clutch |
| Rear axle | HANDE 13 T twin stage, ratio 4.769 |
| Frame | 850 x 300 (8+5) mm |
| Fuel tank | 400 L aluminium alloy |
| Cab | F3000, air seat, air conditioning, 90 saddle |
Because the same chassis can be supplied as a prime mover, a contractor running both deliveries and trailer movements can standardise on one platform and one parts list. Ask us for the body plate thickness that matches your heaviest material.

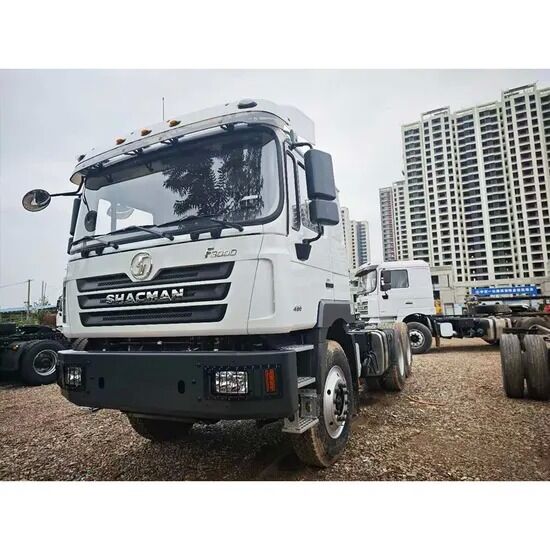

Product photos
