Lorry Truck

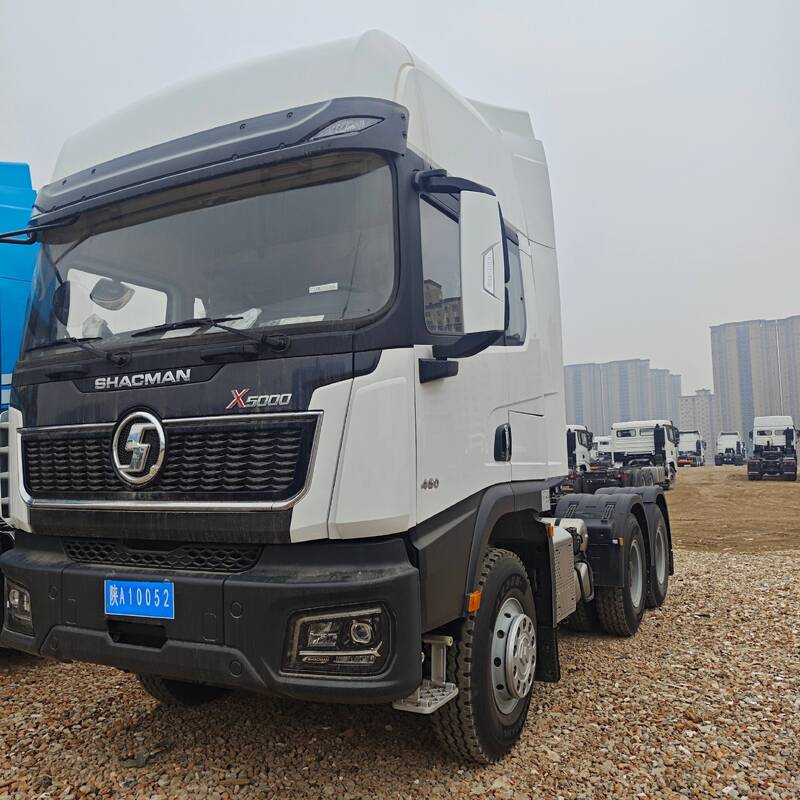

Created with Pixso. Lightweight SHACMAN X5000 6x4 Tractor Truck 480HP Euro5 Container Prime Mover

Lightweight SHACMAN X5000 6x4 Tractor Truck 480HP Euro5 Container Prime Mover

Brand Name: SHACMAN
Model Number: SHACMAN X5000 6×4 Tractor
MOQ: 1
Price: Negotiable
Delivery Time: 35-55days
Detail Information
Place of Origin:
SHAANXI,XIAN
Highlight:

Lightweight Aluminum Tractor Chassis

,

480HP ISZ Euro5 Engine

,

Container Haulage Prime Mover

Product Description

1. Product Attribute Table

Attribute Item Specification Content
Product Name 6×4 Lightweight Tractor Head / Tractor Unit
Brand SHACMAN
Platform X5000
Version Lightweight Version
Vehicle Model SX42584Y344C
Drive Mode 6×4
Engine Model ISZ480 51 (JAC08)
Rated Power 480HP
Emission Standard Euro 5
Transmission SF16JZ240A Aluminum Housing, QHG50C PTO + FHB400 Hydraulic Retarder
Rear Axle 11.5T HD Single Reduction Axle, Ratio 4.111
Frame Size (970-850)×270mm, 8 layers
Wheelbase 3375+1400 mm
Frame Rear Overhang 800 mm
Cab Type Extended High Roof Cab
Front Axle Load HD 7.5 Ton
Suspension Front few-leaf spring, rear full air suspension
Fuel Tank 600L+230L Aluminum Alloy Fuel Tank
Tire Spec Front 12R22.5, Rear 445/65R22.5 Aluminum Rim
GCW Max Gross Combination Weight ≤ 48 Ton
2. Basic Configuration
Equipped with X5000 extended high roof cab with side roof deflector, air suspended driver & passenger seats, electrically heated rearview mirrors, electronic automatic constant temperature air conditioner, electric window lifters, electric cab tilting system, fiberglass bumper, three-step boarding footboard, central locking, multifunctional steering wheel with cruise control, direct flow air filter, standard exhaust system, imported clutch, JOST 50 fifth wheel (E-mark certified, adjustable front & rear), lightweight three-section integrated mudguard, water tank protective grille, 180Ah maintenance-free battery and SHACMAN Telematics display terminal.
3. One Country One Document Export Configuration
4-point air suspension, side tool box, widened sleeper berth, yellow indicator lamp, SHACMAN brand logo, Spanish cab tilting instruction labels, WABCO 6-channel ABS, WABCO ECAS system, aluminum air reservoir, special rear underrun protection, reverse buzzer, 2KG fire extinguisher, ETA cut-off device, 300W inverter power supply, daytime running lights, deluxe tool kit, welcome lamp, transmission water cooling system and engine intake heating function.
4. Optional Configuration
360° panoramic view system, 700L+300L combined aluminum fuel tank, 12R22.5 front longitudinal & rear block tire, 11.5T HD single reduction axle (ratio 4.625), full disc brake system.
