F3000 6x4 340HP Dump Truck Diesel Automatic Euro 2 Emission Standard Left Steering
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Condition: | New | Steering: | Left, ZF Technology |
| Horsepower: | 340 - 450hp | Emission Standard: | Euro 2 |
| Segement: | Heavy Truck | Market Segement: | Urban Construction Muck Transportation |
| Engine Brand: | Weichai | Fuel Type: | Diesel |
| Engine Capacity: | > 8L | Cylinders: | 12 |
| Gear Box Brand: | FAST | Transmission Type: | Manual |
| Forward Shift Number: | 10 | Reverse Shift Number: | 2 |
| Maximum Torque(Nm): | 1500-2000Nm | Dimensions (L x W x H) (mm): | 5800x2300x1500mm |
| Cargo Tank Dimension: | 5800x2300x1500mm | Cargo Tank length: | 5.3-6.2M |
| Gross Vehicle Weight: | 15-20T | Capacity (Load): | 21 - 30T |
| Fuel Tank Capacity: | 300-400L | Drive Wheel: | 6x4/8x4 |
| Passengers: | 2 | Driver's Seat: | Air Suspension |
| Rear Camera: | Camera | Touch Screen: | Yes |
| Air Conditioner: | Manual | Tire Number: | 10 |
| After-sales Service Provided: | Video Technical Support, Online Support | Product name: | 10 Wheel 6X4 China Shacman F3000 Dump Tipper Truck |
| Wheelbase: | 3975+1400mm/1800+3975+1400mm | Max. Speed: | 75km/h |
| Front/Rear Axle: | HANDE | Clutch: | 430 Diaphragm Clutch |
| Suspension: | Front And Rear Multi-leaf Spring, Four Main Plates+four Horse Bolts | Tires: | 12.00R20 10+1/13R22.5 12+1 |
| Cab: | Standard Flat Cab(Optional) | Color: | Customer's Request |
| High Light: | 6x4 dump truck diesel automatic,340HP dump truck Euro 2,left steering dump truck |
||
Product Description

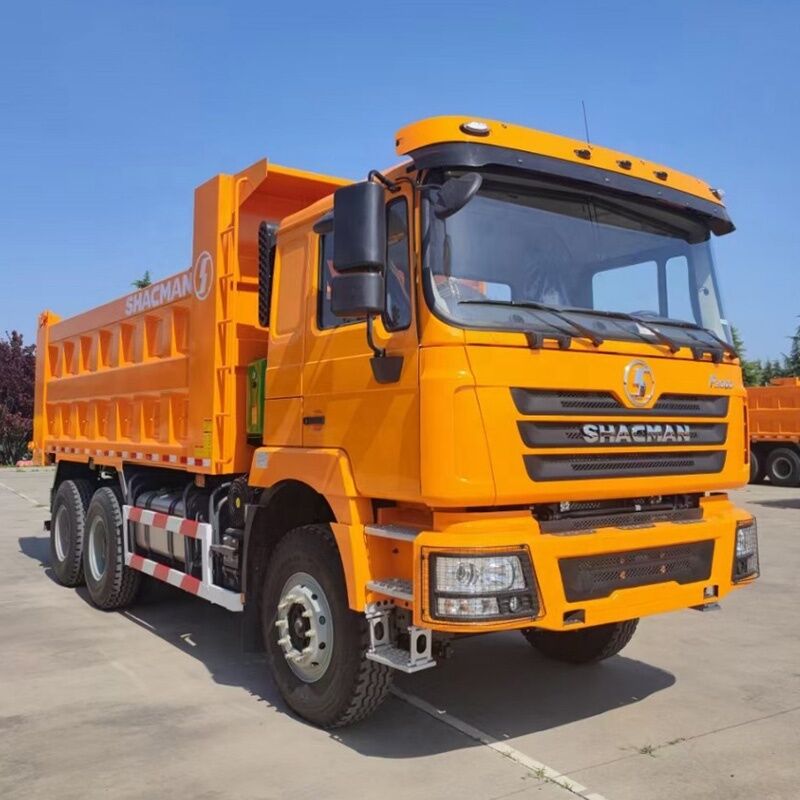

F3000 6x4 340HP Dump Truck - Diesel Automatic Euro 2 Emission Standard Left Steering
SHACMAN F3000 Series Dump Trucks
The SHACMAN F3000 dump truck utilizes engine power to drive a hydraulic lifting mechanism, tilting the carriage for efficient cargo unloading. Designed for transporting sand, gravel, soil, construction materials, coal, ore, and other bulk materials, these trucks offer reliable performance in demanding conditions.
Available Configurations
- Truck Chassis: SHACMAN (Also available: Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, JAC)
- Driving Type: 4x2, 6x4, 8x4 configurations
- Load Capacity: Standard (25-40t), Composite (40-60t), Heavy (60-80t), Extra Heavy (>80t)
- Applications: Urban construction, road transport, engineering mining, construction materials
- Lifting Method: Front lift (primary), side lift, center lift options
- Cargo Box: Custom dimensions available based on client requirements
Technical Specifications
| Feature | 6x4 Model | 8x4 Model |
|---|---|---|
| Driving Style | Left hand drive/Right hand drive | |
| Wheelbase | 3975+1400mm | 1800+3975+1400mm |
| Max. Speed | 75km/h | |
| Fuel Type | Diesel | |
| Engine Model | WEICHAI | |
| Transmission | FAST | |
| Power | 279KW/380HP | 294KW/400HP |
| Front/Rear Axle | HANDE | |
| Steering | ZF technology | |
| Frame | 850x300(8+7)mm | |
| Fuel Tank | 400L Aluminum alloy | 380L Aluminum alloy |
F3000 6X4 10 Wheels Dump Truck
F3000 8X4 12 Wheels Dump Truck
About Henan Senyao Heavy Truck International Trade Co., Ltd.
We specialize in the export integration of Shaanxi Automobile Heavy Truck, special vehicles, and construction machinery. As a global export authorization enterprise, we maintain a strategic policy of "mutual benefit, honesty and win-win" with an extensive sales network across Central Asia, Africa, and Central/South America. With an annual export capacity exceeding 3,000 units, our military-grade quality and professional export services ensure customer satisfaction worldwide.
We specialize in the export integration of Shaanxi Automobile Heavy Truck, special vehicles, and construction machinery. As a global export authorization enterprise, we maintain a strategic policy of "mutual benefit, honesty and win-win" with an extensive sales network across Central Asia, Africa, and Central/South America. With an annual export capacity exceeding 3,000 units, our military-grade quality and professional export services ensure customer satisfaction worldwide.
Shipping & Logistics
- Professional export packaging: Weather-proof and secure
- Multiple shipping methods: RORO, container, or bulk vessel
- Worldwide delivery: Experience shipping to 50+ countries
- Documentation support: Complete export documentation provided
Frequently Asked Questions
Q1: What is the warranty period for SHACMAN dump trucks?
A: We offer 12 months (without mileage limit) for our dump trucks.
Q2: Can you provide right-hand drive versions?
A: Yes, we can supply both left-hand and right-hand drive configurations.
Q3: Do you provide custom body sizes?
A: Yes, we can customize body sizes from 20m³ to 30m³ based on your requirements.
Q4: What's the maximum gradeability?
A: Our dump trucks can handle gradients up to 35% depending on load conditions.
Q5: Do you provide operator training?
A: Yes, we provide comprehensive operation and maintenance training.
Q6: What payment terms do you accept?
A: We accept T/T, L/C, and other flexible payment methods.
Q7: What's the delivery time for bulk orders?
A: For orders of 10+ units, delivery time is 45-60 days.
Q8: Can you provide mining-specific configurations?
A: Yes, we offer reinforced frames, heavy-duty axles, and enhanced cooling systems for mining applications.
How to Choose the Right Dump Truck
Step 1: Define Your Needs
Primary Cargo Type
- Sand, gravel, earth: Heavy cargo requiring high vehicle load-bearing capacity
- Coal, ore: Heavy, potentially corrosive materials requiring wear-resistant steel
- Construction waste, muck: Contains debris, requires high strength and sometimes covered tops
- Grain, feed: Lightweight bulk cargo requiring high volume and sealing
Load Requirements
Determine the usual weight and volume of cargo to select appropriate rated load mass (tonnage) and body volume. Ensure compliance with standardized legal load weights.
Road Conditions
- Highway/Urban roads: High environmental protection requirements, U-shaped environmentally friendly containers recommended
- Construction sites, mining areas: Harsh conditions requiring engineering version chassis with reinforced components
- Mountainous/Hilly areas: High requirements for engine horsepower, torque, and brake cooling systems
Budget Considerations
Dump truck prices range from $30,000+ to $97,000-$120,000, depending on chassis brand, engine specifications, body size, and strength requirements.
Step 2: Key Questions for Suppliers
Chassis and Powertrain
- Chassis brand and model: Choose mainstream brands for wider service networks
- Engine specifications: Horsepower requirements based on terrain and load (300-400+ HP)
- Transmission: FAST multi-gear manual transmission recommended for heavy loads
- Hydraulic retarder: Highly recommended for mountainous driving safety
- Axle specifications: Engineering axles with appropriate gear ratios for load capacity
- Chassis reinforcements: Double-layer frame thickness and multi-leaf spring suspension
Superstructure (Body & Hoisting System)
- Body dimensions and material: U-shaped environmentally friendly containers with high-strength wear-resistant steel
- Hoisting mechanism: Front tipping mechanism preferred for heavy loads
- Hydraulic system: Quality pump brands and appropriate hoisting time for safety and efficiency
