SHACMAN L3000 4*2 10 Ton Refrigerated Cargo Freezer Truck Cold Chain Transportation Vehicle Cold Room Van Frozen Food Trucks
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Model: | L3000 | Transmission Type: | Manual |
| Condition: | New | Horsepower: | 150 - 250hp |
| Emission Standard: | EURO 2 3 4 5 | Fuel Type: | Diesel |
| Dimensions (L x W x H) (mm): | 12000*2600*3995 | Box Dimensions (L x W x H) (mm): | 9250*2430*2500 |
| Temperature Range: | -18 - 20℃ | Gross Vehicle Weight: | 15-20T |
| After-sales Service Provided: | Online Support, Video Technical Support | Maximum Torque(Nm): | 1500-2000Nm |
| Capacity (Load): | 11 - 20T | Engine Capacity: | > 8L |
| Product name: | SHACMAN L3000 4x2 Refrigerated Truck Freezer Cold Box Truck | Drive type: | 4x2, 6x4/8x4/4x4/6x6 For Choice |
| Chassis Brand: | SHACMAN | Wheelbase: | 3600mm |
| Max. Speed: | 90km/h | ||
| High Light: | SHACMAN L3000 refrigerated truck,10 ton freezer truck,cold chain transport vehicle |
||
Product Description
SHACMAN L3000 4×2 10 Ton Refrigerated Truck
Product Overview
The SHACMAN L3000 Series Refrigerator Truck is a specialized enclosed transport vehicle designed for temperature-sensitive goods. It maintains a stable cold or fresh-keeping environment during transit with an insulated cargo compartment constructed from high-performance polyurethane materials and a reliable refrigeration system. Equipped with real-time temperature monitoring, this truck is ideal for transporting frozen food, dairy products, fruits, vegetables, vaccines, pharmaceuticals, and other perishables to prevent spoilage and ensure cargo quality.
Key Features & Advantages
- Precise Temperature Control for optimal cargo freshness
- Excellent Thermal Insulation for energy efficiency
- Reliable SHACMAN Chassis with powerful performance
- Intelligent Management System for full traceability
- Ergonomic Design for enhanced driving comfort
Technical Specifications
| Total Vehicle | |
|---|---|
| Overall Dimension | 6000×2350×3650mm |
| Cargo Van Box Size | 9100×2550×3910mm |
| Max. Speed | 90km/h |
| Color & LOGO | Customizable to customer requirements |
| Chassis | |
| Driving Style | Left or right hand drive available |
| Driving Type | 4×2, 6×4/8×4 configurations available |
| Engine | WEICHAI WP6.210E32, 210HP/154KW |
| Frame | 870×250(7+4)mm |
| Wheelbase | 3600mm |
| Vehicle Speed Ratio | 10T single-stage bridge 5.125 |
| Emission Standard | EURO 3 |
| Suspension | Front and rear multi-leaf springs |
| Cab | SHACMAN single row cab, 3 seats |
| Refrigerator Van Box | |
| Body Size | 3800×2400×2500mm |
| Load Capacity | 10-12 ton |
| Front/Side/Rear Panel | Fiber glass sandwich polyurethane |
| Insulation Layer | 8mm thickness |
| Lifting Device Material | Q235 High strength steel |
| Rear Door Type | Full Size Double Opening Rear Door |
| Flooring | Anti-skid and wear-resistant patterned aluminum plate |
| Refrigeration System | |
| Refrigeration Unit | Imported Carrier D6 |
| Refrigeration Temperature | -5°C to 15°C |

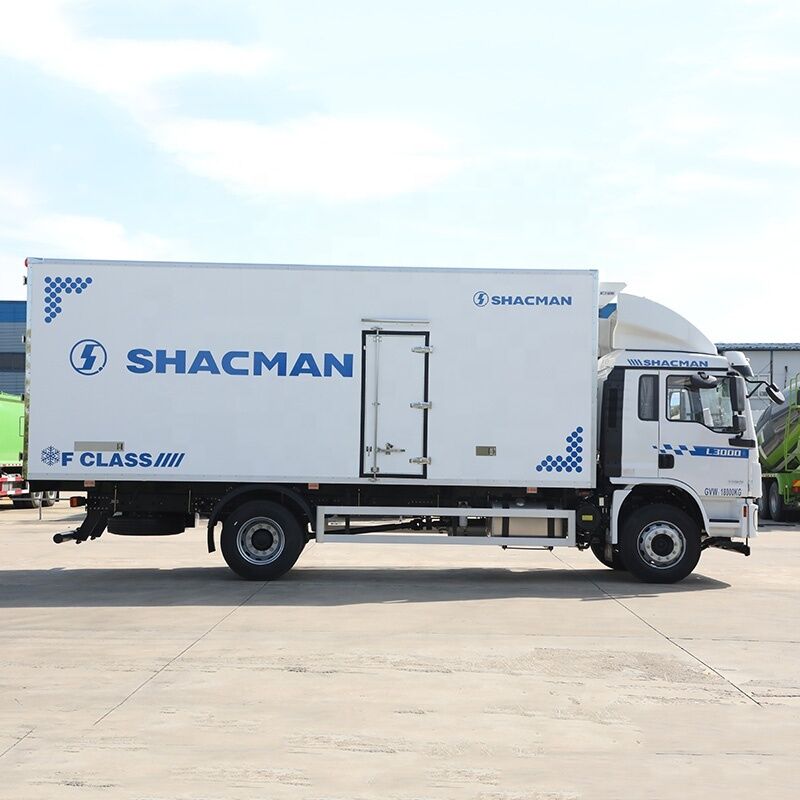

Product Images
Manufacturer Profile
Henan Senyao Heavy Truck International Trade Co., Ltd. specializes in the export integration of Shaanxi Automobile Heavy Truck, special vehicles, and construction machinery. As a global export authorization enterprise of Shaanxi Automobile Heavy Truck, we adhere to the strategic policy of "mutual benefit, honesty and win-win," building an extensive sales network across Central Asia, Africa, and Central and South America. With an annual export capacity exceeding 3,000 units, Senyao's product quality and service have earned recognition from customers worldwide. We offer military-grade quality and professional export services, looking forward to establishing long-term partnerships.
Packaging & Shipping
- Professional export packaging: Weather-proof and secure
- Multiple shipping methods: RORO, container, or bulk vessel
- Worldwide delivery: Experience in shipping to 50+ countries
- Documentation support: Complete export documentation provided
Purchase Guide
Step 1: Define Your Requirements
1. What goods will you be transporting?
Type of Goods: Frozen (ice cream, frozen meat, requiring -18°C or below), refrigerated (chilled meat, yogurt, pharmaceuticals, requiring 0°C~8°C), or fresh produce (fruits and vegetables, requiring 0°C~15°C). Consider the value and temperature sensitivity of your goods to determine the required performance grade.
Type of Goods: Frozen (ice cream, frozen meat, requiring -18°C or below), refrigerated (chilled meat, yogurt, pharmaceuticals, requiring 0°C~8°C), or fresh produce (fruits and vegetables, requiring 0°C~15°C). Consider the value and temperature sensitivity of your goods to determine the required performance grade.
2. What is the scale and frequency of your transport?
Consider your single load capacity and total weight requirements, plus transport distance and frequency (short-distance urban distribution vs. long-distance intercity routes) to determine chassis size and refrigeration unit specifications.
Consider your single load capacity and total weight requirements, plus transport distance and frequency (short-distance urban distribution vs. long-distance intercity routes) to determine chassis size and refrigeration unit specifications.
3. What are the requirements for the chassis and licensing?
Determine whether you need Blue plate (easier urban access) or Yellow plate (higher carrying capacity) licensing, and consider common road conditions to select appropriate chassis specifications.
Determine whether you need Blue plate (easier urban access) or Yellow plate (higher carrying capacity) licensing, and consider common road conditions to select appropriate chassis specifications.
4. What is your budget range?
Your budget will determine whether you can choose domestic, joint-venture, or imported refrigeration units, as well as the grade of body materials.
Your budget will determine whether you can choose domestic, joint-venture, or imported refrigeration units, as well as the grade of body materials.
Step 2: Confirm Refrigerated Truck Details
A. About the Refrigeration Unit
Consider independent vs. non-independent units, brand selection (Thermo King, Carrier, Mahle for imported brands; KingSnow, Songhan for domestic), cooling capacity, temperature range, and control system features including remote monitoring capabilities.
Consider independent vs. non-independent units, brand selection (Thermo King, Carrier, Mahle for imported brands; KingSnow, Songhan for domestic), cooling capacity, temperature range, and control system features including remote monitoring capabilities.
B. About the Insulated Cargo Body
Evaluate body material and structure (polyurethane integral foam recommended), inner/outer skin materials (FRP, stainless steel, aluminum alloy), insulation layer thickness (80mm, 100mm, 120mm), and sealing details including door frame structure and floor design.
Evaluate body material and structure (polyurethane integral foam recommended), inner/outer skin materials (FRP, stainless steel, aluminum alloy), insulation layer thickness (80mm, 100mm, 120mm), and sealing details including door frame structure and floor design.
C. About the Truck Chassis
Consider chassis brand and model, engine specifications and emission standards, and ensure the chassis has been reinforced specifically for refrigerated body applications.
Consider chassis brand and model, engine specifications and emission standards, and ensure the chassis has been reinforced specifically for refrigerated body applications.
D. About Price and Service
Request a comprehensive price breakdown including all components and services. Verify after-sales service terms, warranty periods for chassis, refrigeration unit, and body, and confirm service network coverage and response times.
Request a comprehensive price breakdown including all components and services. Verify after-sales service terms, warranty periods for chassis, refrigeration unit, and body, and confirm service network coverage and response times.
Frequently Asked Questions
Q1: How do I choose the right size refrigerator truck and refrigeration unit?
A: Body size is determined by your daily freight volume and cargo density, considering legal size limits. For the refrigeration unit, select one level more powerful than your theoretical minimum requirement based on required temperature range, body size and insulation performance, and frequency of door openings.
Q2: How can I ensure my goods maintain the correct temperature for the entire trip?
A: Pre-cool the empty truck body to target temperature before loading. Ensure proper airflow by leaving space between cargo and walls/ceiling/floor. Minimize door opening time during loading/unloading. Use temperature monitoring systems to track conditions throughout the journey.
Q3: Do you provide training for operators and maintenance personnel?
A: Yes, we provide detailed operation and maintenance manuals in required languages. Upon request, we can arrange training sessions at the manufacturing site or provide video training materials. On-site training for overseas projects can be discussed.
Q4: What are the warranty terms for the refrigerated truck?
A: The warranty period is typically 12 months from shipment date or arrival at destination port. The warranty covers defects in materials and workmanship under normal use, with specific terms detailed in the sales contract.
Q5: Can the refrigerated truck be customized for specific needs?
A: Absolutely. We specialize in customization and can adjust cargo capacity, color, logo, and specific equipment compartments based on customer requirements.
Q6: What about the supply of spare parts?
A: We maintain a reliable supply chain for SHACMAN chassis parts and work with OEMs to ensure genuine spare part availability for refrigeration system components. We also assist in identifying local parts suppliers where possible.
Q7: Which payment terms can you accept?
A: We accept T/T (30% down payment, 70% balance before shipment), L/C (100% irrevocable L/C from recognized banks), VISA, and PayPal. Specific terms can be discussed with your sales manager.
