Widely Used Mini Small Refrigerated Food Trucks Vertical Refrigerator Van Units 10Ton Cooling Seafood Freezer Box Truck
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Model: | L3000 | Transmission Type: | Manual |
| Condition: | New | Horsepower: | 150 - 250hp |
| Emission Standard: | EURO 2 3 4 5 | Fuel Type: | Diesel |
| Dimensions (L x W x H) (mm): | 12000*2600*3995 | Box Dimensions (L x W x H) (mm): | 9250*2430*2500 |
| Temperature Range: | -18 - 20℃ | Gross Vehicle Weight: | 15-20T |
| After-sales Service Provided: | Online Support, Video Technical Support | Maximum Torque(Nm): | 1500-2000Nm |
| Capacity (Load): | 11 - 20T | Engine Capacity: | > 8L |
| Product name: | SHACMAN L3000 4x2 Refrigerated Truck Freezer Cold Box Truck | Drive type: | 4x2, 6x4/8x4/4x4/6x6 For Choice |
| Chassis Brand: | SHACMAN | Wheelbase: | 3600mm |
| Max. Speed: | 90km/h | Front/side/rear panel: | Fiber Glass Sandwich Polyurethane |
| Middle Insulation layer: | 8mm Thickness | Flooring: | Anti-skid And Wear-resistant Patterned Aluminum Plate |
| Color & LOGO: | According To Customers' Requirement | Application: | Dairy Products/Frozen Food/Fruits/Vegetables/Vaccines/Medicine, Etc. |
| High Light: | mini refrigerated food truck,10Ton seafood freezer box,vertical refrigerator van units |
||
Product Description

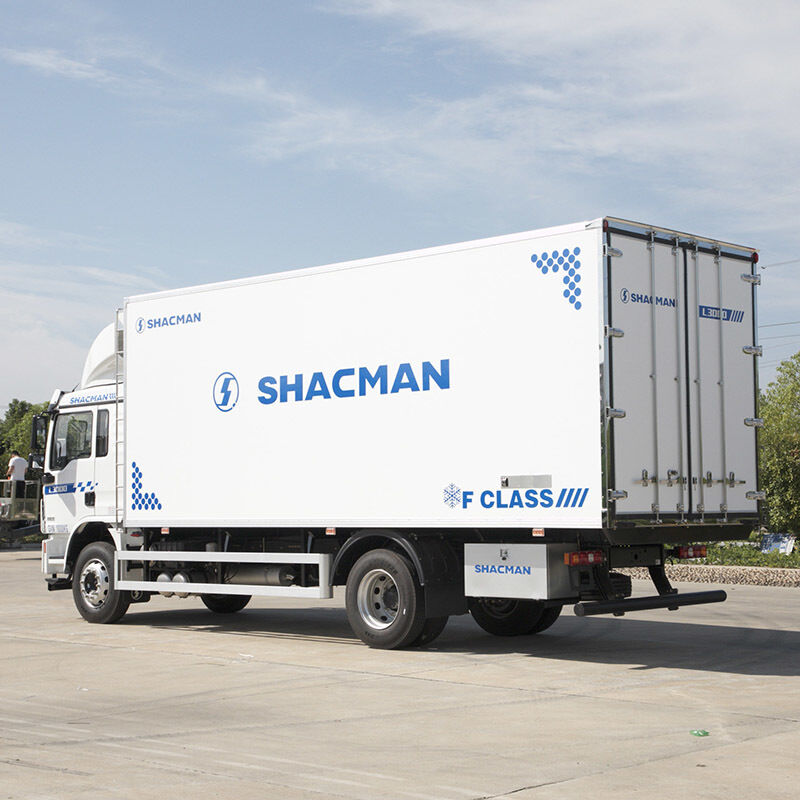

SHACMAN L3000 Series Refrigerator Trucks
Specialized enclosed transport vehicles designed for temperature-sensitive goods, maintaining stable cold or fresh-keeping environments during transit. Features include insulated cargo compartments made of high-performance polyurethane materials and reliable refrigeration units with real-time temperature monitoring systems. Ideal for transporting frozen food, dairy products, fruits, vegetables, vaccines, pharmaceuticals, and other perishables to prevent spoilage and ensure cargo quality.
Key Features and Advantages
- Precise Temperature Control for Cargo Freshness
- Excellent Thermal Insulation for Energy Saving
- Reliable Shacman Chassis with Powerful Performance
- Intelligent Management for Full Traceability
- Ergonomic Design for Driving Comfort
Technical Specifications
| Total Vehicle Specifications | |
|---|---|
| Overall Dimension | 6000x2350x3650mm |
| Cargo VAN Box Size | 9100x2550x3910mm |
| Max. Speed | 90km/h |
| Color & LOGO | According to customers' requirement |
| Chassis Specifications | |
| Driving Style | Left hand drive or right hand drive |
| Driving Type | 4x2, 6x4/8x4 for your choice |
| Engine | WEICHAI, WP6.210E32, 210HP/154KW |
| Frame | 870x250(7+4)mm |
| Wheelbase | 3600mm |
| Vehicle Speed Ratio | 10T single-stage bridge 5.125 |
| Emission Standard | EURO 3 |
| Suspension | Front and rear multi-leaf springs |
| Cab | Shacman single row cab, 3 seats |
| Refrigerator VAN Box Specifications | |
| Body Size | 3800x2400x2500mm |
| Load capacity | 10-12 ton |
| Front/side/rear panel | Fiber glass sandwich polyurethane |
| Middle Insulation layer | 8mm thickness |
| Lifting Device Material | Q235 High strength steel |
| Rear Door Type | Full Size Double Opening Rear Door |
| Flooring | Anti-skid and wear-resistant patterned aluminum plate |
| Refrigeration Unit | Imported Carrier D6 |
| Refrigeration temperature | -5-15°C |
Product Images
Company Profile
Henan Senyao Heavy Truck International Trade Co., Ltd. specializes in the export integration of Shaanxi Automobile Heavy Truck, special vehicles and construction machinery, serving as a global export authorization enterprise of Shaanxi Automobile Heavy Truck. We adhere to the strategic policy of "mutual benefit, honesty and win-win", building a comprehensive sales network across Central Asia, Africa, and Central and South America. With an annual export capacity exceeding 3,000 units, Senyao's product quality and service have earned recognition from customers worldwide.
Packing & Shipping
- Professional export packaging: Weather-proof and secure
- Multiple shipping methods: RORO, container, or bulk vessel
- Worldwide delivery: Experience in shipping to 50+ countries
- Documentation support: Complete export documentation provided
Purchase Guide
Step 1: Define Your Requirements
1. What goods will you be transporting?
Type of Goods: Determine if you need frozen transport (-18°C or below for ice cream, frozen meat), refrigerated (0°C ~ 8°C for chilled meat, yogurt, pharmaceuticals), or fresh produce (0°C ~ 15°C for fruits and vegetables).
Value and Temperature Sensitivity: High-value or temperature-sensitive goods require higher performance refrigeration units and superior insulation.
2. What is the scale and frequency of your transport?
Load Capacity: Determine your typical tonnage requirements to select appropriate chassis and cargo box sizes.
Transport Distance and Frequency: Short-distance urban distribution or long-distance intercity routes affect chassis power, unit endurance, and reliability requirements.
3. What are the requirements for the chassis and licensing?
License Type: Blue plate (car license, easier urban access) or Yellow plate (truck license, higher capacity) determines chassis size and Gross Vehicle Weight.
Road Conditions: Urban streets, suburbs, or highways determine power requirements, maneuverability, and vehicle dimensions.
4. What is your budget range?
Budget determines choice between domestic, joint-venture, or imported refrigeration units and body material grades. Imported brands (Thermo King, Carrier) offer superior performance; domestic brands provide better cost-effectiveness.
Step 2: Confirm Refrigerated Truck Details
A. Refrigeration Unit Selection
Unit Type: Independent units have their own engine for stable operation during long stops. Non-independent units are powered by the vehicle's engine, offering lower cost but limited operation when stationary.
Brand Selection: Choose between imported brands (Thermo King, Carrier, Mahle) or quality domestic brands (KingSnow, Songhan) based on performance requirements and budget.
Cooling Capacity: Ensure the unit's maximum capability exceeds your actual temperature requirements, especially for frozen goods requiring -18°C.
Control Systems: Digital temperature control provides precise monitoring and data logging. Remote monitoring capabilities are essential for high-value goods management.
B. Insulated Cargo Body Specifications
Body Material: Polyurethane integral foam construction provides optimal insulation. Choose between FRP, stainless steel, or aluminum alloy skins based on corrosion resistance and weight requirements.
Insulation Thickness: 80mm, 100mm, or 120mm options. For frozen goods or extreme temperature variations, 100mm or thicker insulation is recommended.
Sealing and Details: Multi-layer door seals and proper door frame structure are critical for maintaining stable internal temperatures.
Floor Structure: Anti-skid patterned aluminum plate with proper drainage and ventilation channels prevents water accumulation and aids cold air circulation.
C. Truck Chassis Requirements
Chassis Brand: SHACMAN, Foton, Dongfeng, Jiefang, or Sinotruk options available.
Engine and Emissions: Verify horsepower meets requirements and compliance with applicable emission standards.
Chassis Stability: Ensure proper reinforcement for refrigerated body installation to handle heavy loads and dense cargo.
D. Pricing and Service Considerations
Price Breakdown: Confirm total on-road pricing including chassis, refrigeration unit, insulated body, installation, delivery, and taxes.
After-Sales Service: Verify separate warranty periods for chassis, refrigeration unit, and body. Confirm service network coverage and response times for refrigeration unit maintenance.
Frequently Asked Questions
Q1: How do I choose the right size refrigerator trucks and refrigeration unit?
A: Body size is determined by your daily freight volume and cargo density, considering legal size limits. For the refrigeration unit, select one level more powerful than your theoretical minimum requirement. Key factors include required temperature range (frozen below -18°C or chilled 0°C to 5°C), body size and insulation performance, and frequency of door openings.
Q2: How can I ensure my goods maintain the correct temperature for the entire trip?
A: Pre-cool the empty truck body to target temperature before loading. Ensure proper airflow by leaving space between cargo and walls/ceiling/floor. Minimize door opening time during loading/unloading. Use temperature loggers to monitor the entire journey and maintain objective evidence.
Q3: Do you provide training for operators and maintenance personnel?
A: Yes, we provide detailed operation and maintenance manuals in required languages. Training sessions at the manufacturing site or video training materials are available. On-site training and commissioning can be arranged for overseas projects.
Q4: What are the warranty terms for the refrigerated truck?
A: The warranty period is typically 12 months from shipment date or arrival at destination port. The warranty covers defects in materials and workmanship under normal use. Specific terms are detailed in the sales contract.
Q5: Can the refrigerated truck be customized for specific needs?
A: Absolutely. We offer customization options including cargo tank capacity, color, logo, and specific equipment compartments based on customer requirements.
Q6: What about the supply of spare parts?
A: We maintain a reliable supply chain for SHACMAN chassis parts. For refrigeration system components, we work with OEMs to ensure genuine spare part availability and support in identifying local suppliers where possible.
Q7: Which payment terms can you accept?
A: We accept T/T terms (30% down payment, 70% balance before shipment), L/C terms (100% irrevocable L/C from recognized banks), VISA, and Paypal. Please consult with your sales manager for specific payment arrangements.
