4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications

Basic Properties
Place of Origin: SHAANXI,XIAN
Brand Name: SHACMAN
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Tags

special transport truck with warranty

Customized Tow X3000 8X4 wrecker truck

refrigeration box delivery van
Specifications
Model: L3000 Transmission Type: Manual
Condition: New Horsepower: 150 - 250hp
Emission Standard: EURO 2 3 4 5 Fuel Type: Diesel
Dimensions (L x W x H) (mm): 12000*2600*3995 Box Dimensions (L x W x H) (mm): 9250*2430*2500
Temperature Range: -18 - 20℃ Gross Vehicle Weight: 15-20T
After-sales Service Provided: Online Support, Video Technical Support Maximum Torque(Nm): 1500-2000Nm
Capacity (Load): 11 - 20T Engine Capacity: > 8L
Product name: SHACMAN L3000 4x2 Refrigerated Truck Freezer Cold Box Truck Drive type: 4x2, 6x4/8x4/4x4/6x6 For Choice
Chassis Brand: SHACMAN Wheelbase: 3600mm
Max. Speed: 90km/h Front/side/rear panel: Fiber Glass Sandwich Polyurethane
Middle Insulation layer: 8mm Thickness Flooring: Anti-skid And Wear-resistant Patterned Aluminum Plate
Color & LOGO: According To Customers' Requirement Application: Dairy Products/Frozen Food/Fruits/Vegetables/Vaccines/Medicine, Etc.
High Light:

4x2 refrigerated cargo van

,

vegetable transport refrigeration system

,

deep frozen pickup truck body
Product Description
4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 0 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 1

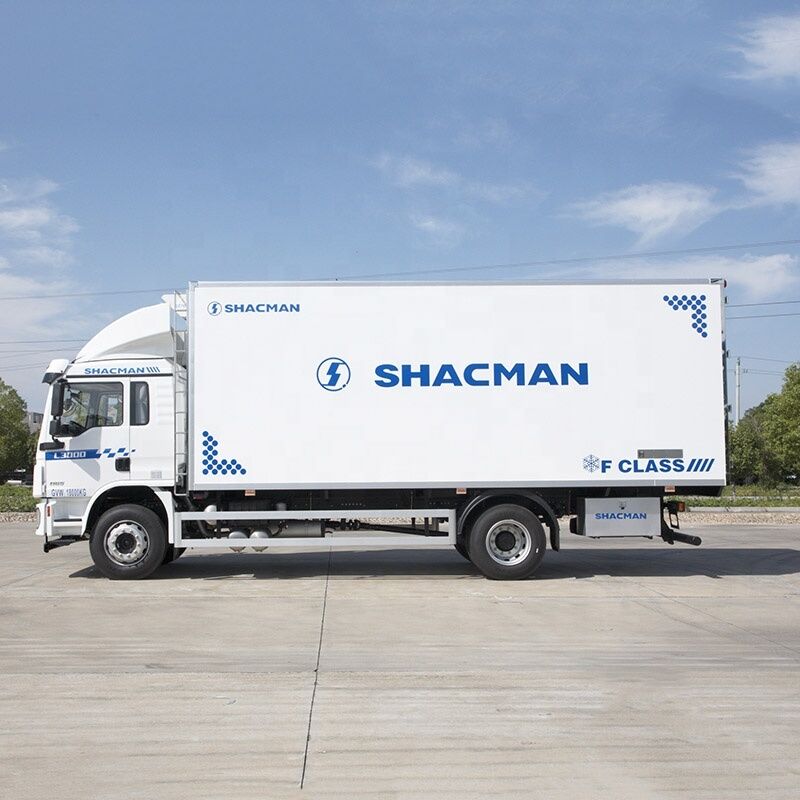

SHACMAN L3000 Series Refrigerator Trucks
Specialized enclosed transport vehicles designed to maintain stable cold or fresh-keeping environments for temperature-sensitive goods during transit. Features include insulated cargo compartments constructed with high-performance polyurethane materials and reliable refrigeration units with real-time temperature monitoring systems.
Ideal Applications
Perfect for transporting frozen foods, dairy products, fruits, vegetables, vaccines, pharmaceuticals, and other perishable goods. Effectively prevents spoilage and ensures cargo quality preservation.
Available Configurations
Available in mini, small, medium, and large sizes with van-type or semi-trailer configurations to meet diverse logistics requirements.
Key Features & Advantages
  • Precise temperature control for optimal cargo freshness
  • Excellent thermal insulation for energy efficiency
  • Reliable SHACMAN chassis with powerful performance
  • Intelligent management system for full traceability
  • Ergonomic design for enhanced driving comfort
Technical Specifications
Total Vehicle Specifications
Overall Dimensions 6000 × 2350 × 3650 mm
Cargo Van Box Size 9100 × 2550 × 3910 mm
Maximum Speed 90 km/h
Color & Logo Customizable to customer requirements
Chassis Specifications
Driving Style Left or right hand drive available
Driving Type 4×2, 6×4, 8×4 configurations
Engine WEICHAI WP6.210E32, 210HP/154KW
Frame 870 × 250 (7+4) mm
Wheelbase 3600 mm
Vehicle Speed Ratio 10T single-stage bridge 5.125
Emission Standard EURO 3
Suspension Front and rear multi-leaf springs
Cab SHACMAN single row cab, 3 seats
Refrigerator Van Box Specifications
Body Size 3800 × 2400 × 2500 mm
Load Capacity 10-12 tons
Front/Side/Rear Panel Fiberglass sandwich polyurethane
Insulation Layer Thickness 8 mm
Lifting Device Material Q235 High strength steel
Rear Door Type Full size double opening rear door
Flooring Anti-skid wear-resistant patterned aluminum plate
Refrigeration Unit Imported Carrier D6
Refrigeration Temperature Range -5°C to 15°C
Product Images
4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 2 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 3 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 4 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 5 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 6 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 7
Company Profile
4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 8
Henan Senyao Heavy Truck International Trade Co., Ltd. specializes in the export integration of Shaanxi Automobile Heavy Truck, special vehicles, and construction machinery. As a global export authorization enterprise of Shaanxi Automobile Heavy Truck, we maintain a strategic policy of "mutual benefit, honesty and win-win" while building an extensive sales network across Central Asia, Africa, and Central/South America.
With an annual export capacity exceeding 3,000 units, Senyao's product quality and service have earned recognition from domestic and international customers. Our military-grade quality standards and professional export expertise ensure reliable partnerships and long-term cooperation.
4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 9 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 10 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 11 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 12 4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 13
Packaging & Shipping
4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 14
  • Professional export packaging: Weather-proof and secure protection
  • Multiple shipping methods: RORO, container, or bulk vessel options
  • Worldwide delivery: Experience shipping to 50+ countries
  • Documentation support: Complete export documentation provided
Purchase Guidance
4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 15
Step 1: Define Your Requirements
Goods Transportation Requirements
  • Type of Goods: Frozen (-18°C or below), refrigerated (0°C-8°C), or fresh produce (0°C-15°C)
  • Value & Temperature Sensitivity: High-value goods or extreme temperature sensitivity determines refrigeration unit performance and insulation requirements
Transport Scale & Frequency
  • Single Load Capacity: Determines chassis and cargo box size requirements
  • Transport Distance & Frequency: Affects chassis power, unit endurance, and reliability needs
Chassis & Licensing Requirements
  • License Plate Type: Blue plate (easier urban access) or Yellow plate (higher capacity)
  • Road Conditions: Urban streets, suburbs, or highways determine power and dimension requirements
Budget Considerations
Budget determines choice between domestic, joint-venture, or imported refrigeration units and body material grades.
Step 2: Confirm Refrigerated Truck Details
A. Refrigeration Unit Selection
  • Unit Type: Independent (own engine) for stable long-term operation vs. Non-independent (vehicle-powered) for cost efficiency
  • Brand Options: Imported (Thermo King, Carrier, Mahle) or domestic (KingSnow, Songhan) brands
  • Cooling Capacity & Temperature Range: Ensure unit capability exceeds actual requirements
  • Control Systems: Digital temperature control with remote monitoring capabilities
B. Insulated Cargo Body Specifications
  • Body Material: Polyurethane integral foam for optimal insulation
  • Skin Materials: FRP (cost-effective), stainless steel (corrosion-resistant), or aluminum alloy (lightweight)
  • Insulation Thickness: 80mm, 100mm, or 120mm based on temperature requirements
  • Sealing & Details: Door frame structure, seal materials, and floor drainage systems
C. Truck Chassis Requirements
  • Chassis Brand & Model: SHACMAN, Foton, Dongfeng, Jiefang, Sinotruk options
  • Engine & Emissions: Horsepower and compliance with emission standards
  • Chassis Stability: Reinforced chassis for heavy refrigerated bodies
D. Pricing & Service Considerations
  • Price Breakdown: Ensure quote includes chassis, unit, body, installation, and taxes
  • After-Sales Service: Separate warranty periods and service network coverage
Frequently Asked Questions
4*2 Cargo Van Refrigeration System Vegetable Transport Truck Refrigerated Pickup Vehicle Body Door for Deep Frozen Applications 16
Q1: How do I choose the right size refrigerator truck and refrigeration unit?
A: Body size depends on daily freight volume and legal limits. Choose a refrigeration unit one level more powerful than minimum requirements, considering temperature range, body size, insulation performance, door opening frequency, and ambient temperatures.
Q2: How can I ensure my goods maintain correct temperature throughout the trip?
A: Pre-cool the empty truck before loading, ensure proper airflow around cargo, minimize door opening time, and use temperature loggers to monitor the entire journey for liability clarification.
Q3: Do you provide operator and maintenance training?
A: Yes, we provide detailed operation manuals and can arrange training sessions at the manufacturing site or through video materials. On-site training for overseas projects is available upon request.
Q4: What are the warranty terms for the refrigerated truck?
A: Standard warranty is 12 months from shipment or arrival date, covering material and workmanship defects under normal use. Specific terms are detailed in the sales contract.
Q5: Can the truck be customized for specific needs?
A: Absolutely. We specialize in customization including cargo capacity, color, logo, and specific equipment compartments based on customer requirements.
Q6: What about spare parts supply?
A: We maintain reliable SHACMAN chassis parts supply chains and work with OEMs for refrigeration system components. We also assist in identifying local parts suppliers where possible.
Q7: Which payment terms do you accept?
A: We accept T/T (30% advance, 70% before shipment), L/C (100% irrevocable from recognized banks), VISA, and PayPal. Payment terms can be discussed with your sales manager.
