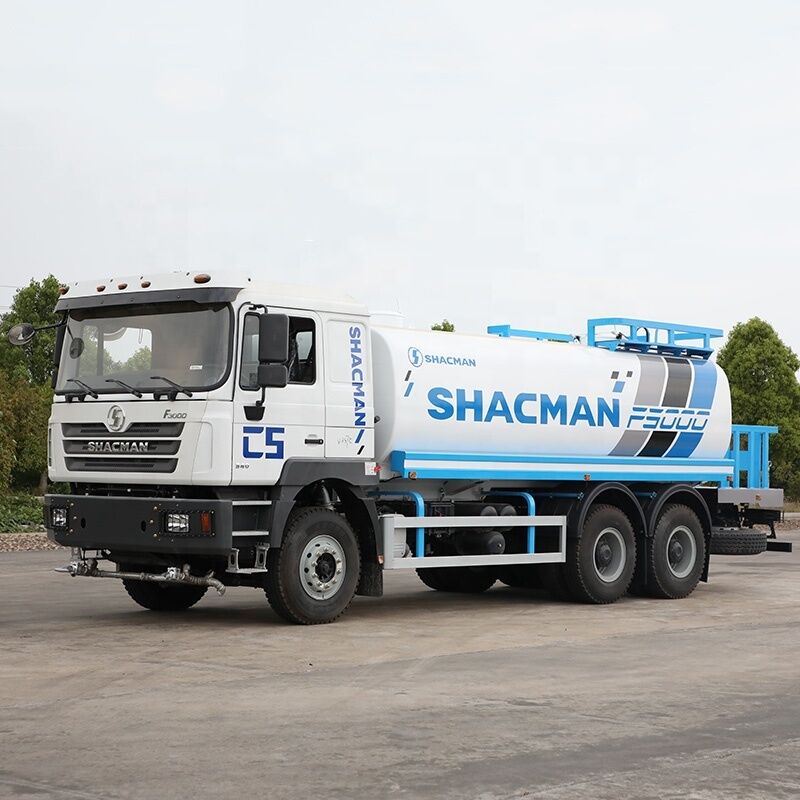

Shacman F3000 6*4 Water Tank Truck 18-20M³ Drinking Water Sprinkler Water Drilling Truck 340Hp
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Storage: | Water Tank | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Core Components: | Engine, Gearbox, Pressure Vessel |
| Drive Wheel: | 6X4 | Fuel: | Diesel |
| Transmission Type: | Manual | Sprinkling Area (m): | > 16 M |
| Emission Standard: | Euro 2 | Engine Capacity: | > 8L |
| Dimensions (L x W x H) (mm): | 8200x2500x3500mm | Gross Vehicle Weight: | 80000 |
| Warranty: | 1 Year | Weight (KG): | 50000 Kg |
| Product name: | Shacman F3000 6*4 Water Tank Truck 18-20M³ Drinking Water Sprinkler | Transmission: | RTD11509C+QH50PTO, Manual, 9F/1R |
| Vehicle Speed Ratio: | 13T HD Double Reduction Axle 4.8 | Frame: | 850x270 (8+4)mm |
| Wheel Base: | 4300+1400mmmm | Epipodium: | HD 7.5T |
| Suspension: | Multiple Springs Before And After | Fuel tank: | 380L |
| Maximum Speed: | 90km/h | Color: | Customer's Request |
| High Light: | Shacman F3000 water tank truck,6x4 drinking water sprinkler truck,340HP water drilling truck |
||
Product Description
Shacman F3000 6×4 Water Tank Truck
18-20M³ Drinking Water Sprinkler & Water Drilling Truck with 340HP
SHACMAN H3000 Series Water Sprinkler Trucks
The sprinkler truck, also known as a multi-functional sprinkler truck, is designed for road cleaning, environmental moisturizing, greening maintenance, and emergency operations. Widely used in municipal sanitation, highway maintenance, landscaping, mining plants, and other scenarios.
Available Water Sprinkler Truck Options
- Chassis Brands: SHACMAN, Dongfeng, Jiefang, Chengli, JAC, Sinotruk
- Driving Types: 4×2, 6×4, 8×4
- Vehicle Types: Spraying, flushing, spray-and-flush combination
- Applications: Ordinary sprinkler, greening sprinkler, multi-function/dust suppression, high-pressure cleaning, truck-mounted sprinkler, water tanker, emergency fire sprinkler
- Water Tank Capacity: 3-8m³, 10-12m³, 13-15m³, 18-20m³, 20m³+
Technical Specifications
| Chassis System | |
|---|---|
| Truck Brand | SHACMAN F3000 Series |
| Driving Type | 6×4 (also available: 4×2, 8×4) |
| Driver Position | Left/right drive, Right hand drive |
| Wheelbase | 4300+1400mm |
| Max. Speed | 90km/h |
| Engine Brand | WEICHAI |
| Engine Model | WP10.300E22, WP10.340E22 |
| Horsepower | 300HP/220kW, 340HP/250kW |
| Emission Standard | EURO II |
| Front/Rear Axle | HANDE |
| Frame | 850×300(8+5)mm |
| Suspension | Front and rear multi-leaf spring |
| Fuel Tank | 380L Aluminum alloy |
| Tire | 12R22.5, 12.00R20 |
| Tank System | |
| Tank Volume | 20m³ |
| Tank Body Shape | Circular |
| Tank Material | 5mm carbon steel |
| Water Addition Method | Self suction/fire water supply/tank top |
| Sprinkler System | |
| Control Mode | Automatic control |
| Pipeline Diameter | Main pipeline 80mm, Auxiliary pipeline 50mm |
| Spraying Device | Forward flushing, Hedging, Rear sprinkler, Side spray, Green anti-aircraft gun |
| Max. Watering Width | ≥30m |
| Max. Water Cannon Height | ≥35m |
| Max. Water Absorption Height | ≥10m |
Available Models
L3000 4×2 Water Sprinkler Truck
X3000 6×4 Water Sprinkler Truck
F3000 6×4 Water Sprinkler Truck
About Henan Senyao Heavy Truck
Henan Senyao Heavy Truck International Trade Co., Ltd. specializes in the export integration of Shaanxi Automobile Heavy Truck, special vehicles, and construction machinery. As a global export authorization enterprise of Shaanxi Automobile Heavy Truck, we maintain a strategic policy of "mutual benefit, honesty and win-win" and have built an extensive sales network across Central Asia, Africa, and Central/South America.
With an annual export capacity exceeding 3,000 units, Senyao's product quality and service have earned recognition from customers worldwide. We offer military-grade quality and professional export services, looking forward to establishing long-term partnerships.
Shipping & Export Services
- Professional Export Packaging: Weather-proof and secure packaging
- Multiple Shipping Methods: RORO, container, or bulk vessel options
- Worldwide Delivery: Experience shipping to 50+ countries
- Documentation Support: Complete export documentation provided
Frequently Asked Questions
What size sprinkler truck should I choose?
3-8 tons: Small water sprinkler trucks with high maneuverability, ideal for residential areas, factory zones, small parks, and narrow streets.
8-15 tons: Medium-sized trucks offering optimal cost-effectiveness, suitable for most urban roads and landscaping operations.
15-20 tons+: Large trucks for long-distance highway maintenance, large industrial parks, mining areas, and extended operations.
8-15 tons: Medium-sized trucks offering optimal cost-effectiveness, suitable for most urban roads and landscaping operations.
15-20 tons+: Large trucks for long-distance highway maintenance, large industrial parks, mining areas, and extended operations.
Can a sprinkler truck only be used for sprinkling water?
No, these multi-functional vehicles also perform road washing, greening irrigation, emergency dust suppression, and some models can be equipped with spray devices for air purification or cooling.
Can the working range be adjusted?
Yes. Most sprinkler trucks feature adjustable nozzles that can control sprinkling on one side, both sides, or specific areas. Water flow intensity can also be adjusted for different scenarios.
How much water can a sprinkler truck hold and cover?
Conventional models hold 5-20 tons (customizable). Filling time depends on water source pressure (typically 30-60 minutes). A 10-ton truck operating at low speed (5-8 km/h) can cover 2-3 kilometers of road per load.
Is the vehicle complicated to operate?
Very simple. All mainstream water trucks feature electronic controls inside the cab for operating water pumps, selecting spray modes, and adjusting water cannons without exiting the vehicle.
What about after-sales service and warranty?
Chassis components follow the manufacturer's national warranty policy. The superstructure (water tank, water pump, piping system) receives an independent warranty service (typically 1-2 years).
Step 1: Define Your Needs
Primary Purpose
- Urban road sprinkling for dust control
- Garden and green space irrigation
- Auxiliary emergency firefighting
- Dust control at construction sites
- Highway cleaning
Tank Capacity Requirements
Estimate based on operating distance and area. Larger capacity means longer operating time but larger vehicle size and higher cost. Common capacities range from 5-20 tons.
Road Conditions
Consider urban asphalt roads (requiring specific dimensions and emission standards) or unpaved construction/mining roads (requiring engineering chassis with off-road capability).
Budget Range
Prices range from over 100,000 RMB to several hundred thousand RMB depending on chassis brand, tank capacity, and functional configuration.
Water Source
Determine if water will be drawn from hydrants or rivers/ponds, as this affects the required suction head of the water pump.
Step 2: Key Questions for Suppliers
Chassis and Powertrain
- Chassis brand and model: SHACMAN and other mainstream brands available
- Engine horsepower and emission standards: 160-200+ HP options with Euro II, III, and V standards
- Wheelbase: Affects vehicle stability and tank size
Superstructure (Tank & Spraying System)
- Tank capacity and material: Confirm effective volume and material (carbon steel or stainless steel)
- Water pump specifications: Brand, model, and flow rate affecting pumping/sprinkling efficiency
- Performance metrics: Suction head and sprinkling width capabilities
- Standard spraying functions: Front flush, rear sprinkle, side spray, high-pressure water cannon
- Practical configurations: Green hose reel, fire-fighting interface, cab control location
