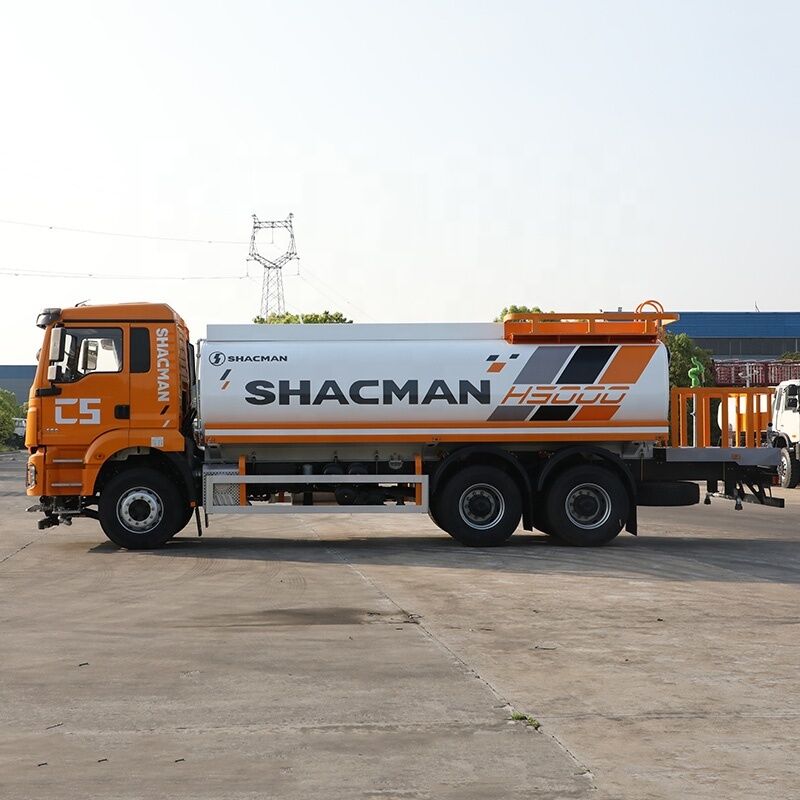

Heavy Duty Urban Road Watering Truck 6X4 20000 Liters Water Spraying Tanker

Name: Heavy Duty Urban Road Watering Truck 6X4 20000 Liters Water Spraying Tanker
Brand: Henan Senyao Heavy Truck International Trade Co., Ltd.
Availability: InStock

Brand Name:	SHACMAN
MOQ:	1
Price:	Negotiable
Delivery Time:	35-55days

Detail Information

Product Description

Detail Information

Place of Origin:

SHAANXI,XIAN

Storage:

Water Tank

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Engine, Gearbox, PLC, Bearing, Motor, Pressure Vessel, Gear

Drive Wheel:

6X4

Fuel:

Diesel

Transmission Type:

Manual

Sprinkling Area (m):

> 16 M

Emission Standard:

Euro 2

Engine Capacity:

> 8L

Dimensions (L X W X H) (mm):

8200x2500x3500mm

Gross Vehicle Weight:

30000

Warranty:

1 Year

Weight (KG):

20000 Kg

Engine:

WEICHAI, WP10.340E22, WP10.400E22

Horsepower:

340Hp,400 Hp

Vehicle Speed Ratio:

13T HD Dual-stage 5.262

Wheelbase:

4375+1400mm

Frame:

850x300(8+5)mm

Suspension:

Front And Rear Multi-leaf Spring, Two Main Plates + Two Horse Bolts

Tyre:

12.00R20, 12R22.5

Economy Speed/Maximum Speed:

50~70/90km/h

Maximum Width Of Watering:

≥30m

Control Mode:

Automatic Control

Highlight:

Heavy Duty Water Spraying Tanker

20000 Liters Water Spraying Tanker

Urban Road Watering Truck

Product Description

SHACMAN H3000 Series Water Sprinkler Trucks

The sprinkler truck, also known as a multi-functional sprinkler truck, is a special vehicle designed for road cleaning, environmental moisturizing, greening maintenance, and emergency operations. It is widely used in municipal sanitation, highway maintenance, landscaping, mining plants, and other scenarios. Its core function is to store, transport, and spray water in a targeted manner through an on-board system to improve the public environment or respond to emergencies. Shacman sprinkler trucks are divided into H3000, L3000, F3000 and X3000 series. Choose from a range of engine options, all offering impressive horsepower(from 210hp to 520hp) to conquer even the steepest inclines and haul the heaviest loads with ease. What Kind of Water Sprinkler Trucks Do We Have? 1. Chassis Brand: Our brand SHACMAN. We also offer models from Dongfeng, Jiefang, Chengli, JAC, and Sinotruk. 2. Driving type: 4x2, 6x4, 8x4. 3. Type: Spraying, flushing, spray-and-flush. 4. Applications: Ordinary sprinkler truck, greening sprinkler truck, multi-function sprinkler truck/dust suppression truck, high-pressure cleaning sprinkler truck, truck-mounted sprinkler truck, water tanker sprinkler truck, emergency fire sprinkler truck. 5. Water Tank Capacity: 3-8m³, 10-12m³, 13-15m³, 18-20m³, and over 20m³.

Truck Brand	SHACMAN H3000 Series Water Sprinkler Trucks
Chassis System	Driving Type	6x4, we also have 4x2, 8x4
		Driver Position	Driver Position
		Wheelbase	4375+1400mm
		Max. Speed	80km/h
		Engine Brand	WEICHAI
		Engine Model	WP10.340E22, WP10.400E22
		Horsepower	340Hp/250kw, 400Hp/294kw
		Emission Standard	EURO II
		Front/Rear Axle	HANDE
		Frame	850x300(8+5)mm
		Suspension	Front and rear multi-leaf spring, two main plates+ two horse bolts
		Fuel Tank	300L/400L Aluminum alloy
		Tire	12R22.5, 12.00R20
Tank System	Tank Volume	20m³
		Tank Body Shape	Circular
		Tank Material	5mm(carbon steel)
		Water Addition Method	Self suction/fire water supply/tank top
		Tank Body and Mouth	Automatic control activation
Sprinkler System	Control Mode	Automatic control
		Pipeline Diameter	Main pipeline 80mm, Auxiliary pipeline 50mm
		Spraying Device (Nozzle)	Forward flushing, Hedging, Rear sprinkler, Side spray, Green anti-aircraft gun
		Max. Width of Watering	≥30m
		Max. Height of Water Cannon	≥35m
		Max. Water Absorption Height	≥10m

L3000 4x2 Water Sprinkler Truck

X3000 6x4 Water Sprinkler Truck

F3000 6x4 Water Sprinkler Truck

Henan Senyao Heavy Truck International Trade Co., Ltd. is mainly engaged in the export integration of Shaanxi Automobile Heavy Truck, special vehicles and construction machinery, and is a global export authorization enterprise of Shaanxi Automobile Heavy Truck. We always adhere to the strategic policy of "mutual benefit, honesty and win-win", and build a huge sales network in Central Asia, Africa, Central and South America with excellent brand advantages and our own perfect procurement and supply system. With an annual export capacity of more than 3,000 sets, Senyao's product quality and service have been well received by customers at home and abroad. Military quality, professional export, looking forward to long-term cooperation with you!

1.Professional export packaging: Weather-proof and secure. 2.Multiple shipping methods: RORO, container, or bulk vessel. 3. Worldwide deliver: Experience in shipping to 50+ countries. 4. Documentation support: Complete export documentation provided.

Q1: Q1: What size sprinkler truck should I choose? A: (1) 3-8 tons: Small water sprinkler trucks with a short length (5-6 meters) and high maneuverability. They are suitable for residential areas, factory areas, small parks, and short, narrow street operations. (2) 8-15 tons: Medium-sized water sprinkler trucks with a length of 7-9 meters are the most commonly used and offer a high cost-effectiveness. They are suitable for most urban roads, suburban highways, and landscaping operations. (3) 15-20 tons and above: Large water sprinkler trucks with a length of 10-12 meters are suitable for long-distance highway maintenance, large industrial parks, mining areas, and factory areas, and long-distance operations on suburban roads. Q2: Can a sprinkler truck only be used for sprinkling water? Are there other uses? A: No, it has more functions. It can also be used for road washing (to clean oil stains and dust), greening irrigation (to water trees and flowers), emergency dust suppression (e.g., at construction sites and mining areas). Some models can be equipped with spray devices for air purification or cooling. Q3: Can the working range of a sprinkler truck be adjusted? For example, can it only sprinkle water on one side of the road? A: Yes. Most sprinkler trucks are equipped with adjustable nozzles. The sprinkling on one side, both sides, or specific areas can be controlled by operating valves. The water flow intensity (e.g., drizzle-like or column-like) can also be adjusted to suit different scenarios. Q4: How much water can a sprinkler truck hold at one time? How long does it take to fill up with water, and how much road can it cover with one load? A: The water tank capacity of conventional models ranges from 5 to 20 tons (customizable). The time to fill up with water depends on the water source pressure; it takes about 30 minutes to 1 hour with an ordinary tap water faucet. Taking a 10-ton truck as an example, when operating at a low speed (5-8 km/h), it can cover 2-3 kilometers of road (one side) with one load of water. Q5: Is the vehicle complicated to operate? A: Very simple. The operation of all mainstream water trucks (controlling the water pump, selecting spray modes, adjusting the water cannon) can now be done via electronic controls inside the cab, without needing to get out. It's safe and efficient. Q6: What about after-sales service and warranty? A: This is our core service: The chassis part (the truck cab) follows the chassis manufacturer's national warranty policy. The superstructure part (water tank, water pump, piping system) we provide an independent warranty service (usually 1-2 years).

Step 1: Define Your Needs

1. What is the primary purpose? (This is the most critical question) (1)Urban road sprinkling for dust control: Requires various spraying modes like front flushing, rear sprinkling, side spraying, with requirements for flushing width and flow rate. (2)Garden and green space irrigation: Requires a rear water cannon (adjustable to jet or mist), side sprinklers, and may need an optional green hose reel and pesticide spray equipment. (3)Auxiliary emergency firefighting: Requires a water cannon with long range and high pressure, and may need fire-fighting interfaces. (4)Dust control at construction sites: Rough road conditions require good vehicle passability and high corrosion resistance for the tank. (5)Highway cleaning: Requires high-pressure front flushing to effectively remove road sludge. 2. What tank capacity is needed? (1)Estimate based on operating distance and area. Larger capacity means longer operating time per fill, but also larger vehicle size and higher cost. Common capacities range from 5 to 20 tons. (2)Choose around 10 tons for circulation operations; 5-8 tons for internal use on construction sites and industrial parks; 15 tons or above truck for long-distance operations or large areas. 3. What are the primary road conditions? (1)Urban asphalt roads: Requirements for vehicle dimensions (must be able to enter service roads), emission standards must be met. (2)Unpaved roads at construction sites, mining areas: Requires an engineering version chassis with strong off-road capability and good passability. 4. What is the budget range? Water truck prices range from over 100,000 RMB to several hundred thousand RMB depending on the chassis brand, tank capacity, and functional configuration.

5. What is the water source? Will water be drawn directly from hydrants, or from rivers/ponds? This determines the required suction head of the water pump.

Step 2: Key Questions for Suppliers

A. About Chassis and Powertrain

1. What is the chassis brand and model? Our brand Shacman chassis. We can supply Dongfeng, Jiefang, Foton, Sinotruk, etc. Choose mainstream brands for wider after-sales service networks and easier maintenance. 2. What engine horsepower is needed? What is the emission standard? Choose based on load and road conditions. 160-200 HP for standard 5-10 ton loads on flat terrain; 200+ HP for heavy loads or mountainous areas. Euro II, Euro III and Euro V emission standards. 3. What is the vehicle's wheelbase? Wheelbase affects vehicle stability and tank size. Short wheelbase offers better maneuverability; long wheelbase offers more stable driving and allows for a larger tank.

B. About the Superstructure (Tank & Spraying System) 1. What is the tank capacity in cubic meters (or tons)? Confirm the effective volume of the water tank, not the theoretical volume calculated from external dimensions. 2. What material is the tank made from? What internal anti-corrosion treatment is applied? (1) Material: Usually high-quality carbon steel or stainless steel. Stainless steel offers better corrosion resistance, longer lifespan, but higher cost; carbon steel requires anti-corrosion treatment (e.g., epoxy asphalt or zinc-based coating) and is lower cost. (2) Anti-corrosion: Must ask about the internal anti-corrosion process, which is crucial for tank lifespan.

3. What is the brand, model, and flow rate of the water pump?

(1) The water pump is a core component, directly affecting water pumping and sprinkling efficiency. Well-known brands are more reliable (e.g., Hangzhou Weilong).

(2) Flow Rate: Measured in (m³/h). A higher flow rate means faster water pumping/sprinkling.

4. What is the suction head and sprinkling width? (1) Suction Head: The maximum vertical height the pump can draw water from (usually ≥7 meters). (2) Sprinkling Width: The width covered by the front flush and rear sprinklers (usually front flush ≥14m, rear sprinkle ≥8m). 5. What spraying functions are included as standard? (1)Front Flush: For washing the road surface. (2)Rear Sprinkle: For evenly wetting the road surface. (3)Side Spray (Sprinkler): For irrigating green belts. (4)High-pressure Water Cannon: For green space irrigation or emergency firefighting. Should be adjustable to jet or mist. (5)Ask for the maximum range (usually ≥35 meters). (6)Self-priming & Self-draining Function: Can it draw water from rivers or ponds without other auxiliary equipment? 6. What practical configurations are included? (1)Is a Green Hose Reel (with pesticide spray gun) equipped? (2)Is a Fire-fighting Interface equipped for quick water intake from hydrants?

(3)Where is the control location? (Operation from inside the cab is mainstream and safer).
