Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

Garbage Compactor Truck 4*2

Right Hand Garbage Compactor Truck

16m3 Compression Refuse Collector

Specifications

Color:	White	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Engine, Gearbox
Drive Wheel:	4X2	Type:	Compactor
Transmission Type:	Manual	Emission Standard:	Euro 2
Fuel Type:	Diesel	Engine Capacity:	>8L
Size:	8250x2500x3250mm	Gross Vehicle Weight:	18000
Warranty:	1 Year	Weight (KG):	8500 Kg
Engine Type:	WEICHAI, 210hp, 240hp, 300hp	Cabin Color:	White, Red, Green, Can Be Customized
Wheelbase:	3600mm, 4000mm, 4375+1400mm, 5000mm	Fuel Tank:	200L Iron/300L Aluminum Alloy
Tire:	10.00R20, 6pcs With One Spare Tire	Max. Driving Speed:	90km/h
Compression Box Volume:	8m³/10m³/12m³/14m³/16m³/20m³	Compression Ratio:	≥2.5
Time of Filling Cycle Once:	≤25s	Unload Garbage Time:	≤45s
High Light:	Garbage Compactor Truck 4*2 , Right Hand Garbage Compactor Truck , 16m3 Compression Refuse Collector

Product Description

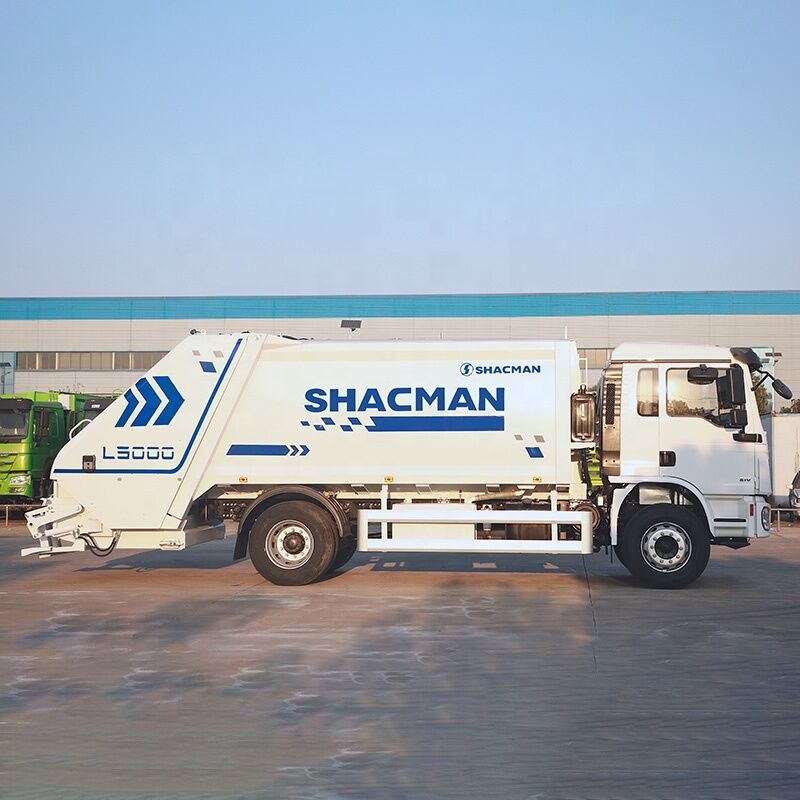

SHACMAN L3000 Series Compressed Garbage Trucks

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 0

Compactor garbage trucks, also known as compressed or compression garbage trucks, are essential vehicles in modern waste management. These specialized trucks efficiently collect, compress, and transport waste materials, significantly enhancing garbage disposal processes.

We provide high-quality SHACMAN compactor garbage trucks designed for municipal sanitation, industrial parks, towns, and scenic spot waste collection and transportation. Utilizing advanced compression technology, they ensure efficient, environmentally friendly, and reliable operational performance to meet diverse international customer needs.

SHACMAN Compactor Garbage Truck Advantages

High Efficiency Compression
Environmentally Friendly & Leakage-free
Automated Operation
Economical & Durable
Multi-scenario Application

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 1

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 2

Technical Specifications

Chassis System

Truck Brand	SHACMAN L3000 Series Compressed Garbage Trucks
Steering Style	Left hand drive or right hand drive
Driving Type	4x2
Engine Brand	WEICHAI
Engine Power	210hp, 245hp, 300hp
Emission Standard	EURO 2
Fuel Tank	300L aluminum alloy
Frame	870x250(7+4)mm
Wheelbase	3600mm
Tire	10.00R20, 12.00R20

Upper Part (Compression Bin)

Tank Volume	8m³, 10m³, 12m³, 14m³, 16m³
Compression Box Shape	Curved/square box body
Compression Ratio	≥2.5
Bucket Flipping Type	120/240/660/1100L drum
Flip Option	Triangle bucket/Full floor bucket/Swing arm device
Bucket Flipping Mechanism	Rear tail with bucket flipping mechanism
Effective Volume of Filler	≥1.8m³
Capacity of Sewage Tank	Front sewage tank 300L, Rear sewage tank 500L
Time of Filling Cycle Once	≤25s
Unload Garbage Time	≤45s
Control Mode	Automatic+manual+Wireless remote control
Control System	CAN-BUS bus control

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 3

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 4

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 5

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 6

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 7

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 8

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 9

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 10

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 11

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 12

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 13

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 14

Shipping & Delivery

Export Packaging: Weather-proof covering and secure loading
Shipping Methods: RORO, container, or bulk vessel
Delivery Time: 20-40 days after order confirmation
Documentation support: Complete export documentation provided

Left Right Hand Drive Garbage Compactor Truck 4*2 Drive 16m3 Compression Refuse Collector 15

Frequently Asked Questions

Q1: What is the compression ratio and loading capacity of SHACMAN compactor garbage trucks?

A: SHACMAN compactor trucks typically have a compression ratio higher than 2.5:1, with some models reaching 3.8:1. The effective volume is generally above 6-8 cubic meters (after compression), and the rated load capacity is around 8-10 tons (depending on chassis and design). This means they can hold significantly more waste than ordinary non-compacting garbage trucks.

Q2: Will there be sewage leakage during transportation?

A: Absolutely not. This is a top priority in our design. The truck features a fully sealed body, multiple sealing strips, and a dedicated large-capacity sewage collection tank, ensuring all wastewater generated during compression and transportation is completely contained, effectively eliminating secondary pollution.

Q3: Is the operation complicated? Does it require special training?

A: The operation is very simple. It is primarily controlled via a PLC one-touch control panel located in the cab or at the rear of the truck. The high level of automation means usually only one driver is needed for all operations. We provide detailed operational training upon delivery.

Q4: What customization options are available?

A: We can provide various customizations based on your requirements, including but not limited to: (1) Chassis brand and model (e.g., SHACMAN, Dongfeng, SINOTRUK HOWO, etc.) (2) Power type (Diesel / Pure Electric) (3) Loading method (Hanging bucket, Shovel bucket, Swing arm, etc.) (4) Volume and loading capacity (5) Special options: Weighing system, Remote monitoring, High-pressure cleaning, Air conditioning, Explosion-proof, Special anti-corrosion treatment, Configurations for extreme climates (high temperature, cold, sandstorm).

Q5: What is the warranty policy and after-sales service like?

A: We provide comprehensive warranty and service support. Typically, the whole vehicle or the body part comes with a 1-year or a certain number of operating hours warranty (specific terms need confirmation). We have service networks or partners in multiple regions overseas capable of providing timely after-sales service, technical support, and spare parts supply to ensure your vehicles operate efficiently.
