High Speed Commercial Vacuum Sweeper Truck Industrial Dustless Suction Washer Truck

Brand Name:	SHACMAN
MOQ:	1
Price:	Negotiable
Delivery Time:	35-55days

Detail Information

Product Description

Detail Information

Place of Origin:

SHAANXI,XIAN

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Engine, Pump, Gearbox

Dimension(L*W*H):

9960x2600x2900mm

Weight:

9200 Kg

Warranty:

1 Year

Drive Type:

4X2/4X4/6X4, Left Hand Drive Or Right Hand Drive

Fuel Type:

Diesel

Engine:

WEICHAI, 240hp

Water Tank Volume:

1- 4m3

Cleaning Speed:

15-30km/h

Sweeper Brush:

2pcs

Max.Sweeping Capacity:

54000m2/h

Loading And Unloading Method:

Automatic Unloading By Hydraulic Cylinder

Maximum Speed:

110km/h

Service:

OEM & ODM Service

Highlight:

Commercial Vacuum Sweeper Truck

High Speed Vacuum Sweeper Truck

Dustless Suction Washer Truck

Product Description

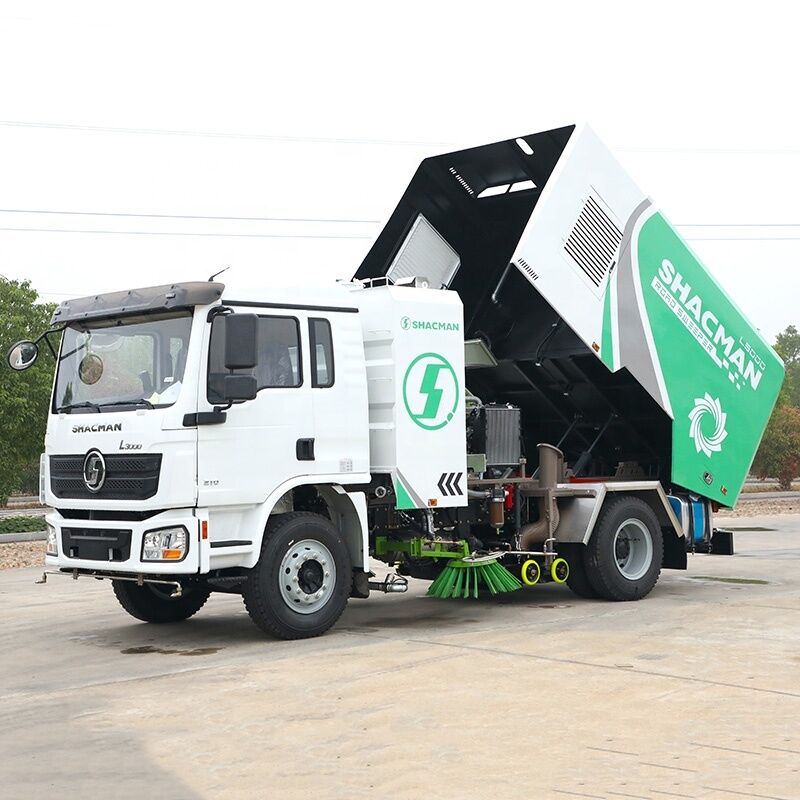

SHACMAN L3000 Series Road Sweeper Trucks

The sweeper truck, also known as a vacuum sweeper or washing-sweeping truck, is a high-efficiency, specialized sanitation vehicle that integrates multiple functions such as road sweeping, garbage collection, high-pressure washing, and sewage recovery.

SHACMAN road sweeper trucks Available in both 4x2, 6x4 and 8x4 configurations, the Shacman road sweeper trucks provide superior traction and stability for any terrain. Shacman sweeper trucks, with "heavy truck quality" at its core, provides an efficient, reliable, and economical urban cleaning solution.

Advantages of SHACMAN Sweeper Trucks

1. Robust, Durable & Powerful: With a robust chassis and reliable engine, it is particularly suitable for high-intensity, long-term operations.

2. Highly Efficient & Versatile: Integrates sweeping, washing, and vacuuming, has high cleaning efficiency, produces no dust, and can flexibly switch between multiple operating modes to adapt to different road conditions.

3. Excellent Environmental Adaptability: Due to excellent chassis and power system, it can operate stably and has a high uptime, regardless of whether it is in extreme cold, extreme heat or complex road conditions.

4. Eco-Friendly & Cost-Effective: They deliver superior cleaning results with low water consumption and feature excellent fuel economy, effectively reducing overall operating costs.

5. Intelligent & User-Friendly: Equipped with smart control systems for easy operation and simplified troubleshooting, while also prioritizing operator comfort.

Truck Brand	SHACMAN L3000 Series Road Sweeper Trucks
Driving Style	Left hand drive or right hand drive
Driving Type	4x2	6x4	8x4
Wheelbase	5000mm	5575+1400mm	1800+4575+1400mm
Max. Speed	90km/h
Fuel Type	Diesel
Engine Model	WEICHAI	WEICHAI	WEICHAI
Power	240HP	340HP	380HP
Emission Standard	EURO II/V	EURO II	EURO II
Transmission	FAST
Front/Rear Axle	HANDE
Clutch	430 diaphragm clutch
Steering	ZF technology
Frame	870x250(7+4)mm	850x300(8+5)mm	850x300(8+5)mm
Fuel tank	200L Iron	400L Aluminum alloy	400L Aluminum alloy
Tires	10.00R20	12.00R20	12.00R20
Brakes	Running brake: Dual circuit compressed air brake Parking brake: Air discharging with spring control Auxiliary brake: Engine exhaust brake
Cabin	Medium-length flat top cab(Optional)

1. Export Packaging: Weather-proof covering and secure loading. 2. Shipping Methods: RORO, container, or bulk vessel. 3. Delivery Time: 20-40 days after order confirmation. 4. Documentation support: Complete export documentation provided.

Q1: What is the warranty period for SHACMAN road sweeper trucks? A: We offer 12 months(30,000km which comes first ) for our road sweeper trucks. Q2: Can you provide right-hand drive versions? A: Yes, we can supply both left-hand and right-hand drive configurations. Q3: What is the cleaning efficiency of a sweeper washer? How much area can it clean per hour? A: Ordinary small and medium-sized sweeper washers (working width 2.5-3 meters) can clean about 8,000-12,000 square meters per hour; large sweeper washers (working width 3.5-4 meters) can reach 15,000-20,000 square meters per hour. The specific efficiency is affected by the degree of ground stains and driving speed. Q4: What are the capacities of the water tank and garbage compartment of a sweeper washer? Do they need to be refilled with water or emptied of garbage frequently? A: Small and medium-sized sweeper washers have a water tank capacity of about 800-1,500 liters and a garbage compartment capacity of 5-8 cubic meters; large ones have a water tank capacity of 2,000-3,000 liters and a garbage compartment capacity of 10-12 cubic meters. Under normal road cleaning conditions, small and medium-sized vehicles can work continuously for 3-4 hours, and large vehicles for 5-6 hours, without frequent water refilling or garbage emptying. Q5: Do you provide operator training? A: Yes, we provide comprehensive operation and maintenance training. Q6: What payment terms do you accept? A: We accept T/T, L/C, and other flexible payment methods. Q7: What's the delivery time for bulk orders? A: For orders of 10+ units, delivery time is 45-60 days. Q8: What documents are provided for customs clearance? A: We supply commercial invoices, packing lists, certificates of origin, and compliance documents (e.g., EUR compliance).

Step 1: Define Your Operational Needs

Before contacting suppliers, please think carefully about the following questions. Your answers will be the fundamental basis for choosing the sweeper washer.

1. What is the primary operating environment? Is it for urban arterial roads, highways, municipal squares, industrial parks, mining areas, airports, or narrow streets? Different environments require different vehicle sizes, power, cleaning efficiency, and maneuverability. 2. What types of pollutants need to be handled? Mainly ordinary dust, sand, leaves, or does it include sticky stains (like grease, gum), construction waste, metal scraps? This determines the required sweeping and flushing systems (e.g., whether high-pressure hot water cleaning is needed). 3. What are the efficiency and endurance requirements? (1) Working Area & Duration: What area needs to be covered in a single operation? How many consecutive hours of work are needed daily? This determines the required Water Tank Capacity and Hopper/Garbage Tank Capacity. (2) Operating Speed: At what speed does effective cleaning need to occur? (e.g., Highways require high-speed cleaning capability, while urban areas focus more on cleaning quality at lower speeds). 4. What are the requirements for the chassis and regulations? (1) Emission Standards: Does it need to comply with specific standards like China VI (GB6)? (2) Budget Range: The budget determines whether you can choose domestic or imported upfitting systems and chassis brands.

Step 2: Key Questions to Ask Your Supplier

With the answers from Step 1, you can ask suppliers the following professional questions:

A. About Performance & Configuration (Core Upfitting Systems) 1. Sweeping System: (1) What type of sweeping brushes are used? Is it 'Four Side Brooms + Suction Nozzle' or 'Side Brooms + Main Roller Brush'? The former is most common; the latter is better for sand, mud, snow. (2) Can the brooms and suction nozzle automatically avoid obstacles? What is their material? (e.g., steel wire, polypropylene, offering different wear resistance. (3) What is the maximum sweeping width? Can the broom pressure be adjusted? To adapt to different road surfaces. 2. Washing/Flushing System: (1) What is the water tank capacity? What is the garbage tank capacity? The ratio determines continuous operation time, e.g., 8m³ water & 6m³ hopper is common. (2) What is the pressure and flow rate of the high-pressure water pump? Pressure determines cleaning power, flow rate determines coverage speed. (3) What spray bars are included? Does it have functions like front flushing, rear spraying, side spraying, and misting for dust suppression? (4) Is a high-pressure hot water cleaning function needed? Essential for grease, but higher cost and energy consumption. 3. Suction & Dust Control System: (1) What type of fan is it? What is its air volume and pressure? This is the core of suction power. (2) What dust control technology is used? Gravity settling, inertial separation, or more efficient Venturi wet dust extraction or filter cartridge dust removal? Dust control directly affects exhaust air quality, preventing secondary pollution. 4. Garbage Disposal & Operation: (1) What is the hopper dumping method? e.g., forward tipping, rear lift. (2) What is the control method? Manual control, electro-hydraulic control, or smart one-touch operation? (3) Does it have an intelligent CAN bus fault diagnosis system? Helps troubleshoot issues quickly.

B. About the Truck Chassis (Vehicle Foundation)

1. Chassis Brand & Model: What is the brand and model of the chassis? e.g., SHACMAN, Dongfeng, Foton, Jiefang, etc. Reliable brands are key. 2. Engine & Power Take-Off (PTO): (1) Is the engine horsepower sufficient to power both the vehicle and the upfitting systems simultaneously? (2) Is the PTO side-mounted or rear-mounted? What brand is it? The PTO is the power source for the upfit; its reliability is crucial.

C. About Price & Service

1. Price Breakdown:

Does the quoted price include the chassis, upfitting systems, taxes, delivery, and commissioning fees?

2. After-Sales Service & Warranty:

(1) What are the separate warranty periods for the chassis and the specialized upfitting systems?

(2) What does the warranty cover?

(3) What is the warranty policy for core components (fan, water pump, hydraulic system)?

(4) Where are your service locations? Can you provide timely technical support and spare parts supply in case of a breakdown?
