| Brand Name: | SHACMAN |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 35-55days |

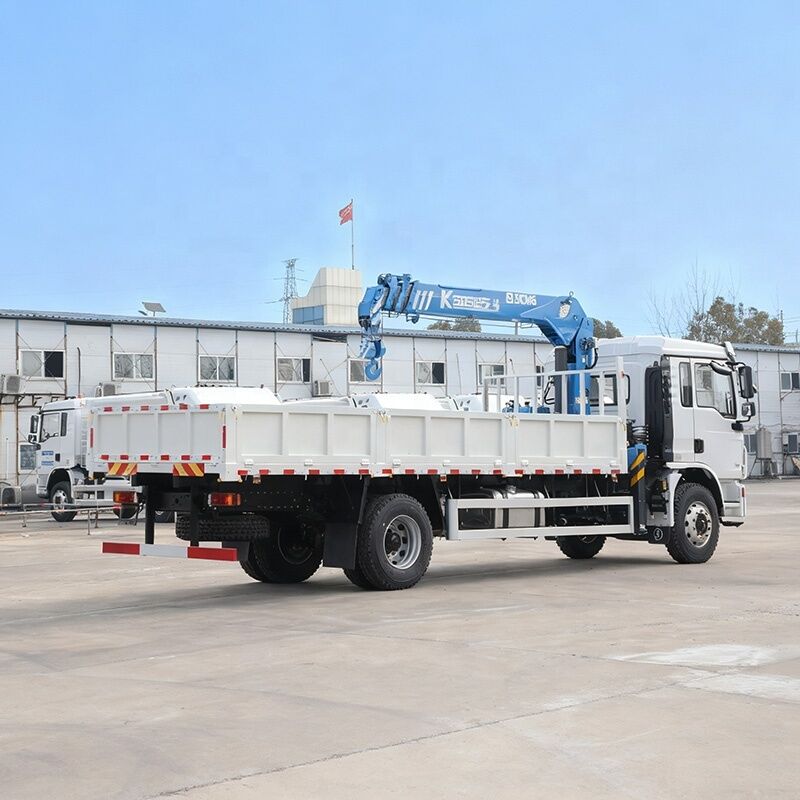

Crane Truck Product Overview
A crane truck, commonly known as a truck-mounted crane or lorry loader, is a specialized commercial vehicle designed for integrated transport and lifting operations. Equipped with a hydraulic lifting and telescoping system, it efficiently handles loading, rotating, and transporting of heavy cargo. Combining mobility with multifunctional performance, crane trucks are widely utilized in construction sites, warehousing and logistics, ports and terminals, emergency repair operations, and heavy equipment relocation.
SHACMAN Crane Truck Series
We supply a range of crane trucks built on reliable SHACMAN heavy-duty chassis, available in the following main series:
H3000 Series
L3000 Series
F3000 Series
X3000 Series
Each series offers multiple engine options with power outputs ranging from 210 HP to 520 HP, ensuring strong performance across challenging terrains and under heavy loads.
Customizable Configuration Options
Chassis Brand
Primary brand: SHACMAN
Other available brands (upon request): Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, BEIBEN, JAC, JMC, etc.
Drive Configuration
4×2, 4×4, 6×4, 6×6, 8×4
Emission Standards
Euro II, Euro III, Euro V, Euro VI
Crane Brands
Leading manufacturers such as XCMG, SANY, Palfinger, UNIC, and others
Lifting Capacity
Available from 2 to 20 tons, including: 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 18T, 20T, and more
Crane Arm Type
Straight Arm: Simple structure, cost-effective, suitable for standard lifting tasks
Folding Arm (Knuckle Boom): Compact design, flexible operation, generally priced higher for equivalent capacity
Cargo Box Dimensions
Fully customizable according to customer requirements, with professional recommendations from our technical team
Our Advantages
Optimized integration of SHACMAN chassis with premium domestic and international mounted systems
End-to-end customization service, from configuration selection to delivery
Professional technical consultation and after-sales support
For detailed configuration options or a customized quotation, please contact our team for dedicated assistance.
|
Max. Lifting Weight
|
5000kg
|
6300kg
|
7000kg
|
10000kg
|
12000kg
|
16000kg
|
18000kg
|
20000kg
|
|
Max. Lifting Torque
|
12.5kN·m
|
157.5kN·m
|
175kN·m
|
260kN·m
|
300kN·m
|
430kN·m
|
470kN·m
|
500kN·m
|
|
Max. Working Radius
|
11.2m
|
13.04m
|
13.5m
|
18.6m
|
14.5m
|
21.77m
|
22.41m
|
23.7m
|
|
Luffing Range
|
0°~78°
|
0°~75°
|
0°~75°
|
0°~75°
|
0°~75°
|
0°~75°
|
0°~75°
|
0°~75°
|
|
Slewing Angle
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
|
Outrigger Span
|
2150~5100m
|
2280~5500mm
|
2430~5650mm
|
2497~7605mm
|
2310~5700mm
|
2440~8400m
|
2436~8396mm
|
2436~8396mm
|
|
Installation Space
|
700mm
|
900mm
|
1100mm
|
1200mm
|
1300mm
|
1340mm
|
1340mm
|
1400mm
|
|
Max. Operating Pressure
|
22MPa
|
22MPa
|
23MPa
|
26MPa
|
26MPa
|
28MPa
|
28MPa
|
28MPa
|
|
Oil Flow Volume
|
63L/min
|
63L/min
|
63L/min
|
63+50L/min
|
63+40L/min
|
80+50L/min
|
80+50L/min
|
80+50L/min
|
|
Oil Tank Capacity
|
90L
|
90L
|
90L
|
200L
|
240L
|
240L
|
240L
|
270L
|
|
Crane Weight
|
2200kg
|
2420kg
|
2330kg
|
3693kg
|
4300kg
|
6880kg
|
6970kg
|
7600kg
|
Henan Senyao Heavy Truck International Trade Co., Ltd. operates as a globally authorized export enterprise specializing in the integrated supply of Shaanxi Automobile heavy-duty trucks, specialized vehicles, and construction machinery. Upholding the principle of "mutual benefit, integrity, and win-win cooperation," we have built a strong sales network across Central Asia, Africa, and Central and South America, backed by our brand strength and a fully integrated procurement and supply chain system.
With an annual export capacity exceeding 3,000 units, Senyao has earned consistent trust from customers worldwide through reliable product quality and dedicated service. Engineered to military-grade standards and supported by professional export expertise, we ensure durability and performance in demanding conditions.
We look forward to establishing long-term, mutually rewarding partnerships with clients across the globe.
