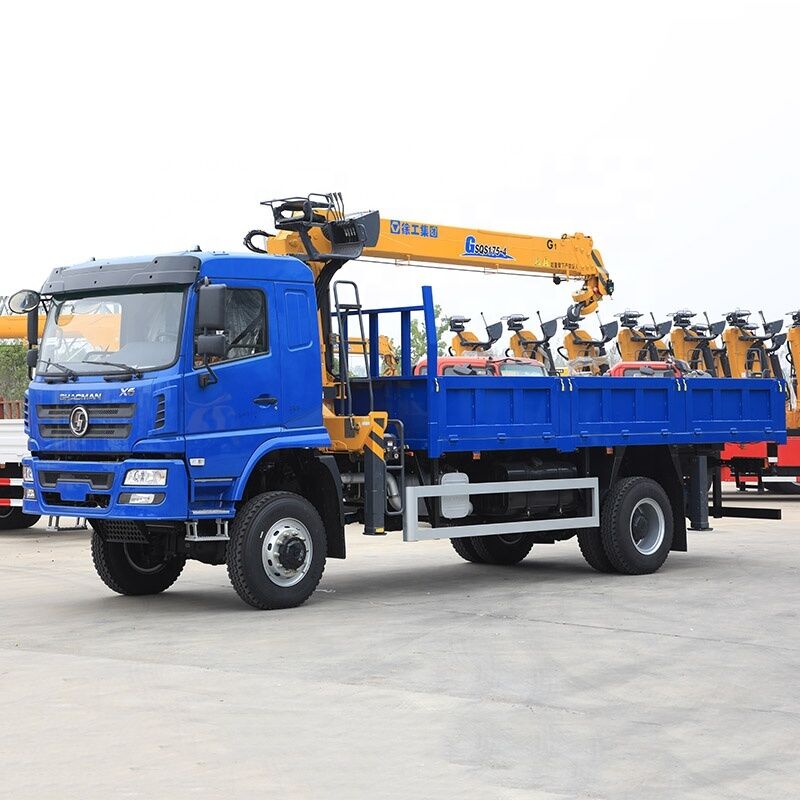

7 Ton Hydraulic Loader Crane Truck Mounted SHACMAN Diesel Crane Truck

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

7 Ton Hydraulic Loader Crane

Specifications

Color:	Blue, Green, Yellow, White	Application:	Construction/Warehouse/Terminals/Logistics/Rescue
Rated Lifting Moment:	175kN.m	Max. Lifting Height:	15.3M
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine	Product Name:	SHACMAN Diesel Crane Truck 7 Tons Loader Crane
Wheelbase:	5700mm	Max. Speed:	90km/h
High Light:	7 Ton Hydraulic Loader Crane , Hydraulic Diesel Crane Truck , SHACMAN Diesel Crane Truck

Product Description

7 Ton Hydraulic Loader Crane Truck Mounted SHACMAN Diesel Crane Truck

Vehicle Specifications

Truck Brand	SHACMAN L3000 Series Truck-mounted Crane
Drive Model	4x2, Left or right hand drive
Max. Driving Speed	90km/h

Chassis Details

Chassis Brand: SHACMAN

Engine: WEICHAI, WP6.210E32

Power: 210hp/154kw

Emission Standard: EURO Ⅱ

Frame: 870x250(7+4)mm

Wheelbase: 5000mm

Suspension: Front and rear multi-leaf spring

Vehicle Speed Ratio: 11.5T Single-stage bridge 5.286

Crane Performance

Max. Lifting Weight: 5000kg

Max. Lifting Torque: 125kN*m

Max. Working Radius: 11.2m

Max. Lifting Height: 12.7m

Luffing Range: 0°～78°

Slewing Angle: 360° full turn

Max. Operating Pressure: 22MPa

Oil Flow Volume: 63L/min

Crane Weight: 2200kg

Product Images
