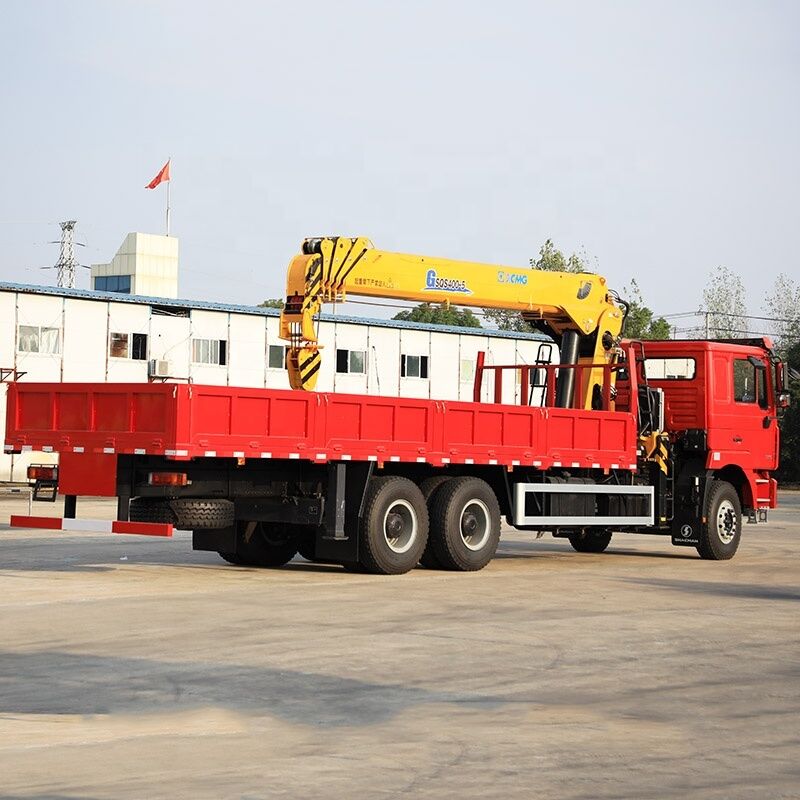

Manual Transmission Straight Boom Truck 16 Ton Truck Mounted Crane 9000x2450x800mm
| Color: | Blue, Green, Yellow, White | Application: | Construction/Warehouse/Terminals/Logistics/Rescue |
| Rated Lifting Moment: | 430kN.m | Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine |
| Weight (KG): | 6880 Kg | Emission Standard: | EURO 2 |
| High Light: | Manual Transmission Straight Boom Truck,Straight Boom Truck 16 Ton,Truck Mounted Crane 9000x2450x800mm |
||
|
Truck Brand
|
SHACMAN F3000 Series Truck-mounted Crane
|
|||
|
Drive Style
|
Left or right hand drive
|
|||
|
|
Drive Type
|
4x2
|
6x4
|
8x4
|
|
Engine
|
WP10.300E22
|
WP10.340E22
|
WP10.380E22
|
|
|
Power
|
300hp
|
340hp
|
380hp
|
|
|
Emission Standard
|
EURO Ⅱ
|
EURO Ⅱ
|
EURO Ⅱ
|
|
|
Frame
|
870x300(8+5)mm
|
870x300(8+5+8)mm
|
870x300(8+5+8)mm
|
|
|
Wheelbase
|
5600mm
|
5775+1400mm
|
2100+4575+1400mm
|
|
|
Vehicle Speed Ratio
|
16T HD dual-stage 4.769
|
16T HD dual-stage 4.769
|
16T HD dual-stage 5.262
|
|
|
|
Max. Lifting Weight
|
5000/6300/7000kg
|
10000/12000kg
|
16000/18000/20000kg
|
|
Max. Lifting Torque
|
125/157.5/175kN·m
|
260/300kN·m
|
430/470/520kN·m
|
|
|
Max. Working Radius
|
11.2-13.5m
|
14.5-21.77m
|
21.77-23.7m
|
|
|
Max. Lifting Height
|
12.7-15.3m
|
16.3-23.1m
|
24.1-26.4m
|
|
|
Luffing Range
|
0°～75°
|
0°～75°
|
0°～75°
|
|
|
Slewing Angle
|
360° full turn
|
360° full turn
|
360° full turn
|
|
|
Max. Operating Pressure
|
22/23MPa
|
26/28Mpa
|
28Mpa
|
|
|
Oil Flow Volume
|
63L/min
|
63+50L/min
|
80+50L/min
|
|
|
Crane Weight
|
2200/2330/2420kg
|
3693/4300kg
|
6880/6970/7600kg
|
|
