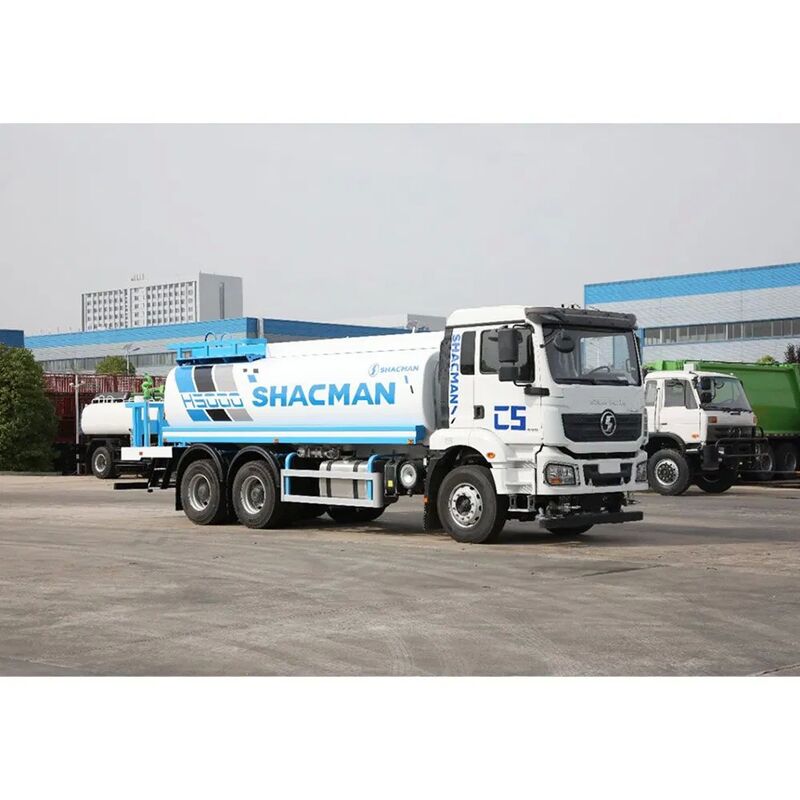

Roadway Cleaning Water Spray Vehicle Truck 6x4 With Electronic Fog Cannon
| Model NO.: | Shacman H3000 Sprinkler Truck | Emission Standard: | Euro 2 |
| Sprinkling Area: | Customize | Transmission Type: | Manual |
| Payload: | Customize | Fuel: | Diesel |
| Drive Wheel: | 6×4 | Engine Capacity: | 9.726 |
| Condition: | New | Transportation: | By Truck |
| Technology: | Engin From Commins Us, Some From Weichai | Usage: | Transport Coal, Sands, Rocks.etc |
| Suspension: | Mechanical Suspension | Rear Axle: | 16t |
| Front Axle: | Man9.5t | Transmission: | 10/12 Speeds, Manual |
| Steering System: | Left Or Right Hand | Transport Package: | Roll-Roll Way |
| Trademark: | Shacman | Origin: | China |
| HS Code: | 8704230090 | Production Capacity: | 800pieces/Year |
| High Light: | Roadway Water Spray Vehicle,Water Spray Vehicle 6x4,Roadway Water Spray Truck |
||
SHACMAN dump trucks have 5 series such as X3000,F3000,H3000,F2000,L3000 to meet different customer requires.With many configurations available to choose; from the standard tipper to highly specialized vehicles for tough job, SHACMAN has all that you need. No matter what the job entails, our qualified professionals can help you pick out the perfect vehicle.
| Installation parameters of sprinkler truck | ||
| Tank system | Effective volume | 20m³ |
| Tank body shape | circular | |
| Tank material | 5mm(Q235) 5mm(carbon steel) |
|
| Head thickness | 6mm(Q235) 6mm(carbon steel) |
|
| Number of wave deflectors | 3 three | |
| Thickness of wave deflector | 4mm(Q235) 4mm(carbon steel) |
|
| welding technology | Robot automatic welding | |
| Visible water storage capacity | PVC measuring tube | |
| Tank body and mouth | Automatic control activation | |
| low water-level alarm | not have | |
| Water addition method | Self suction/fire water supply/tank top | |
| Unpressurized water supply | tail | |
| supporting system | Reinforcement of auxiliary beams | |
| sprinkler system | water pump | HangzhouWeilong 50/110 (export type) |
power takeoff |
Jiashan, Zhejiang |
|
| CONTROL BALL VALVE | stainless steel | |
| control mode | Pneumatic control in the cab | |
| Main pipeline diameter | 80 | |
| Auxiliary pipeline diameter | 50 | |
| Square tubes on both sides of the water pipe | 2 suction pipes | |
Function Parameter |
Forwardflushing (automatic control) | Fan shaped (1 pair of Vientiane duck beaks) |
| Hedging (automatic control) |
Columnar (adjustable hedge 1 pair) | |
| Rearsprinkler (automatic control) | Fan shaped (1 pair) | |
| Side spray (automatic control) | Fan shaped (1 pair) | |
| Green anti-aircraft gun (manual) | Columnar/fan-shaped (adjustable) | |
| Maximum width of watering | ≥30m | |
| Maximum height of water cannon | ≥35m | |
| Maximum water absorption height | ≥10m | |
Protective system |
Side protection | aluminum alloy |
| Rear platform protection |
Widening and raising (wear-resistant patterned plate) |
|
| Tank top platform protection | Widening and raising (wear-resistant patterned plate) | |
| Climbing ladder | Bold anti slip pipe | |
| Tank ladder | belt | |
| Rear protection | Enhanced engineering post protection | |
| fixture | M16 Horse riding bolt (color plated)M16 |
|
| Assembly process | Rear assembly | |
| Work lights | Two arrow warning lights | |
| optional devices | front | Intelligent electronic sprinkler |
| Rear platform | 30/40m high-power spray |
|
| Painting Process | Electrophoresis (standard primer) | |
| Baking paint (topcoat process) | ||
| Tank anti-corrosion coating (inside the tank) | ||
| Service guarantee | Warranty period of 18 months | |
Practical scenarios |
Urban landscaping and greening | |
| Municipal sanitation | ||
| construction site/Factory area/dust fall | ||
| life/construction/Carrying water | ||
1. Engine: it could be Weichai and Cummins. Cummins has a better performance, but it could not be used any more if it meets a problem, it is hard to be maintained. Weichai has a strong power and could be maintained, but its performance it than Cummins.
2. Gearbox: it could be FAST manuel and EATON ATM
3.Lifting System: it could be HYVA and Chinese brand.
4. Dumper Size: Height could be added, thickness could be added.
5.Cab: It could be F3000,H3000,X3000, X3000 is the best. F3000 is the most popular series.H3000 is the cheapest. Difference please ask us.
6.Tire: it could be customized.
7.Oil Tank: It could be customized
8.Color: White,Red,Orange,Green,Blue.
9.Spares: camera,day light etc.
