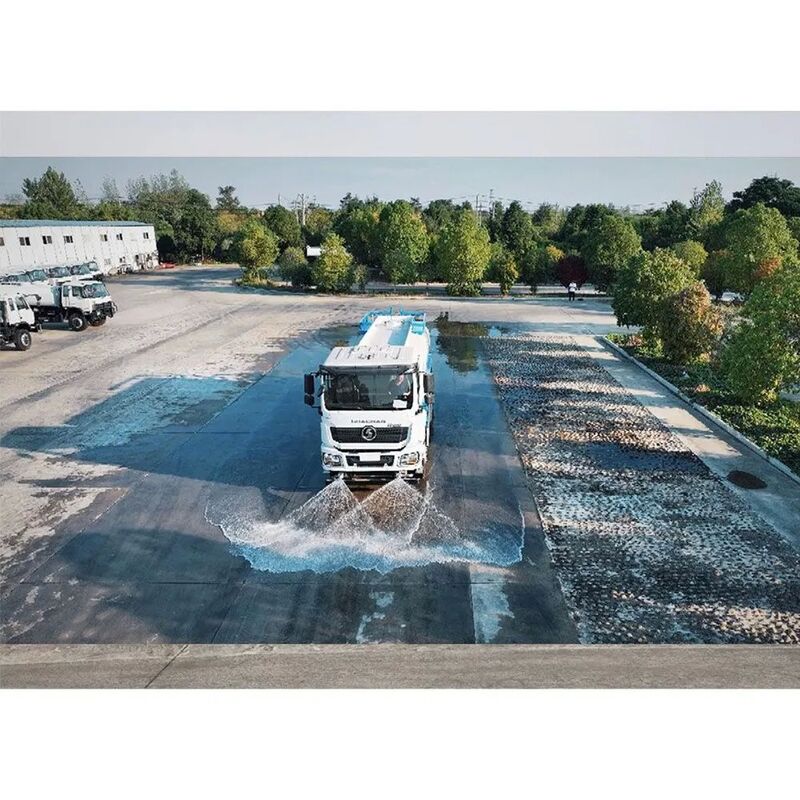

Shacman Fog Cannon Water Splash Lorry Truck for Municipal Maintenance
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Model NO.: | Shacman H3000 Water Truck | Emission Standard: | Euro 2 |
| Sprinkling Area: | Customize | Transmission Type: | Manual |
| Payload: | Customize | Fuel: | Diesel |
| Drive Wheel: | 6×4 | Engine Capacity: | 9.726 |
| Condition: | New | Transportation: | By Truck |
| Technology: | Engin From Commins Us, Some From Weichai | Usage: | Transport Coal, Sands, Rocks.etc |
| Suspension: | Mechanical Suspension | Rear Axle: | 16t |
| Front Axle: | Man9.5t | Transmission: | 10/12 Speeds, Manual |
| Steering System: | Left Or Right Hand | Transport Package: | Roll-Roll Way |
| Trademark: | Shacman | Origin: | China |
| HS Code: | 8704230090 | Production Capacity: | 800pieces/Year |
| High Light: | Shacman fog cannon lorry truck,municipal maintenance sprinkler truck,water splash fog cannon truck |
||
Product Description
Shacman Fog Cannon Water Splash Lorry Truck for Municipal Maintenance
High quality Shacman water cargo transport/concrete mixing tractor crane dump truck
Product Overview
A dump truck is designed with an elevated front-end box that allows contents to be dumped out the back. These trucks are typically used for hauling construction waste, sand, gravel, and similar materials.
SHACMAN dump trucks feature 5 series - X3000, F3000, H3000, F2000, and L3000 - to meet diverse customer requirements. With multiple configurations available, from standard tippers to specialized vehicles for demanding jobs, SHACMAN provides comprehensive solutions. Our qualified professionals assist in selecting the perfect vehicle for any application.
Technical Specifications
Tank System Parameters
| Parameter | Specification |
|---|---|
| Effective Volume | 20m³ |
| Tank Body Shape | Circular |
| Tank Material | 5mm (Q235) 5mm (carbon steel) |
| Head Thickness | 6mm (Q235) 6mm (carbon steel) |
| Number of Wave Deflectors | 3 |
| Thickness of Wave Deflector | 4mm (Q235) 4mm (carbon steel) |
| Welding Technology | Robot automatic welding |
| Visible Water Storage Capacity | PVC measuring tube |
| Tank Body and Mouth | Automatic control activation |
| Low Water-Level Alarm | Not equipped |
| Water Addition Method | Self suction/fire water supply/tank top |
| Unpressurized Water Supply | Tail |
| Supporting System | Reinforcement of auxiliary beams |
Sprinkler System
| Component | Specification |
|---|---|
| Water Pump | Hangzhou Weilong 50/110 (export type) |
| Power Takeoff | Jiashan, Zhejiang |
| Control Ball Valve | Stainless steel |
| Control Mode | Pneumatic control in the cab |
| Main Pipeline Diameter | 80 |
| Auxiliary Pipeline Diameter | 50 |
| Square Tubes on Both Sides | 2 suction pipes |
Function Parameters
| Function | Type & Configuration |
|---|---|
| Forward Flushing (automatic control) | Fan shaped (1 pair of Vientiane duck beaks) |
| Hedging (automatic control) | Columnar (adjustable hedge 1 pair) |
| Rear Sprinkler (automatic control) | Fan shaped (1 pair) |
| Side Spray (automatic control) | Fan shaped (1 pair) |
| Green Anti-Aircraft Gun (manual) | Columnar/fan-shaped (adjustable) |
| Maximum Width of Watering | ≥30m |
| Maximum Height of Water Cannon | ≥35m |
| Maximum Water Absorption Height | ≥10m |
Protective System
Side Protection: Aluminum alloy
Rear Platform Protection: Widening and raising (wear-resistant patterned plate)
Tank Top Platform Protection: Widening and raising (wear-resistant patterned plate)
Climbing Ladder: Bold anti-slip pipe
Tank Ladder: Belt
Rear Protection: Enhanced engineering post protection
Fixture: M16 Horse riding bolt (color plated) M16
Assembly Process: Rear assembly
Work Lights: Two arrow warning lights
Optional Devices
- Front: Intelligent electronic sprinkler
- Rear Platform: 30/40m high-power spray
Painting Process
- Electrophoresis (standard primer)
- Baking paint (topcoat process)
- Tank anti-corrosion coating (inside the tank)
Service Guarantee: Warranty period of 18 months
Practical Applications
Urban landscaping and greening
Municipal sanitation
Construction site dust control
Factory area dust suppression
Life/construction water carrying
Customizable Components
- Engine: Weichai or Cummins options available. Cummins offers superior performance but requires specialized maintenance. Weichai provides strong power with easier maintenance accessibility.
- Gearbox: FAST manual or EATON ATM transmission systems
- Lifting System: HYVA or Chinese brand hydraulic systems
- Dumper Size: Customizable height and thickness enhancements
- Cab: F3000, H3000, or X3000 series. X3000 offers premium features, F3000 is the most popular, H3000 provides cost-effective solutions.
- Tire: Fully customizable tire specifications
- Oil Tank: Customizable oil tank configurations
- Color: White, Red, Orange, Green, Blue options
- Spares: Additional features including camera, daylight running lights, etc.
Company Profile
Shaanxi Hexin Shenghua Trading Co., Ltd is a global export authorized enterprise of Shaanxi Automobile heavy truck. As the largest export authorized enterprise in SHACMAN heavy truck sales and service countries, our core business focuses on vehicle production customization services.
Our company's development philosophy is: professional based, innovation and far-reaching, with 20 years of professional focus on foreign trade. Established on September 20, 2019, we specialize in the integrated export of Shaanxi Automobile heavy trucks, construction machinery, and special vehicles.
Committed to continuing the legacy of the Silk Road trade routes, we actively expand international and domestic markets. Through strategic cooperation, we have established companies and sales outlets in Uzbekistan, Tajikistan, Kyrgyzstan, Vietnam, and other countries. Our foreign economic and trade business radiates across Central Asia, Africa, Asia-Pacific, Central and South America, forming a comprehensive foreign trade export circulation system.
