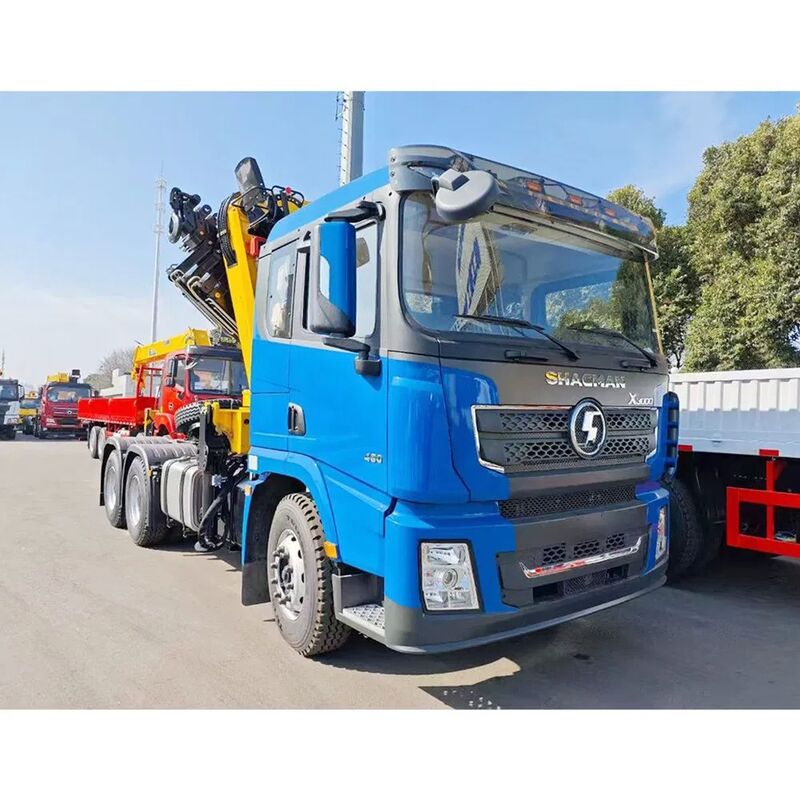

High Efficiency Shacman Customize Adjustable Arm Crane Lorry Truck for Roadside Rescue

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Certification: GS, RoHS, CE, ISO9001

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

Shacman adjustable arm crane lorry

roadside rescue knuckle boom crane

truck mounted crane for rescue

Specifications

Model NO.:	Shacman X3000 Crane Truck	Condition:	New
Maximum Lifting Height:	Customize	Maximum Lifting Weight:	Customize
Shaft Number:	Customize	Crane Jib:	Customize
Type:	Folding,Straight	Driving Type:	6×4
Wheelbase:	3175+1400	Max. Speed:	75km/H
Engine Brand:	Weichai	Rated Output Power:	380HP
Transmission:	12jsd200t-B	Carframe:	850×300(8+5)
Front Axle:	Man 7.5t	Suspension:	Front And Rear Multiple Spring Plates
Fuel Tank:	400L Aluminum Alloy	Tyre:	12.00r20 Mixed Patterns
Transport Package:	Wooden Transport	Specification:	7900mm2490mm3220mm
Trademark:	SHACMAN	Origin:	China
HS Code:	8704230090	Production Capacity:	1500pieces/Year
High Light:	Shacman adjustable arm crane lorry , roadside rescue knuckle boom crane , truck mounted crane for rescue

Product Description

Heavy Duty Shacman Dump Truck for Roadside Rescue

A specialized dump truck featuring an adjustable arm crane configuration, designed for efficient roadside rescue operations and heavy-duty material transport.

High Efficiency Shacman Customize Adjustable Arm Crane Lorry Truck for Roadside Rescue 0

Product Overview

A dump truck is designed with a front-elevating box system that allows controlled dumping of contents from the rear. Ideal for transporting construction waste, sand, gravel, and similar materials.

SHACMAN dump trucks are available in 5 series (X3000, F3000, H3000, F2000, L3000) to meet diverse customer requirements. From standard tippers to specialized vehicles for demanding applications, SHACMAN provides comprehensive solutions tailored to your specific operational needs.

Technical Specifications

Model	SX32555T404
Driver Position	Left Hand Drive
Driving Type	6×4
Wheelbase	3975+1400
Maximum Speed	75km/h
Engine Brand	WEICHAI
Engine Model	WP10.380E22
Emission Standard	EURO 2
Rated Output Power	380HP
Transmission Brand	FAST
Transmission Model	12JSD200T-B-Iron Shell-QH50
Front Axle Brand	HANDE
Front Axle Model	MAN 9.5T
Rear Axle Brand	HANDE
Rear Axle Model	16T MAN Double-Stage Reduction Drive Axle (Speed ratio: 5.262)
Clutch	¢430 diaphragm clutch
Steering	ZF technology/ZF
Frame	850×300(8+7)
Suspension	Front and rear multi-leaf spring (four main leaves + four horse riding)
Fuel Tank	400L Aluminum alloy fuel tank
Wheels and Tires	12.00R20 Radial Tire (20 ply rating) 10+1

Braking System

Running Brake

Dual circuit compressed air brake

Parking Brake

Air discharging with spring control

Auxiliary Brake

Engine exhaust brake

Cabin Features

X3000 extended flat roof cab without roof guide cover dump truck with comprehensive comfort and safety features including:

Electric automatic constant temperature air conditioning
Desert air filter and ordinary exhaust system
Multi-leaf spring front and rear suspension
Domestic steering gear with multifunctional steering wheel
165Ah maintenance-free battery
Electric flip mechanism and three-level boarding pedal
Metal bumper with light protection net
Center front traction seat and air main seat
Electric window controls and central locking with remote
Electric heated rearview mirrors
Tail light protection grille and water tank protection grille
Front stabilizer bar and four-point hydraulic suspension
Stainless steel wheel rim decoration cover
Reverse buzzer and daytime running lights
SHACMAN logo and full English branding
2KG fire extinguisher and parking wedge block
Rear axle stabilizer bar and battery box anti-theft system

Upbody Specifications

Large box dimensions: 5800 × 2300 × 1500 mm

Construction: Bottom plate thickness 10mm, Edge plate thickness 8mm

Color matching: Same as cab with Tianzi grid and T700 high-strength board components

Customization Options

Engine

Weichai or Cummins options available. Weichai offers strong power and maintainability, while Cummins provides superior performance with specialized maintenance requirements.

Gearbox

FAST manual or EATON ATM transmission systems

Lifting System

HYVA or Chinese brand lifting mechanisms

Dumper Size

Customizable height and thickness dimensions

Cab Series

F3000 (most popular), H3000 (most economical), or X3000 (premium) series

Tire Configuration

Custom tire specifications available

Oil Tank

Custom fuel tank capacity options

Color Options

White, Red, Orange, Green, Blue

Additional Spares

Camera systems, daylight running lights, and other accessories
