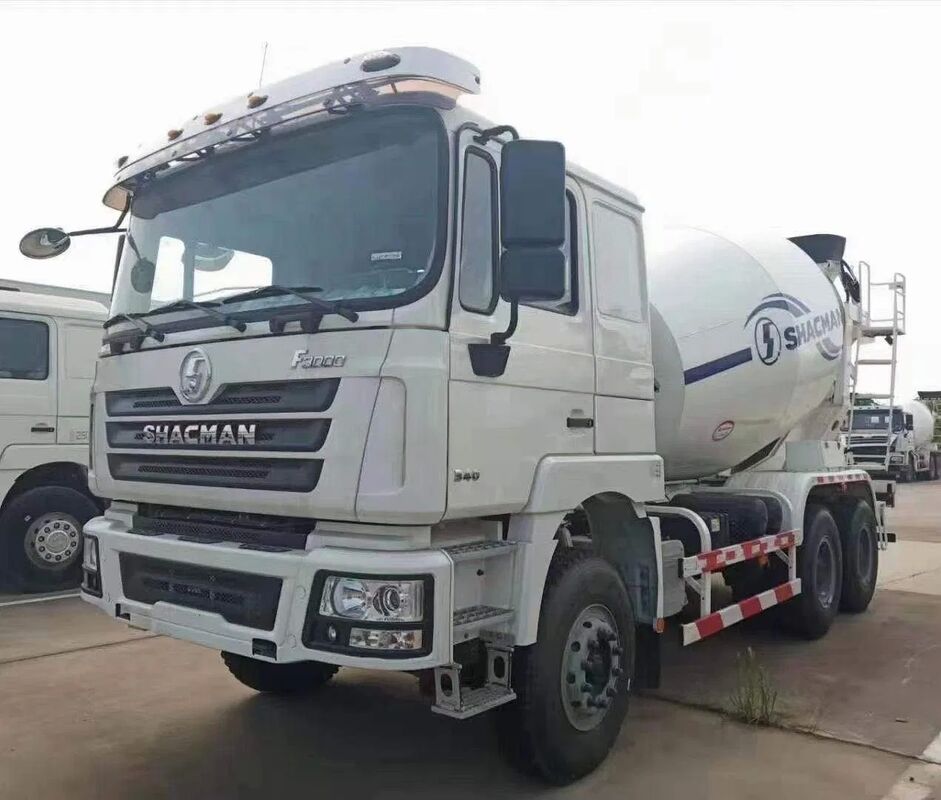

Shacman F3000 6X4 Mixer Truck Euro 2

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Certification: EEC

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

special transport truck with warranty

Customized Tow X3000 8X4 wrecker truck

refrigeration box delivery van

Specifications

Model NO.:	F3000 6X4	Transmission Type:	Manual
Emission Standard:	Euro2	Displacement:	9.726
Payload:	30T	Fuel:	Diesel
Drive Mode:	6x4	Maximum Horsepower:	300-400hp
Condition:	New	Tire:	12.00r20
Oil Tank:	300L Aluminum Alloy Oil Tank	Suspension:	Front And Rear Multi-Spring
Front Axle:	9.5t	Wheelbase (mm):	3775+1400
Axle Speed Ratio:	16t Man Two-Stage Axle Speed Ratio 3.866	Transmission:	10jsd180
Transport Package:	Roll-Roll	Specification:	35t
Trademark:	SHACMAN	Origin:	Xi'an City, Shaanxi Province, China
HS Code:	8704230090	Production Capacity:	500pieces/Years
High Light:	Shacman F3000 cement mixer truck , 6x4 concrete mixer truck , Euro 2 compliant mixer truck

Product Description

Shacman F3000 6X4 Mixer Truck Euro 2

SHACMAN QUALITY • CHINESE SPEED

Industry Optimal Power Assembly

WEICHAI ENGINE • FAST TRANSMISSION • HANDE AXLE

As an official Shacman manufacturer, we provide various dump trucks with competitive pricing and superior quality, along with comprehensive after-sales service. Contact us to customize your truck proposal.

Customization Options

Engine: Weichai or Cummins options available

Gearbox: FAST manual or EATON ATM transmission

Lifting System: HYVA or Chinese brand options

Dumper Size: Customizable height and thickness

Cab: F3000, H3000, or X3000 series available

Tire: Fully customizable

Oil Tank: Customizable capacity

Color: White, Red, Orange, Green, Blue

Spares: Camera, radar, daylight sensors, and more

All specifications can be customized. Contact us for specific requirements and we'll provide a satisfactory solution.

Technical Specifications

Model	SX5255GJBDR384
Driver Position	Left Hand
Cab	Medium length flat top
Driving Type	6X4
Wheelbase	3775+1400
Max Speed	100km/h
Engine	Brand: WEICHAI
	Model: Weichai WP10.340E22+PT0
	Emission Standard: EURO 2
	Rated Output Power: 340HP
	Displacement: 9.726L
Transmission	Brand: FAST
Transmission	Model: 10jsd180
Front Axle	Brand: HANDE
Front Axle	Model: 9.5MANT
Rear Axle	Brand: HANDE
Rear Axle	Model: 16T double reduction driving axle
Speed Ratio	3.866
Clutch	¢430 diaphragm clutch
Frame	(940-850)×300
Suspension	Multiple leaf springs front and rear
Fuel Tank	300L Aluminum alloy
Wheels and Tires	12.00R20
Brakes	Running Brake: Dual circuit compressed air brake
	Parking Brake: Air discharging with spring control
	Auxiliary Brake: Engine exhaust brake
Cabin Features	Hydraulic main seat, four point hydraulic suspension cab, electrically controlled automatic constant temperature air conditioning, electric window shaker, manual flipping, ordinary air filter, metal bumper, hinged boarding pedal, 165Ah maintenance-free battery, spare tire rack, SHACMAN logo, all English logo, long-distance throttle controller

Product Overview

A dump truck is designed with an elevated front-end box that allows contents to be dumped out the back. These vehicles are typically used for transporting construction waste, sand, gravel, and similar materials.

SHACMAN offers five dump truck series (X3000, F3000, H3000, F2000, L3000) to meet diverse customer requirements. With multiple configurations available—from standard tippers to specialized vehicles for demanding applications—SHACMAN provides solutions for every job. Our qualified professionals can help you select the perfect vehicle for your specific needs.
