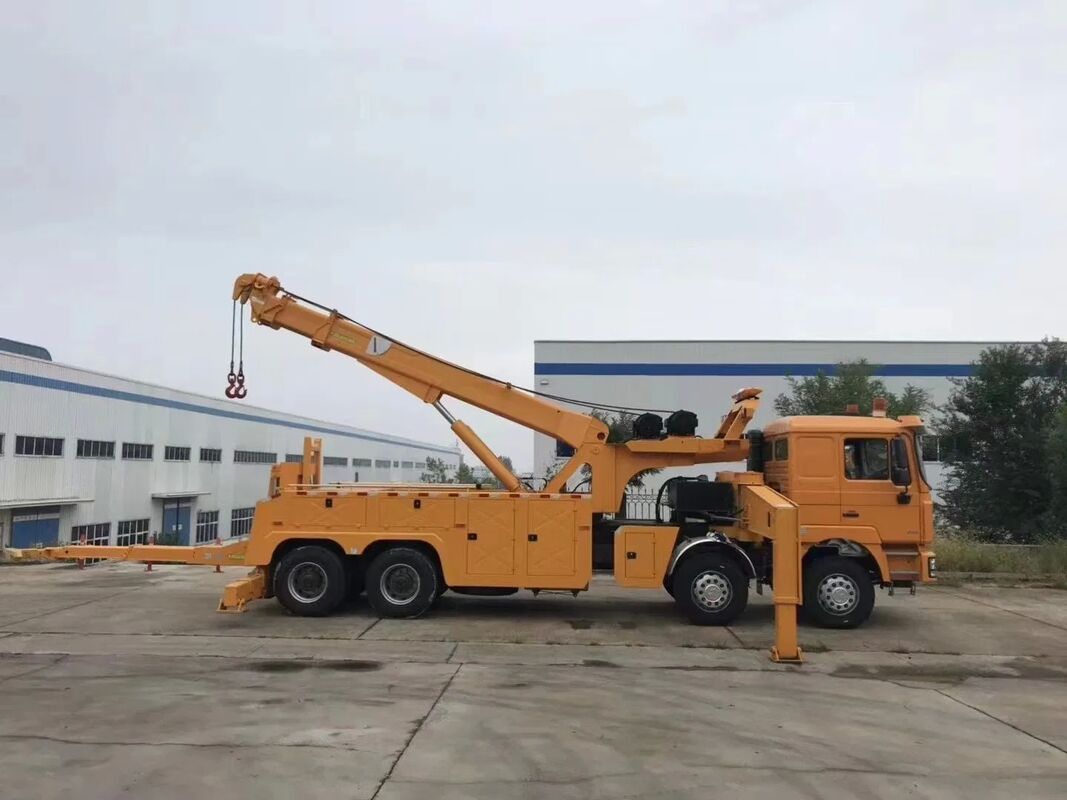

Shacman F3000 8X4 380 Horsepower Euro 2 13wheels Road Clearing Vehicle
| Model NO.: | SX5315JQZDT456 | Emission Standard: | Euro 2 |
| Transmission Type: | Manual | Towing Tonnage: | 30T |
| Fuel: | Diesel | Brand: | SHACMAN |
| Condition: | New | Transportation: | By Truck |
| Technology: | Engin From Commins Us, Some From Weichai | Usage: | Transport Coal, Sands, Rocks.etc |
| Suspension: | Mechanical Suspension | Rear Axle: | 16t |
| Front Axle: | Man9.5t | Transmission: | 10/12 Speeds, Manual |
| Steering System: | Left Or Right Hand | Transport Package: | Roll-Roll Way |
| Specification: | 35 Tons | Trademark: | Shacman |
| Origin: | China | HS Code: | 87042391 |
| Production Capacity: | 800PCS/Per Day | ||
| High Light: | Shacman F3000 8X4 dump truck,380 horsepower road clearing vehicle,13 wheels straight boom truck |
||
| Model | SX5315JQZDT456 |
|---|---|
| Driver Position | Left Hand |
| Driving Type | 8×4 |
| Wheelbase | 1800+3775+1400 mm |
| Maximum Speed | 85 km/h |
| Brand | WEICHAI |
|---|---|
| Model | WP12.430E201 |
| Emission Standard | EURO II |
| Rated Output Power | 316KW / 430HP |
| Displacement | 11.596L |
| Transmission Brand | FAST |
|---|---|
| Transmission Model | 12JSD200T-B-QH50 |
| Front Axle Brand | HANDE |
| Front Axle Model | MAN 9.5T |
| Rear Axle Brand | HANDE |
| Rear Axle Model | 16T MAN Double Reduction Driving Axle |
| Speed Ratio | 5.262 |
| Clutch | ¢430 Diaphragm Clutch |
|---|---|
| Steering | ZF Technology / ZF |
| Frame | 850×300 (8+7) |
| Suspension | Front and Rear Multi-leaf Spring |
| Fuel Tank | 360L Aluminum Alloy |
| Wheels & Tires | 12.00R20 |
- Running Brake: Dual Circuit Compressed Air Brake
- Parking Brake: Air Discharging with Spring Control
- Auxiliary Brake: Engine Exhaust Brake
- F3000 Medium Length Flat Top Cab without Top Side Air Deflector
- Hydraulic Main Seat with Four Point Hydraulic Suspension
- Ordinary Rearview Mirror and Single Refrigeration Air Conditioning
- Electric Window Rocking Machine and Electric Flip Mechanism
- Steel Plate Bumper with Three-Level Boarding Pedal
- Oil Bath Air Filter and Ordinary Exhaust System
- Water Tank and Oil Pan Protection Grilles
- Front and Rear Stabilizer Bars with Tail Light Protection Grille
- 165Ah Maintenance Free Battery
- Circular Curtain and Sleeper Curtain
- SHACMAN Logo with Full English Iron Air Reservoir
- Reverse Buzzer and Transmission Telescopic Shaft Control
- Left-Side Fuel Tank Configuration
