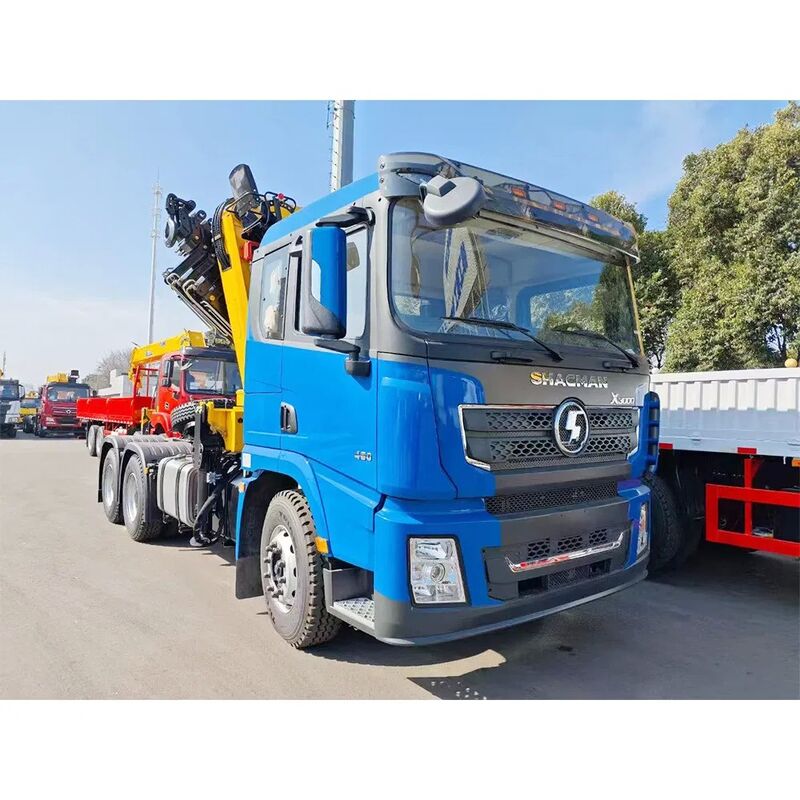

Shacman Customize Rotary Telescopic Arm Crane Vehicle Truck for Municipal Administration/Building
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Certification:
GS, RoHS, CE, ISO9001
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Model NO.: | Shacman X3000 Crane Truck | Condition: | New |
| Maximum Lifting Height: | Customize | Maximum Lifting Weight: | Customize |
| Shaft Number: | Customize | Crane Jib: | Customize |
| Type: | Folding,Straight | Driving Type: | 6×4 |
| Wheelbase: | 3175+1400 | Max. Speed: | 75km/H |
| Engine Brand: | Weichai | Rated Output Power: | 380HP |
| Transmission: | 12jsd200t-B | Carframe: | 850×300(8+5) |
| Front Axle: | Man 7.5t | Suspension: | Front And Rear Multiple Spring Plates |
| Fuel Tank: | 400L Aluminum Alloy | Tyre: | 12.00r20 Mixed Patterns |
| Transport Package: | Wooden Transport | Specification: | 7900mm*2490mm*3220mm |
| Trademark: | SHACMAN | Origin: | China |
| HS Code: | 87042391 | Production Capacity: | 800PCS/Per Day |
| High Light: | Shacman rotary telescopic arm crane truck,municipal administration knuckle boom crane,building construction truck mounted crane |
||
Product Description
Shacman Customize Rotary Telescopic Arm Crane Vehicle Truck
Heavy duty Shacman LHD RHD trailer tractor cargo tipper self dump truck designed for municipal administration and building applications.
Product Overview
A dump truck featuring an elevated front-end box design that allows contents to be dumped out the back. Ideal for transporting construction waste, sand, gravel, and similar materials.
SHACMAN dump trucks offer 5 series (X3000, F3000, H3000, F2000, L3000) to meet diverse customer requirements. With configurations ranging from standard tippers to specialized vehicles for demanding applications, SHACMAN provides comprehensive solutions for any job requirement.
Technical Specifications
| Model | SX32555T404 |
| Driver Position | Left Hand |
| Driving Type | 6×4 |
| Wheelbase | 3975+1400 |
| Max Speed | 75km/h |
| Engine Brand | WEICHAI |
| Engine Model | WP10.380E22 |
| Emission Standard | EURO 2 |
| Rated Output Power | 380HP |
| Transmission Brand | FAST |
| Transmission Model | 12JSD200T-B-Iron Shell-QH50 |
| Front Axle Brand | HANDE |
| Front Axle Model | MAN 9.5T |
| Rear Axle Brand | HANDE |
| Rear Axle Model | 16T MAN Double-Stage Reduction Drive Axle (Speed ratio: 5.262) |
| Clutch | ¢430 diaphragm clutch |
| Steering | ZF technology/ZF |
| Frame | 850×300(8+7) |
| Suspension | Front and rear multi-leaf spring four main leaves + four horse riding |
| Fuel Tank | 400L Aluminum alloy fuel tank |
| Wheels and Tires | 12.00R20 Radial Tyre (Tyre 20 ply Rating) 10+1 |
Braking System
- Running brake: Dual circuit compressed air brake
- Parking brake: Air discharging with spring control
- Auxiliary brake: Engine exhaust brake
Cab Features
X3000 extended flat roof cab without roof guide cover dump truck with electric automatic constant temperature air conditioning, desert air filter, multifunctional steering wheel, 165Ah maintenance free battery, electric flip, three-level boarding pedal, metal bumper with light protection net, center front traction seat, electric window shaking machine, central locking (with remote control), air main seat, electric heated rearview mirror, and comprehensive safety features.
Upbody Specifications
Large box size: 5800 × 2300 × 1500 | Bottom plate thickness: 10 | Edge plate thickness: 8 | Box color matches cab | Additional components: Tianzi grid | T700 high-strength board
Customization Options
- Engine: Weichai or Cummins options available
- Gearbox: FAST manual or EATON ATM transmission
- Lifting System: HYVA or Chinese brand hydraulic systems
- Dumper Size: Customizable height and thickness
- Cab: F3000, H3000, or X3000 series options
- Tire: Custom tire configurations available
- Oil Tank: Custom fuel tank specifications
- Color: White, Red, Orange, Green, Blue options
- Spares: Additional features including camera, daylight running lights, etc.
Manufacturer Profile
Shaanxi Hexin Shenghua Trading Co., Ltd is a global export authorized enterprise of Shaanxi Automobile heavy truck. As the largest export authorized enterprise in SHACMAN heavy truck sales and service countries, our core business focuses on vehicle production customization services.
With 20 years of professional foreign trade experience, our company specializes in the integration and export of Shaanxi Automobile heavy trucks, construction machinery, and special vehicles. We maintain an extensive international presence with operations in Uzbekistan, Tajikistan, Kyrgyzstan, Vietnam, and other countries, serving markets across Central Asia, Africa, Asia-Pacific, and Central and South America.
Cooperation & Communication
Product Gallery
Last updated: 2025-05-10
