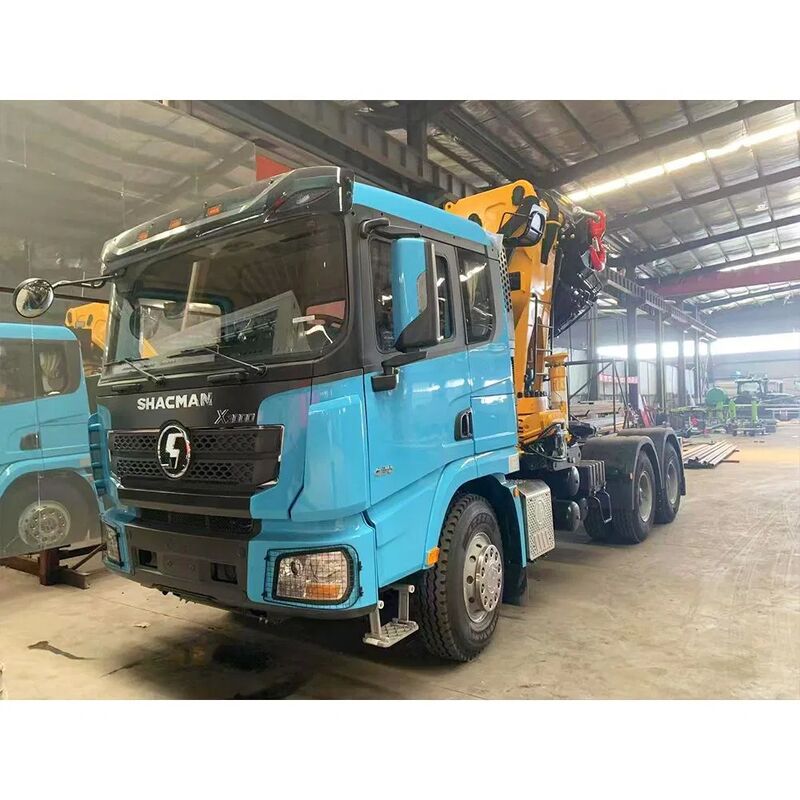

Shacman Foldable Knuckle Boom Truck Mounted Crane Straight Arm Crane Truck
| Model NO.: | Shacman X3000 Crane Truck | Wheelbase: | 3175+1400 |
| Fuel Tank: | 400L Aluminum Alloy | Tyre: | 12.00r20 Mixed Patterns |
| Transport Package: | Wooden Transport | Specification: | 7900mm*2490mm*3220mm |
| HS Code: | 8704230090 | Production Capacity: | 1500pieces/Year |
| High Light: | Foldable Knuckle Boom Truck Mounted Crane,Shacman Knuckle Boom Truck Mounted Crane,Straight Arm Crane Truck |
||
| Model | SX32555T404 |
| Driver Position | Left Hand |
| Driving Type | 6×4 |
| Wheelbase | 3975+1400 |
| Maximum Speed | 75km/h |
| Brand | WEICHAI |
| Model | WP10.380E22 |
| Emission Standard | EURO 2 |
| Rated Output Power | 380HP |
| Transmission Brand | FAST |
| Transmission Model | 12JSD200T-B-Iron Shell-QH50 |
| Front Axle Brand | HANDE |
| Front Axle Model | MAN 9.5T |
| Rear Axle Brand | HANDE |
| Rear Axle Model | 16T MAN Double-Stage Reduction Drive Axle (Speed ratio: 5.262) |
| Clutch | ¢430 diaphragm clutch |
| Steering | ZF technology/ZF |
| Frame | 850×300(8+7) |
| Suspension | Front and rear multi-leaf spring (four main leaves + four horse riding) |
| Fuel Tank | 400L Aluminum alloy fuel tank |
| Wheels & Tires | 12.00R20 Radial Tire (Tire 20 ply Rating) 10+1 |
| Running Brake | Dual circuit compressed air brake |
| Parking Brake | Air discharging with spring control |
| Auxiliary Brake | Engine exhaust brake |
- X3000 extended flat roof cab without roof guide cover
- Electric automatic constant temperature air conditioning
- Desert air filter / ordinary exhaust
- Multi-leaf spring front and rear suspension
- Domestic steering gear / multifunctional steering wheel
- 165Ah maintenance free battery
- Electric flip / three-level boarding pedal
- Metal bumper with light protection net
- Center front traction seat
- Electric window shaking machine / central locking (with remote control)
- Air main seat / electric heated rearview mirror
- Tail light protection grille / water tank protection grille
- Front stabilizer bar / four point hydraulic suspension
- Stainless steel wheel rim decoration cover
- Reverse buzzer / daytime running lights
- SHACMAN logo / full English logo
- 2KG fire extinguisher / parking wedge block
- Rear axle stabilizer bar / battery box anti-theft
Bottom plate thickness: 10
Edge plate thickness: 8
Large box color: same as the cab
Other components installed: Tianzi grid / T700 high-strength board
