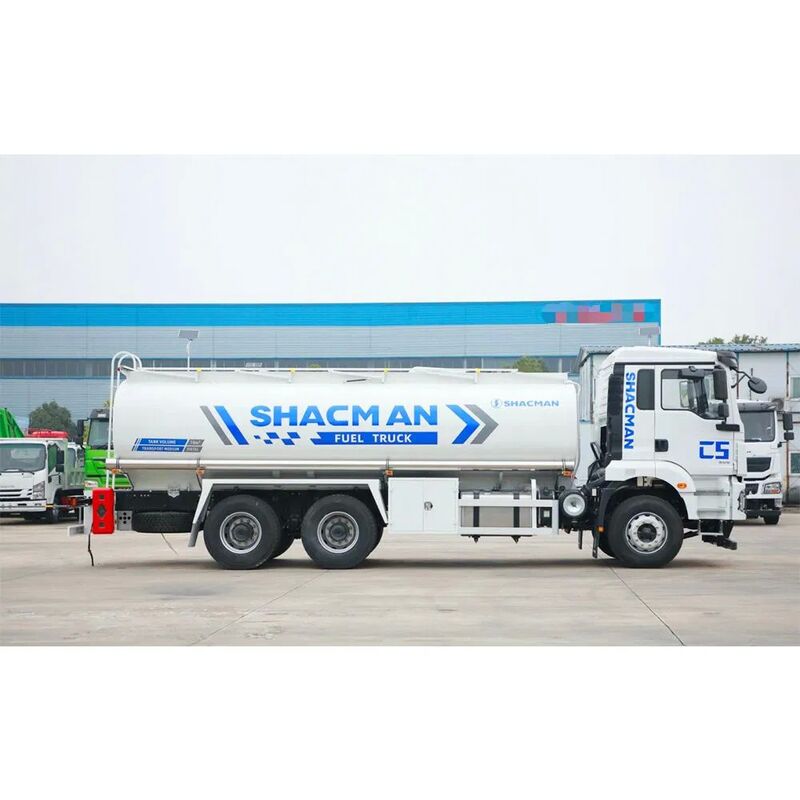

20m3 Fuel Truck Euro 5 Emission Standard Oil Tanker Truck
| Model NO.: | Shacman H3000 Oil Truck | Emission Standard: | Euro 5 |
| Suspension: | Mechanical Suspension | Rear Axle: | 16t |
| Front Axle: | Man9.5t | Transport Package: | Roll-Roll Way |
| Origin: | China | Production Capacity: | 800pieces/Year |
| High Light: | 20m3 Fuel Truck,Fuel Truck Euro 5,20m3 Oil Tanker Truck |
||
| Total Volume | 20 m³ (20 cubic meters) |
| Tank Body Material | Q235B |
| Cylinder Thickness | 4.75mm |
| Head Thickness | 5.75mm |
| Anti-Wave Board | 4mm thickness, 3 levels |
| Subsea Valve | Jialong Intelligent closing system with voice alarm, single acting cylinder, automatic opening |
| Manhole | European standard tank mouth with breathing valve, mechanical opening |
| Power Take-off System | Transmission power take-off with flange style, transmission shaft linkage |
| Oil Pump Brand | Shenwei gear oil pump |
| Lift Capacity | 90m |
| Flow Rate | 60 m³/h |
| Host Pipe | φ89 outer diameter, 4mm thickness |
| Compartment | Single warehouse sharing |
| Flow Meter | Gear flowmeter, quantity: 1 |
| Refueller | Chinese and English interface |
| Filler Pipe | 15/20m length |
| Joint Standard | European/French |
| Bottom Loading Port | Waste gas recovery |
| Self Flowing Port | DN80 caliber, 4mm pipeline thickness, 3 ports |
| Ball Valve | Aluminum alloy, DN80/5 specification |
| Barrel | 201 stainless steel/0.8mm thickness, same length as tank body |
| Side Protection | Aluminum alloy |
| Top Folding Guardrail | Aluminum alloy |
| Rear Climbing Ladder | Reinforced construction |
| Auxiliary Beam | Q235B/8mm material, 200mm height |
| U-bolt Connection | U-shaped color plating, M18 riding bolt diameter |
| Fire Extinguisher | 4kg/2 pieces |
| Operation Box | Size determined by optional configurations, Q235B/1.5mm material |
| Toolbox | 500*450*420mm, Q235B/1.5mm material |
| Tank Surface | All baking paint process standards (high temperature resistance, high humidity resistance, corrosion resistance), eight process treatments |
| Interior Coating | Local electrophoresis, complete rust prevention treatment |
| Process Standards | Overseas edition C5 |
