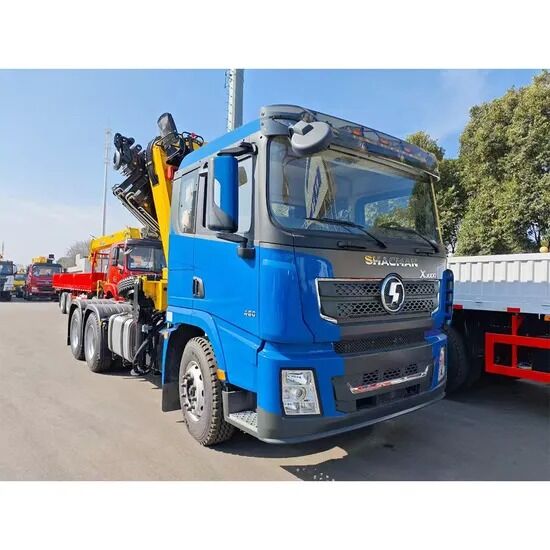

Shacman Rotatable Telescopic Arm Crane Lorry Truck for Industry Construction
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Certification:
GS, RoHS, CE, ISO9001
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Model NO.: | Shacman X3000 Crane Truck | Condition: | New |
| Maximum Lifting Height: | Customize | Maximum Lifting Weight: | Customize |
| Shaft Number: | Customize | Crane Jib: | Customize |
| Type: | Folding,Straight | Driving Type: | 6×4 |
| Wheelbase: | 3175+1400 | Max. Speed: | 75km/H |
| Engine Brand: | Weichai | Rated Output Power: | 380HP |
| Transmission: | 12jsd200t-B | Carframe: | 850×300(8+5) |
| Front Axle: | Man 7.5t | Suspension: | Front And Rear Multiple Spring Plates |
| Fuel Tank: | 400L Aluminum Alloy | Tyre: | 12.00r20 Mixed Patterns |
| Transport Package: | Wooden Transport | Specification: | 7900mm*2490mm*3220mm |
| Trademark: | SHACMAN | Origin: | China |
| HS Code: | 87042391 | Production Capacity: | 800PCS/Per Day |
| High Light: | Shacman rotatable telescopic crane truck,industrial knuckle boom truck crane,construction telescopic arm lorry crane |
||
Product Description
Shacman Rotatable Telescopic Arm Crane Lorry Truck
Heavy Duty Shacman LHD RHD Trailer Tractor Cargo Tipper Self-Dump Truck
Product Overview
A dump truck is designed with an elevated front-end box that allows contents to be dumped out the back. These trucks are commonly used for transporting construction waste, sand, gravel, and similar materials.
SHACMAN dump trucks offer five series - X3000, F3000, H3000, F2000, and L3000 - to meet diverse customer requirements. With multiple configurations available, from standard tippers to specialized vehicles for demanding jobs, SHACMAN provides comprehensive solutions for any application.
Technical Specifications
| MODEL | SX32555T404 |
| Driver Position | Left Hand |
| Driving Type | 6×4 |
| Wheelbase | 3975+1400 |
| Max. Speed | 75km/h |
| Engine | |
| Brand | WEICHAI |
| Model | WP10.380E22 |
| Emission Standard | EURO 2 |
| Rated Output Power | 380HP |
| Transmission | |
| Brand | FAST |
| Model | 12JSD200T-B-Iron Shell-QH50 |
| Front Axle | |
| Brand | HANDE |
| Model | MAN 9.5T |
| Rear Axle | |
| Brand | HANDE |
| Model | 16T MAN Double-Stage Reduction Drive Axle (Speed ratio: 5.262) |
| Clutch | ¢430 diaphragm clutch |
| Steering | ZF technology/ZF |
| Frame | 850×300(8+7) |
| Suspension | Front and rear multi-leaf spring (four main leaves + four horse riding) |
| Fuel Tank | 400L Aluminum alloy fuel tank |
| Wheels and Tires | 12.00R20 Radial Tire (Tire 20 ply Rating) 10+1 |
| Brakes | |
| Running Brake | Dual circuit compressed air brake |
| Parking Brake | Air discharging with spring control |
| Auxiliary Brake | Engine exhaust brake |
Cabin Features
X3000 extended flat roof cab without roof guide cover dump truck, electric automatic constant temperature air conditioning, desert air filter, ordinary exhaust, multi leaf spring front suspension, multi leaf spring (four saddle bolt) rear suspension, domestic steering gear, multifunctional steering wheel, 165Ah maintenance free battery, electric flip, three-level boarding pedal, metal bumper with light protection net, center front traction seat, electric window shaking machine, central locking (with remote control), air main seat, electric heated rearview mirror, tail light protection grille, water tank protection grille, front stabilizer bar, four point hydraulic suspension, stainless steel wheel rim decoration cover, reverse buzzer, daytime running lights, SHACMAN logo, full English logo, 2KG fire extinguisher, parking wedge block, rear axle stabilizer bar, battery box anti-theft.
Upbody Specifications
Large box size: 5800 * 2300 * 1500, Bottom plate thickness: 10, Edge plate thickness: 8, Large box color: same as the cab, Other components installed: Tianzi grid, T700 high-strength board.
Customization Options
- Engine: Weichai or Cummins. Cummins offers better performance but requires specialized maintenance. Weichai provides strong power with easier maintenance.
- Gearbox: FAST manual or EATON ATM transmission systems.
- Lifting System: HYVA or Chinese brand lifting mechanisms.
- Dumper Size: Customizable height and thickness options available.
- Cab: F3000, H3000, or X3000 series. X3000 offers premium features, F3000 is most popular, H3000 provides cost-effective solutions.
- Tire: Custom tire configurations available.
- Oil Tank: Custom fuel tank specifications.
- Color: White, Red, Orange, Green, Blue color options.
- Spares: Additional accessories including cameras, daylight systems, and more.
Company Profile
Shaanxi Hexin Shenghua Trading Co., Ltd is a global export authorized enterprise of Shaanxi Automobile heavy truck. As the largest export authorized enterprise in SHACMAN heavy truck sales and service countries, our core business focuses on vehicle production customization services.
Our development philosophy is: professional based, innovation and far-reaching, with 20 years of professional focus on foreign trade. Established on September 20, 2019, we specialize in the integration of Shaanxi Automobile heavy trucks, construction machinery, and special vehicles export.
We continue the legacy of business travel on the Silk Road, actively expanding international and domestic markets. Through cooperation, we have established companies and sales outlets in Uzbekistan, Tajikistan, Kyrgyzstan, Vietnam, and other countries, conducting import-export trade and foreign economic business that radiates to Central Asia, Africa, Asia-Pacific, Central and South America, forming a comprehensive foreign trade export circulation system.
