Shacman Customize Power Cargo Transport Spray Tractor Telescopic Arm Crane Dump Truck

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

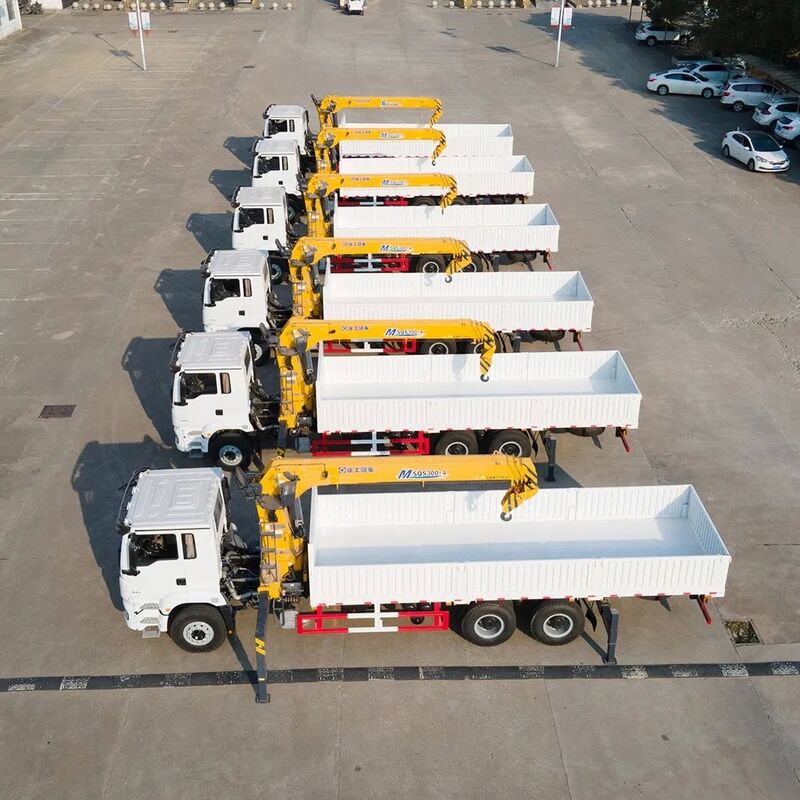

Shacman telescopic arm crane truck

custom power cargo transport truck

straight boom dump truck with crane

Specifications

Model NO.:	Shacman H3000	Transmission Type:	Manual
Power:	Diesel	Load Capacity:	31-40t
Emission Standard:	Euro 2	Drive Wheel:	6×4
Engine Capacity:	9.726	Seats:	≤5
Horsepower:	351-450hp	Tire Certification:	ECE, GCC, ISO, DOT
Tire Design:	Bias	Condition:	New
Transportation:	By Truck	Technology:	Engin From Commins Us, Some From Weichai
Usage:	Transport Coal, Sands, Rocks.etc	Suspension:	Mechanical Suspension
Rear Axle:	16t	Front Axle:	Man9.5t
Transmission:	10/12 Speeds, Manual	Steering System:	Left Or Right Hand
Transport Package:	Roll-Roll Way	Trademark:	Shacman
Origin:	China	HS Code:	87042391
Production Capacity:	800PCS/Per Day
High Light:	Shacman telescopic arm crane truck , custom power cargo transport truck , straight boom dump truck with crane

Product Description

Shacman Customize Power Cargo Transport Spray Tractor Telescopic Arm Crane Dump Truck

High quality Shacman water cargo transport/concrete mixing tractor crane dump truck

Product Overview

A dump truck is designed with an elevated front-end box that allows contents to be dumped out the back. These trucks are typically used for hauling construction waste, sand, gravel, and similar materials.

SHACMAN dump trucks feature 5 series - X3000, F3000, H3000, F2000, and L3000 - to meet diverse customer requirements. With multiple configurations available, from standard tippers to highly specialized vehicles for demanding jobs, SHACMAN provides comprehensive solutions for all your heavy-duty transportation needs.

Technical Specifications

Parameter	Specification
Model Name	H3000 6x4 Dump Truck
Model Number	SX3258MT384C
Driver Position	Left Hand
Engine	ISM11E5 385
Emission Standard	Euro5
Transmission	10JSD180+QH50
Truck-axle Speed Ratio	16T HD Twin-Stage 5.92
Wheel Base (mm)	3775+1400
Front Axle	9.5T
Suspension	Front Rear multiple-leaf spring Four main slices+four Riding Bolts
Fuel Tank	400L aluminium alloy
Tyre	12.00R20 (Mixed Pattern)

Standard Configurations

H3000 Standard cab deflector without roof, Hydraulic main seat, Rod-type rearview mirror, Single refrigeration air conditioner, Electric window shaking machine, Manual flip, Metal bumper, Two-stage boarding pedal, Ordinary air filter, Ordinary exhaust, Water tank protection grating, Taillight protection grille, 165Ah maintenance free battery, Four-point hydraulic mounting, Circular curtain, Cab rear window, SHACMAN identification, Gold characters and gold labels, Backup alarm, 32T jack

Upbody Specifications

5600x2300x1200 Bottom 10 Side 8 matts

Customization Options

Engine

Available with Weichai or Cummins engines. Cummins offers superior performance but requires specialized maintenance. Weichai provides strong power with easier maintenance capabilities.

Gearbox

Options include FAST manual and EATON ATM transmissions to suit different operational requirements.

Lifting System

Choose between HYVA and Chinese brand lifting systems based on your performance and budget needs.

Dumper Size

Customizable height and thickness dimensions to match specific load capacity requirements.

Cab Options

Available in F3000, H3000, and X3000 series. X3000 offers premium features, F3000 is the most popular, and H3000 provides cost-effective solutions.

Tire Customization

Various tire options available to suit different terrain and load conditions.

Oil Tank

Customizable fuel tank capacities to meet specific operational range requirements.

Color Options

Available in White, Red, Orange, Green, and Blue finishes.

Additional Spares

Optional accessories including cameras, daylight running lights, and other specialized equipment.

Manufacturer Profile

Shacman Customize Power Cargo Transport Spray Tractor Telescopic Arm Crane Dump Truck 1

Shaanxi Hexin Shenghua Trading Co., Ltd is a global export authorized enterprise of Shaanxi Automobile heavy truck. As the largest export authorized enterprise in SHACMAN heavy truck sales and service countries, our core business focuses on vehicle production customization services.

Our development philosophy centers on professionalism, innovation, and long-term vision, with 20 years of specialized focus on foreign trade. Established on September 20, 2019, we primarily engage in the integrated export of Shaanxi Automobile heavy trucks, construction machinery, and special vehicles.

Continuing the historic Silk Road business tradition, we actively expand international and domestic markets. Through strategic cooperation, we have established companies and sales outlets in Uzbekistan, Tajikistan, Kyrgyzstan, Vietnam, and other countries. Our foreign trade business radiates across Central Asia, Africa, Asia-Pacific, Central and South America, forming a comprehensive foreign trade export circulation system.
