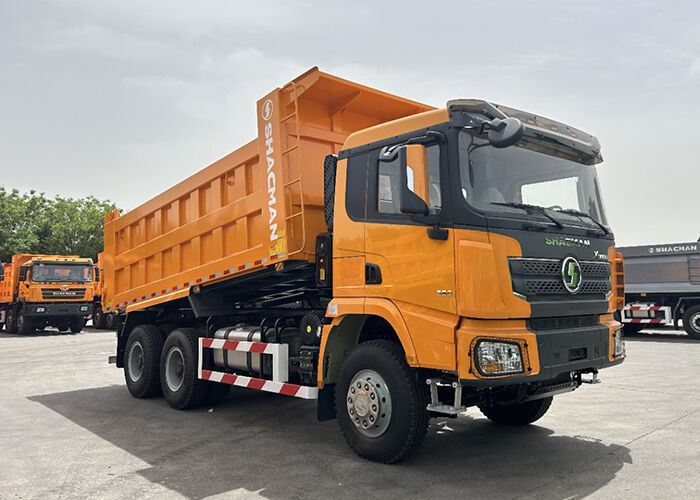

Sand Tipper Truck Hydraulic System Shacman 380-430hp Dump Truck
| Driving Style: | Left Hand Drive Or Right Hand Drive | Wheelbase: | 3775+1400mm |
| Max. Speed: | 70km/h | Engine Model: | CUMMINS/WEICHAI |
| Power: | 380HP/385HP | Emission Standard: | EURO III |
| Warranty: | 12 Months | Color: | Customer Request |
| High Light: | SHACMAN X3000 dump truck,6×4 dump truck for mining,340HP EURO III dump truck |
||
- Powertrain Synergy: "Golden Transmission System" combining Fastr gearbox and Hande axle achieves 96.5% transmission efficiency
- Structural Integrity: Four-saddle bolt balanced axle + engineering radial tires enhance adaptability to complex terrains
- Unloading Performance: Full-load hoisting time ≤18 seconds with 45° body floor angle, ensuring material residual rate <0.3%
- Smart Management: Optional onboard weighing and tracking system enables digital load and route management
- Regulatory Compliance: Meets China VI/Euro VI standards, available in RHD and with various regulatory adaptations
| Parameter | Model SX32556T384C | Model SX331852306C | Model SX32556T404 | Model SX33186V386 |
|---|---|---|---|---|
| Driving Type | 6x4 | 8x4 | 6x4 | 8x4 |
| Wheelbase | 3775+1400mm | 1800+2975+1400mm | 3975+1400mm | 1800+3775+1400mm |
| Max. Speed | 70km/h | 75km/h | 75km/h | 75km/h |
| Engine Model | CUMMINS | CUMMINS | WEICHAI | WEICHAI |
| Emission Standard | EURO III | EURO II | EURO II | EURO V |
| Power | 283KW/385HP | 382KW/520HP | 279KW/380HP | 316KW/430HP |
| Transmission | FAST | FAST | FAST | FAST |
| Fuel Tank | 400L Aluminum alloy | 300L Aluminum alloy | 400L Aluminum alloy | 500L Aluminum alloy |
| Wheels and Tires | 12.00R20 10+1 | 12.00R24 12+1 | 12.00R20 | 315-80R22.5 TR918 20 |
| Upbody Size | 5600x2300x1500mm | 6500x2300x1600mm (U-shaped) | 5800x2300x1700mm (U-shaped) | 7600x2300x1500+500mm |
- Large construction sites and infrastructure projects
- Mining area material transport and logistics
- Road engineering and earthmoving operations
- Industrial bulk hauling and material handling
- Sand, gravel, earth: Heavy cargo, requires extremely high vehicle load-bearing capacity and strength
- Coal, ore: Heavy cargo, potentially corrosive, requires high wear resistance for the truck body's steel plate thickness
- Construction waste, muck: Contains various debris, can impact the body, requires high strength and sometimes covered/sealed tops
- Grain, feed: Lightweight bulk cargo, requires high volume and sealing for the body, relatively lower demand on load-bearing capacity
- Highway/Urban roads: High requirements for environmental protection, noise, emission regulations; often requires U-shaped environmentally friendly containers (non-stick, clean unloading)
- Construction sites, mining areas, unpaved roads: Harsh conditions, require extremely high passability and reliability from the chassis; need an engineering version chassis (reinforced frame, engineering axles, off-road tires)
- Mountainous/Hilly areas: High requirements for engine horsepower, torque, and brake cooling systems (hydraulic retarder)
