| Brand Name: | SHACMAN |
| Model Number: | F3000 6×4 Dump Truck |
1. Product Attribute Table
| Attribute Item | Specification Content |
|---|---|

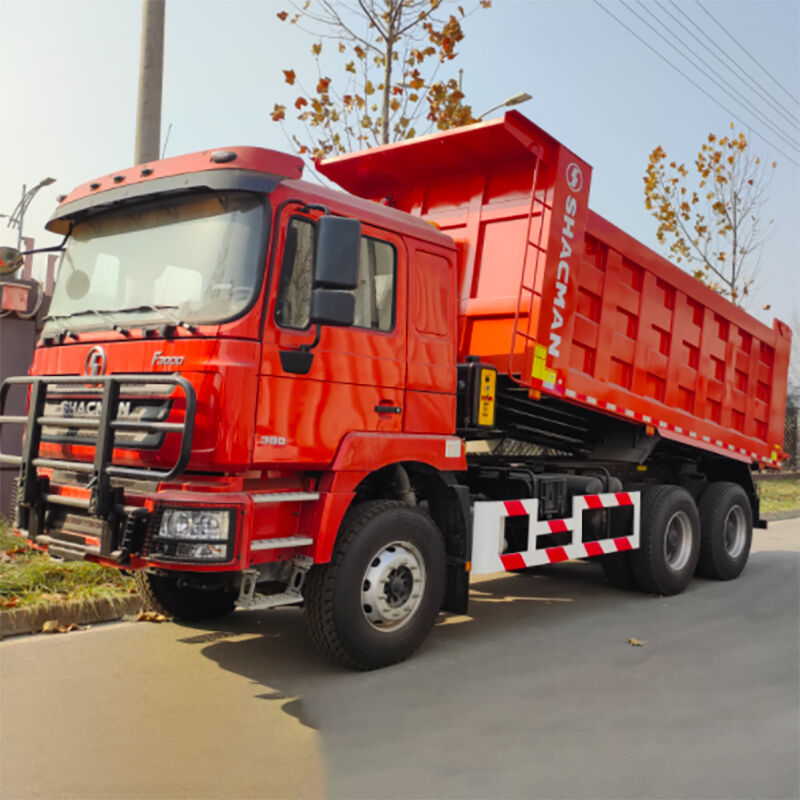

| Product Name | 6*4 Heavy Duty Dump / Tipper Truck |
| Brand | SHACMAN |
| Platform | F3000 |
| Version | Standard Mining Version |
| Drive Mode | 6*4 |
| Engine Model | WP10.336E32 |
| Rated Power | 336HP |
| Emission Standard | Euro 2/3 |
| Transmission | 10-speed Manual with PTO |
| Rear Axle | 16T Double Reduction Axle |
| Front Axle | HD 9.5 Ton |
| Wheelbase | 3775+1400 mm |
| Frame Dimension | 850*300 mm |
| Fuel Tank | 500L Aluminum Alloy |
| Max Speed | 90 km/h |
| Cab Type | Medium-long Flat Roof Cab |
| Suspension | Multi-leaf Spring (Front & Rear) |
| Tire Spec | 12.00R20 Mixed Pattern |
| Cargo Box Size | 5400*2300*1100 mm |
Equipped with F3000 medium-long flat roof cab, hydraulic driver seat, standard rearview mirrors, electronically controlled air conditioner, electric window regulators and manual cab tilting mechanism. Fitted with metal bumper with lamp protection mesh, three-stage boarding steps, single oil bath air filter, standard exhaust system, water tank guard grille, tail lamp protective grille, rear stabilizer bar and 180Ah maintenance-free battery. The WP10.336E32 engine delivers strong low-end torque — pulls loaded from idle without needing to rev high, which is what you want crawling around a mine site all day.
Comes with WABCO 4-channel ABS, iron air reservoir, reverse buzzer, 2KG fire extinguisher, daytime running lights, deluxe on-board tool kit, work lamps and safety belts. Standard export packaging with full English/Spanish documentation. Custom paint, chassis reinforcement and regional compliance packages available on request.
Optional 12-speed transmission with QH50 PTO, 600L aluminum alloy fuel tank, heavy-duty mining tires, rear underrun protection structure, cab rollover protection, and other customized parts per destination market requirements.
