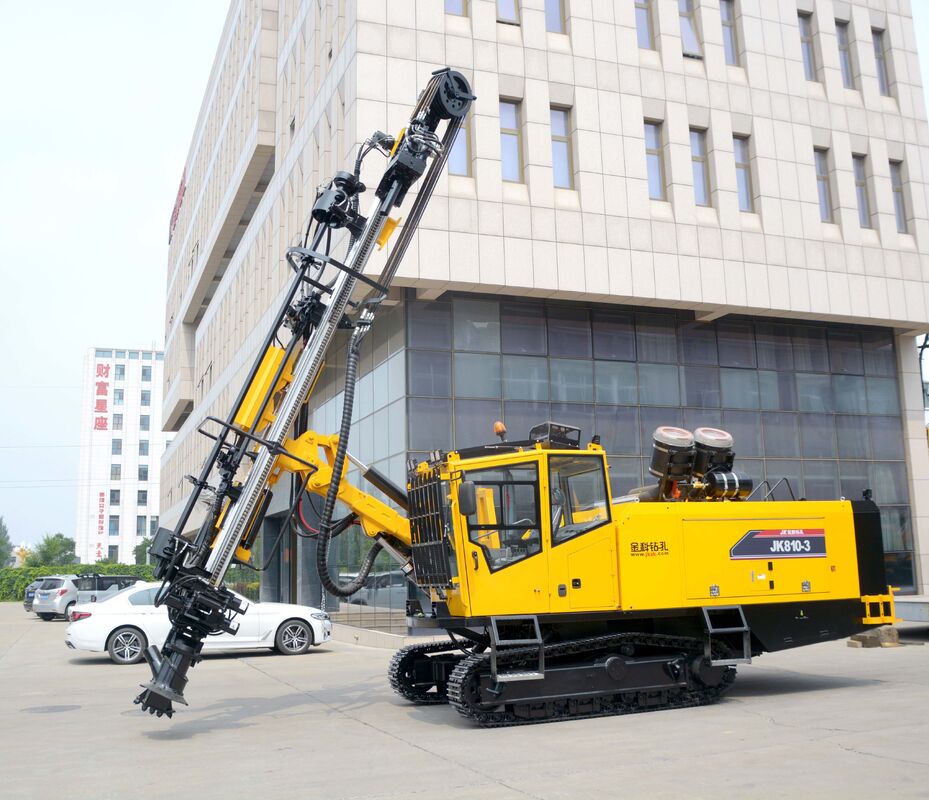

The JK810 is our workhorse crawler-mounted down-the-hole drill rig. We build it for quarries and mines that need to put holes in hard rock day after day. It runs on a single diesel engine that drives both the tracks and the onboard screw compressor -- no separate air supply, no tow vehicle, no extra crew. One guy can move it into position, level the mast, and start drilling in under ten minutes. We have units working in granite quarries, limestone mines, construction sites, solar farm pile installations, and water well projects across China, Central Asia, Southeast Asia, and Africa.
Engine, compressor, hydraulic pack, and mast all mounted on a single crawler base. Drive it to the bench, fire it up, start drilling. No hoses to connect, no separate compressor to tow, no setup delays.
Covers all the common blast hole sizes for quarry and mining work. Works with standard 3-inch and 4-inch DTH hammers. The mast handles 3-meter drill rods with an automatic loader so you do not need a second man for rod handling.
350mm wide steel tracks with independent hydraulic drive. Climbs 30-degree slopes, handles loose gravel, mud, and uneven quarry floors. Low ground pressure means it stays on top of soft ground instead of sinking in.
Heavy steel crawler frame with a reinforced belly plate. The DTH hammer delivers fast penetration in granite, basalt, and limestone. We size the compressor to match the hammer requirements so you get consistent hole quality without the hammer bogging down.
Swap the hammer and bit and you can use the same machine for solar pile foundation drilling, slope anchor installation, or water well drilling. We have customers who use one JK810 for three different applications across their projects.
We use standard industrial components that you can source locally. Filters, hoses, track shoes, hammer service kits -- all standard sizes. We ship a starter spares kit with every machine so you are covered for the first few months.
| Item | JK810 Data |
|---|---|
| Machine weight | 6,200 kg |
| Hole diameter range | 90 - 140 mm |
| Max drilling depth | 60 m (with 3m rods, depends on hammer and rock) |
| Drill rod length | 3,000 mm per section |
| DTH hammer class | 3-inch and 4-inch |
| Power | Turbocharged diesel engine, electric start |
| Air compressor | Built-in rotary screw, oil-injected, air-cooled |
| Working pressure | 1.0 - 2.5 MPa (adjustable to suit hammer and rock) |
| Travel drive | Independent hydraulic track motors, left and right |
| Track shoe width | 350 mm, heavy-duty steel construction |
| Ground pressure | About 0.05 MPa |
| Gradeability | Up to 30 degrees on firm ground |
| Travel speed | 0 - 2.5 km/h (low gear, high torque) |
| Mast tilt range | 0 to 90 degrees forward, +/-45 degrees side swing |
| Rod handling | Hydraulic auto-loader with carousel |
| Fuel tank | 120 liters (typically lasts a full shift) |
| Hydraulic tank | 180 liters with return filter and oil cooler |
| Dust suppression | Choose dry cyclone dust collector or water injection system |
| Operating temperature | -15 to 45 degrees Celsius (cold-start kit available) |
| Max altitude | 3,000 m (high-altitude turbo kit available for higher sites) |
| Safety | Emergency stop, FOPS/ROPS canopy, hose protection sleeves, lockable panel |
| Rock type | How fast it drills | Recommended bit size |
|---|---|---|
| Soft limestone, shale, marl | 0.8 - 1.5 meters per minute | 105 - 140 mm |
| Medium sandstone, dolomite | 0.5 - 0.9 meters per minute | 90 - 115 mm |
| Hard granite, basalt, gabbro | 0.2 - 0.5 meters per minute | 90 - 105 mm |
| Very hard quartzite, gneiss | 0.1 - 0.3 meters per minute | 90 - 105 mm |
| Broken, fractured, weathered rock | 0.4 - 0.8 meters per minute | 105 - 140 mm |
These are real numbers from our customers in the field. Actual speed depends on your rock conditions, bit condition, operator experience, and air pressure settings. Harder rock and deeper holes will slow things down.
| Dimension | Measurement |
|---|---|
| Length, mast folded (transport) | About 5,800 mm |
| Width (transport) | About 2,200 mm |
| Height, mast folded (transport) | About 2,800 mm |
| Height, mast raised (working) | About 7,500 mm |
| Ground clearance | About 350 mm under belly plate |
Production drilling in granite, limestone, and hard rock quarries. Holes from a few meters to 60 meters for bench blasting and aggregate production.
Blast hole patterns in iron ore, copper, gold, and aggregate mines. Handles the continuous daily drilling output that mining operations need.
Rock excavation drilling for highway cuts, railway tunnel approaches, bridge foundation preparation, and dam abutment work.
Drilling holes for ground-mount solar panel support piles. Works on hillsides and uneven terrain where truck-mounted rigs cannot reach.
Installing rock bolts, soil nails, and anchor tendons for landslide prevention, retaining walls, and rockfall protection systems.
Agricultural irrigation wells, rural community water supply boreholes. Handles soil, weathered rock, and soft-to-medium rock formations.
We can load into a 40ft high-cube container (mast and tracks removed), flat-rack container (machine stays assembled), or Ro-Ro vessel (drive it on, drive it off at destination). We apply anti-corrosion treatment before packing and provide full export documents.
35 to 55 working days from order confirmation and deposit for standard configuration. Custom specs add about two weeks. We can ship spare parts ahead of the machine if you need them sooner.
12 months or 2,000 operating hours from commissioning, whichever comes first. Covers engine, compressor, hydraulics, and structure. We keep spare parts in stock for express dispatch.
We ship a starter spares kit with every machine. We provide an English operation manual, a maintenance wall chart for your workshop, and video guides for common procedures. Remote support is available by video call when you need help troubleshooting.
If you are pricing a blast hole drilling rig for your quarry, mine, or construction project, send us your requirements. Tell us what rock you are drilling, what hole size and depth you need, and where the machine is going. We will put together a quote with the right JK810 configuration for your work, including shipping to your destination.
