| Brand Name: | SHACMAN |
| Model Number: | X3000 6X4 420HP |
| MOQ: | 1 Unit |
| Price: | Negotiable |
| Delivery Time: | 35-55 Working Days |
| Payment Terms: | T/T,L/C |

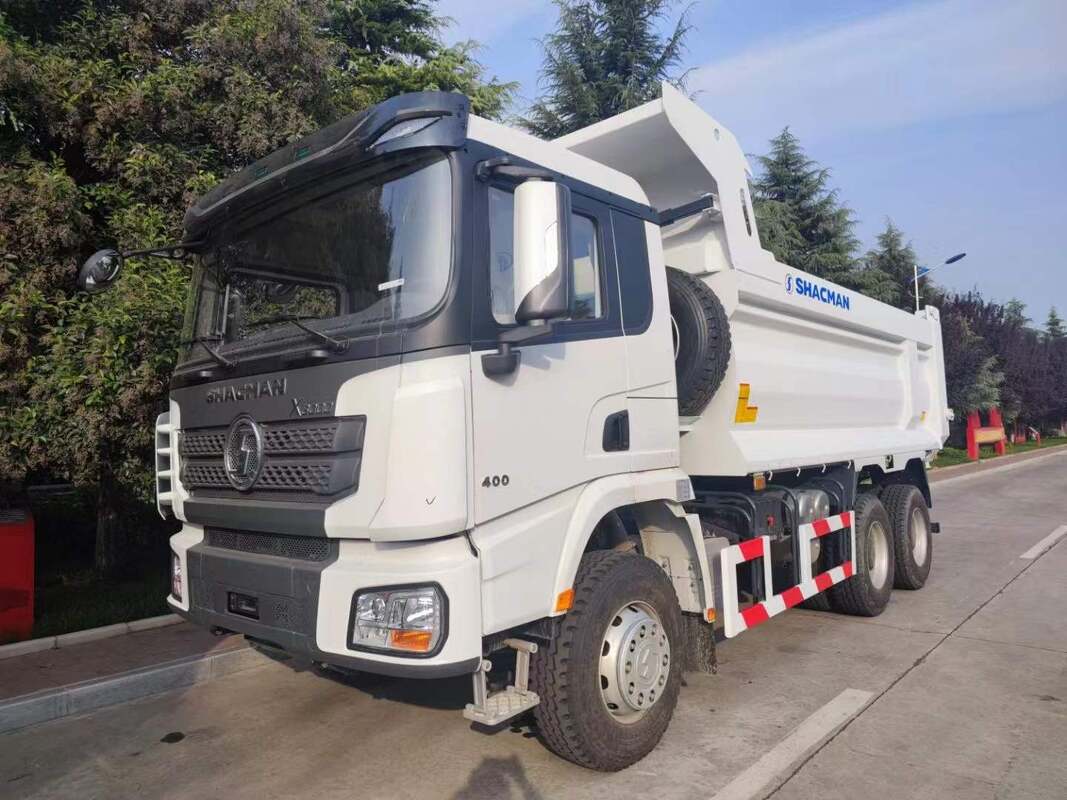

This is the high-power version of the Shacman X3000 6X4 dump truck — 420HP Weichai engine with mining-spec reinforcement throughout. We spec this model for customers running deep open-pit mines, steep quarry ramps, or continuous 24-hour haul cycles where a standard truck just wears out too fast.
| Engine | Weichai 420HP Diesel |
| Emission | EURO III / EURO V |
| Drive Type | 6X4 |
| Transmission | FAST Manual 12-Speed |
| Wheelbase | 3975+1400mm |
| Fuel Tank | 400L Aluminum Alloy |
| Frame | 850*300*(8+8)mm Double Layer |
| Tires | 12.00R20 mining spec, 10+1 |
| Cargo Box | 5800*2300*1500mm (reinforced) |
| Warranty | 12 Months |
Is the mining spec worth the extra cost?
If you are doing serious mining — steep grades, rocky terrain, long shifts — yes. The reinforced frame and axles alone will save you from cracked chassis rails and axle failures that put trucks out of service for weeks. We have customers who run 3 shifts in copper mines with these specs.
What emission level is available?
We can do EURO III or EURO V depending on your country regulations. EURO V costs more but is mandatory in some markets now.
Need a quote for your mining operation? Send us a message with your site conditions and expected monthly haul volume — we will recommend the right configuration.
