Drilling Rig Machine
Created with Pixso. JK1300 Skid-Mounted Water Well Drilling Rig, 300-Meter Drilling Depth

JK1300 Skid-Mounted Water Well Drilling Rig, 300-Meter Drilling Depth

Brand Name: JK
Model Number: JK1300
MOQ: 1 Set
Price: Negotiable
Payment Terms: T/T,L/C,Western Union
Detail Information
Place of Origin:
China
Certification:
ISO 9001, CE
Drilling Depth:
300m
Hole Diameter:
105-350mm
Mast Height:
11m
Engine Power:
336HP Diesel (standalone)
Mounting Type:
Steel Skid Base
Mud Pump:
BW850
Rotary Torque:
12KN.m
Lifting Capacity:
13T
Skid Dimensions:
6.2m X 2.4m
Drill Pipe:
89mm X 6m
Weight:
11T (rig Only)
Packaging Details:
Rig on skid base loaded flat rack container, pump and pipes in separate crates, steel surfaces greased
Supply Ability:
40 Sets per Month
Highlight:

JK1300 skid-mounted drilling rig

,

300-meter depth water well rig

,

skid-mounted water well drilling machine

Product Description

Some customers already have trucks or want to mount the rig on a used chassis to save money. This is the JK1300 rig unit on its own, mounted on a heavy steel skid base.

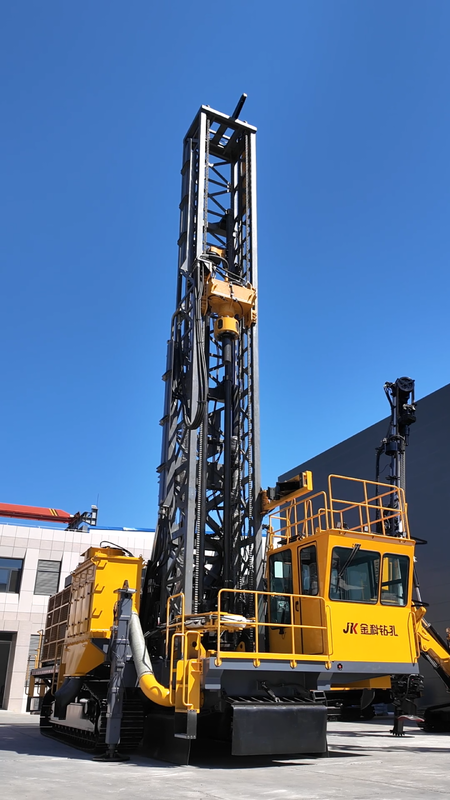

JK1300 Drilling Rig Series Overview JK1300 Dust Collection System Side View JK1300 Water Well Drilling Rig Detail Shot

What you get:

  • Complete JK1300 drilling assembly - mast, rotary table, hydraulic system, control panel
  • Steel skid base with mounting holes pre-drilled for HOWO, Shacman and ISUZU patterns
  • BW850 mud pump with hoses
  • 100m of 89mm drill pipes
  • Standard bit set
  • Engine and hydraulic power pack mounted on skid
  • Mounting manual with bolt patterns and torque specs

Skid is 6.2m long, 2.4m wide, weighs about 11 tons. You need a truck with at least 15 ton payload, chassis length 6.5m minimum.

Big advantage: import paperwork is simpler. In many countries importing equipment is easier than importing a complete vehicle. No vehicle age restrictions, left/right hand drive issues, or homologation. Clear as industrial equipment and mount on your local truck. Takes a mechanic about 2-3 days with the manual.
