| Brand Name: | Jinke |
| Model Number: | JK810 |
| MOQ: | 1 Unit |
| Price: | Negotiable |
| Delivery Time: | 35-55 Working Days |
| Payment Terms: | T/T,L/C |

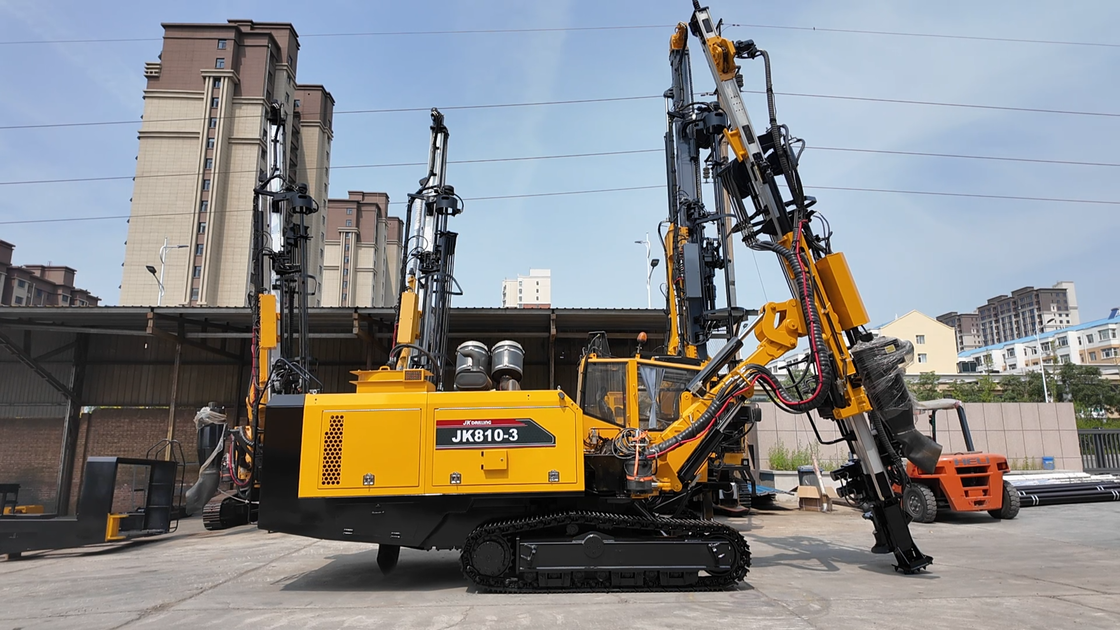

The JK810 is our crawler drilling rig that most customers buy for water wells. It drills 90 to 140 mm holes and goes down about 60 meters with a 3-inch or 4-inch DTH hammer. Farmers use it for irrigation wells, villages use it for drinking water boreholes, and contractors use it for dewatering and small geotech jobs.
Everything is on one machine. The diesel engine, the screw compressor, the hydraulic pack and the mast all sit on a single crawler base. You drive it to the spot, level the mast, and start drilling. There is no separate compressor to tow and no long air hose to connect. One operator handles the whole job, including adding and removing the 3-meter drill rods with the hydraulic loader.
| Item | Data |
|---|---|
| Hole diameter | 90 - 140 mm |
| Max drilling depth | 60 m |
| Drill rod length | 3,000 mm per section |
| DTH hammer class | 3-inch and 4-inch |
| Machine weight | 6,200 kg |
| Power | Turbocharged diesel, electric start |
| Compressor | Built-in rotary screw, oil-injected, air-cooled |
| Working pressure | 1.0 - 2.5 MPa |
| Track shoe width | 350 mm heavy-duty steel |
| Gradeability | Up to 30 degrees |
| Rod handling | Hydraulic auto-loader with carousel |
| Dust control | Dry cyclone collector or water injection |
We quote each order against the rock you are drilling and the depth you need. Tell us your borehole diameter, target depth, and what the ground is like, and we will spec the hammer, bit and rod package to match. We ship a starter spares kit with every machine, plus an English manual and video guides. Warranty is 12 months or 2,000 hours.
Delivery runs about 35 to 55 working days. We load into a 40ft high-cube container, flat-rack, or Ro-Ro vessel, and handle the full export documents. If you are drilling water wells in Africa, Southeast Asia, Central Asia or South America, we have most likely shipped there before.
Send us your project details and we will put a quote together with shipping to your port.
