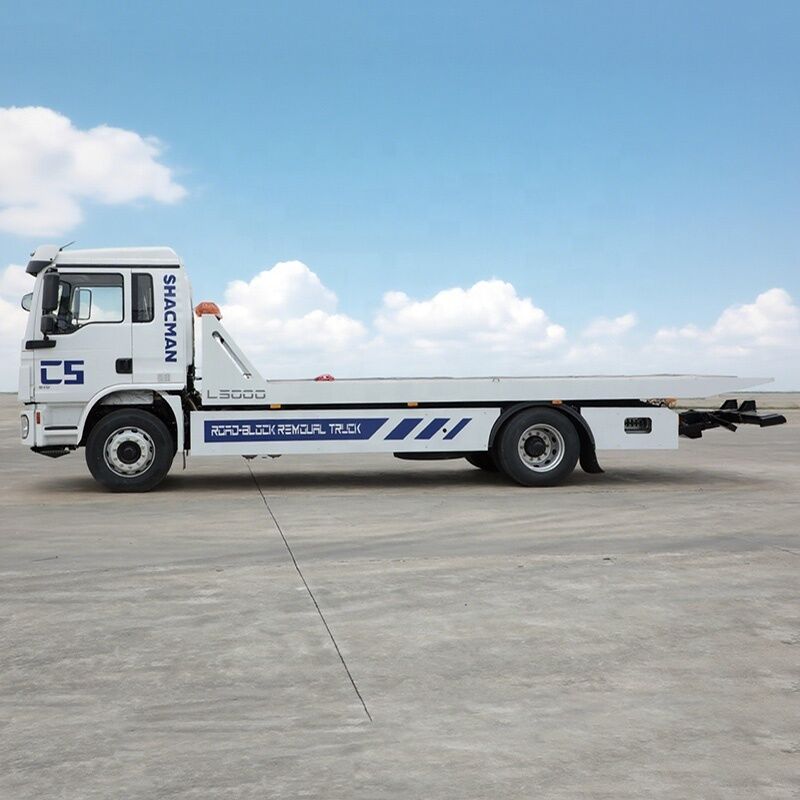

SHACMAN Rollback Towing Truck 4x2 10 Tons Winch Rear Lifting Recover Vehicles
Basic Properties
Place of Origin:
Shaanxi, China
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
US$18,700-29,500
Specifications
| Fuel Type: | Diesel | Emission Standard: | Euro 2 |
| Condition: | New | Transmission Type: | Manual |
| Dimensions (L x W x H) (mm): | 9250x2500x2410mm | Product name: | Lifting Recover Vehicles Flatbed Bed Underlift Wreckers Tow Truck |
| Drive Model: | 4x2 | Max. driving speed: | 90km/h |
| Wheelbase: | 5000mm | Max. Loading Capacity: | 10000kg |
| Gearbox: | 5 Forwards & 1 Reverse | Fuel tank: | 200L |
| Steel wire rope: | 45m Length, 26mm Diameter, 5m/min | Warranty: | 1 Year |
| Color: | Customer's Request | ||
| High Light: | Rollback Towing Truck 4x2,Rollback Towing Truck 10 Tons |
||
Product Description
SHACMAN L3000S Series Tow Wrecker Trucks
The full name of wrecker is road wrecker, also known as trailer vehicle, road rescue vehicle and towing vehicle. The wreckers have many functions, such as lifting, pulling and lifting traction. The wrecker is mainly used for road fault vehicles, urban illegal vehicles and emergency rescue, etc.
According to the categories, the wrecker can be divided into tow-lift integrated type, tow-lift separated type, one-tow-one type, flatbed one-tow-two type, multifunctional wrecker and hydraulic automatic clamping type.
According to the traction tonnage, the wrecker is divided into 2 tons, 3 tons, 5 tons, 8 tons, 10 tons, 15 tons, 25 tons, 30 tons, 50 tons and 60 tons according to the traction tonnage.
|
Difficult Problem
|
Solutions
|
|
1. Low rescue efficiency, time-consuming
|
High-efficiency hydraulic system + multi-functional rescue arm for fast towing.
|
|
2. Frequent equipment failures, high maintenance costs
|
Imported core components + SHACMAN original chassis, reliable quality, low failure rate.
|
|
3. Complex operation, requiring professional personnel
|
Intelligent PLC control system + simple interface, easy for new operators.
|
|
4. Poor adaptability to complex road conditions
|
Powerful power + solid chassis, suitable for mountains, muddy roads, etc.
|
|
Truck Brand
|
SHACMAN L3000S Series Tow Truck Wrecker
|
|
|
|
Drive Model
|
4x2
|
|
|
|
Max. driving speed
|
90km/h
|
|
|
|
Vehicle Main Dimensions
|
Dimensions
|
9250x2500x2410mm
|
|
|
|
Wheel base
|
5000mm
|
|
|
|
Curb Weight
|
8990kg
|
|
|
|
Gross Vehicle Weight
|
12000kg
|
|
|
Engine
|
Model
|
WP6.210E32
|
|
|
|
Horse Power
|
210HP
|
|
|
|
Emission Standard
|
Euro 2
|
|
|
Gearbox
|
5 forwards & 1 reverse
|
|
|
|
Fuel Tank
|
200L
|
|
|
|
Tire
|
10.00R20 6pcs + 1 spare tire
|
|
|
|
|
Flatbed Size
|
6750x2450mm
|
|
|
|
Max. Loading Capacity
|
10000kg
|
|
|
|
Underlift Max lifting Capacity
|
10000kg
|
|
|
|
Quantity of Winch
|
1
|
|
|
|
Winch Rating Pulling Capacity
|
10000kg
|
|
|
|
Length of steel
|
45m
|
|
|
Other Equipment
|
One tool box, one alarm lamp, two auxiliary wheels and 4 bandages
|
|
|
Henan Senyao Heavy Truck International Trade Co., Ltd. is mainly engaged in the export integration of Shaanxi Automobile Heavy Truck, special vehicles and construction machinery, and is a global export authorization enterprise of Shaanxi Automobile Heavy Truck. We always adhere to the strategic policy of "mutual benefit, honesty and win-win", and build a huge sales network in Central Asia, Africa, Central and South America with excellent brand advantages and our own perfect procurement and supply system. With an annual export capacity of more than 3,000 sets, Senyao's product quality and service have been well received by customers at home and abroad. Military quality, professional export, looking forward to long-term cooperation with you!
Quality Assurance
12-month warranty without mileage limit. 3,000-hour engine reliability test. 1,000,000 km chassis endurance test. ISO 9001 certified manufacturing process. Comprehensive pre-delivery inspection.
1.Professional export packaging: Weather-proof and secure. 2.Multiple shipping methods: RORO, container, or bulk vessel. 3. Worldwide deliver: Experience in shipping to 50+ countries. 4. Documentation support: Complete export documentation provided.
Step 1: Define Your Requirements
1. What is the primary target of wrecker truck operations? (1) Mostly passenger cars? Or SUVs, minivans? (2) Is there a need to transport medium-duty trucks or buses? (3) Will you occasionally encounter accident vehicles (low chassis, might not allow normal towing)?
2. In what environment will you primarily be operating? (1) City roads: High requirements for vehicle size and flexibility. (2) Highways: Very high requirements for power, speed, and reliability; need quick clearance. (3) Mountainous/hilly areas: High requirements for engine horsepower and climbing ability. (4) Recovery company/4S shop: Diverse operations might require a multi-purpose vehicle.
3. What is the budget range? The tow truck prices range from over $25,000 to $400,000. Defining your budget can significantly narrow down your choices.
4. Who will be the driver and operator? What is the technical level of the operator? If inexperienced, prioritize models that are easier to operate and have a higher degree of automation.
Step 2: Confirm the Product Details
A. About Wrecker Vehicle Type and Function 1.There are mainly flatbed and integrated wrecker types of tow trucks. Which type is more suitable for my needs? (1) Flatbed Wrecker: Mainly used for transporting disabled vehicles by pulling them onto a hydraulic platform. Suitable for cars, SUVs, etc., causes less damage to vehicles, and is currently the mainstream choice. (2) Integrated Wrecker (With Boom/Lift): Can use the flatbed and a boom to lift one end of the vehicle for removal. More functional, suitable for handling accident vehicles, illegally parked cars, and complex situations. But more expensive and complex to operate.
2. What is the maximum lifting capacity (kg) and maximum towing capacity (kg) of this model? (1) Lifting capacity: Refers to the weight the wrecker's rear arm can lift. (2) Towing capacity: Refers to the total weight it can pull.
3. What brand are the core components of the upper assembly? The "upper assembly" refers to the towing apparatus above the truck chassis. The brand of core components like the hydraulic system, pump, and control valves is crucial, directly determining reliability and lifespan. Well-known brands (e.g., imported like Hyder, domestic like Jiafeng) are more reliable but also more expensive.
Tow-lift Integrated Type Wrecker Truck
Flatbed One-Tow-Two Type Wrecker Truck
Tow-lift One-Tow-One Type Wrecker Truck
B. About Chassis and Performance
1. What brand and model is the chassis? (e.g., Shacman, Dongfeng, FAW, Sinotruk, Foton, etc.) The chassis is the foundation of the vehicle, directly affecting the driving experience, fuel consumption, and durability. Choose mainstream major brands for better after-sales service network and easier maintenance. 2. What is the engine horsepower? What is the emission standard? Higher horsepower means more power, suitable for mountainous areas and heavy loads. The emission standard must comply with your local regulations (Euro 2, Euro 3, Euro 5?). 3. What is the wheelbase of the vehicle? A shorter wheelbase means a smaller turning radius, making the vehicle more agile, suitable for urban areas. A longer wheelbase offers more stable driving, suitable for highways.
Q1: Can your wrecker truck be customized according to my needs? A: Yes. We provide comprehensive customization services, including towing capacity (10-50 tons), chassis model, rescue equipment (winch, lifting platform), and color. You just need to tell us your specific requirements, and we will provide a customized solution for you. Q2: What is the delivery time of the wrecker truck? A: For standard models: 15-25 working days. For customized models: 30-45 working days, depending on the complexity of customization. Q3: Do you provide after-sales service? A: Yes. We provide a 1-year warranty for the whole vehicle (excluding wearing parts). During the warranty period, we will send replacement parts for free if there is a quality problem. In addition, we have 24-hour online technical support to help you solve problems in time. Q4: What is the payment method for the wrecker truck? A: We accept T/T, L/C, Western Union, and Alibaba Trade Assurance. For T/T, we usually require a 30% advance payment, and the balance is paid before shipment. Q5: Can you arrange transportation? A: Yes. We have long-term cooperative logistics companies, which can provide sea freight, land freight, and air freight services. We will help you choose the most cost-effective transportation method according to your location. Q6: How to operate the wrecker truck? Do you provide training? A: We will provide a detailed operation manual (in English) with the vehicle. In addition, we can arrange online training for your operators. If you need on-site training, we can send technicians to your location (additional fees may apply). Q7: What is the fuel consumption of the wrecker truck? A: The fuel consumption depends on the engine model, load, and road conditions. Generally, it is 25-35L/100km. We will provide the specific fuel consumption data according to the model you choose. Q8: Can the wreckers operate in extreme weather conditions? A: Yes, our wreckers are designed to operate in various weather conditions, with optional cold weather packages available for extreme environments.
