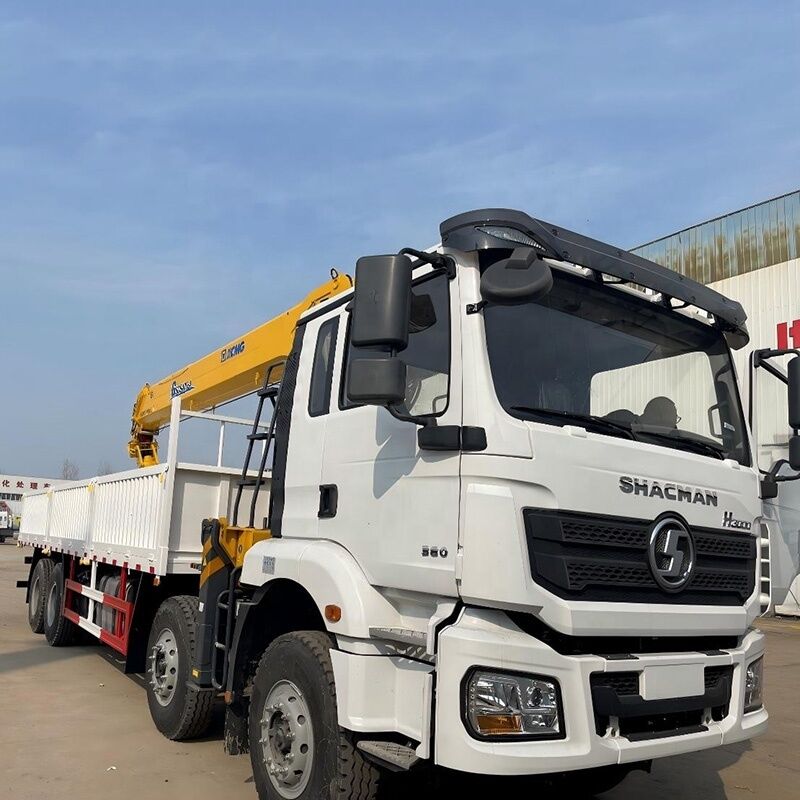

OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane

Basic Properties
Place of Origin: SHAANXI,XIAN
Brand Name: SHACMAN
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Tags

8x4 Hydraulic Arm Crane

ODM Hydraulic Arm Crane

16T Dump Truck With Crane
Specifications
Color: Blue, Green, Yellow, White Rated Lifting Moment: 430kN.m
Max. Lifting Height: 23.1m Engine Brand: Weichai
Weight (KG): 6880 Kg Oil Flow Volume: 80+50L/min
Max. Speed: 90km/h Emission Standard: EURO 2
High Light:

8x4 Hydraulic Arm Crane

,

ODM Hydraulic Arm Crane

,

16T Dump Truck With Crane
Product Description
SHACMAN H3000 8x4 16T Hydraulic Arm Crane Truck
Professional OEM/ODM service for versatile truck-mounted crane solutions, widely used with SHACMAN dump trucks and available for sale in Dubai.
What is a Crane Truck?
A crane truck, also known as a truck-mounted crane, is a specialized vehicle equipped with a hydraulic lifting and telescoping system. This integrated solution enables efficient lifting, swiveling, and transportation of heavy loads, combining cargo transport and lifting capabilities in a single mobile unit.
Applications
Crane trucks serve multiple industries including construction sites for material hoisting, warehouses for handling bulky goods, ports and terminals for container operations, logistics for cargo positioning, and emergency rescue scenarios.
Available Crane Truck Configurations
Truck Chassis Options
Standard SHACMAN chassis with alternatives including Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, BEIBEN, JAC, and JMC available upon request.
Driving Configurations
Multiple drive types: 4x2, 4x4, 6x4, 6x6, and 8x4 to accommodate various road conditions from urban streets to off-road sites.
Emission Standards
Compliant with Euro II, Euro III, Euro V, and Euro VI regulations for global market compatibility.
Crane Brands
Equipped with reliable cranes from leading manufacturers: XCMG, SANY, Palfinger, and UNIC.
Lifting Capacities
Comprehensive range from 2 tons to 20 tons: 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 18T, 20T.
Crane Structural Designs
Straight-arm and folding-arm crane options. Folding-arm models offer enhanced operational flexibility at a premium price point.
Cargo Box Dimensions
Fully customizable cargo box sizes with professional recommendations available from our engineering team.
OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane 0 OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane 1
Technical Specifications
Category Specification 4x2 6x4 8x4
Chassis Engine WP10.300E22 WP10.340E22 WP10.380E22
Power 300hp 340hp 380hp
Emission Standard EURO Ⅱ EURO Ⅱ EURO Ⅱ
Frame 870x300(8+5)mm 870x300(8+5+8)mm 870x300(8+5+8)mm
Wheelbase 5600mm 5775+1400mm 2100+4575+1400mm
Vehicle Speed Ratio 16T HD dual-stage 4.769 16T HD dual-stage 4.769 16T HD dual-stage 5.262
Crane Max. Lifting Weight 5000/6300/7000kg 10000/12000kg 16000/18000/20000kg
Max. Lifting Torque 125/157.5/175kN*m 260/300kN*m 430/470/520kN*m
Max. Working Radius 11.2-13.5m 14.5-21.77m 21.77-23.7m
Max. Lifting Height 12.7-15.3m 16.3-23.1m 24.1-26.4m
Luffing Range 0°～75° 0°～75° 0°～75°
Slewing Angle 360° full turn 360° full turn 360° full turn
Max. Operating Pressure 22/23MPa 26/28Mpa 28Mpa
Oil Flow Volume 63L/min 63+50L/min 80+50L/min
Crane Crane Weight 2200/2330/2420kg 3693/4300kg 6880/6970/7600kg
OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane 2 OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane 3 OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane 4 OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane 5 OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane 6 OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane 7 OEM ODM H3000 8x4 16T Hydraulic Arm Crane SHACMAN Dump Truck With Crane 8
