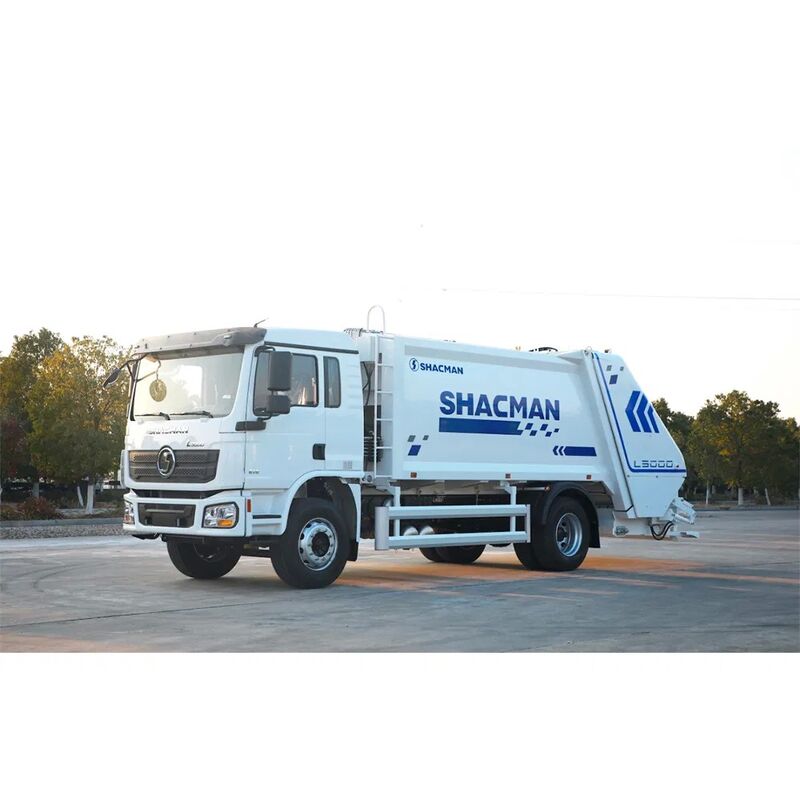

Customize Shacman Garbage Rubbish Litter Collect Compress Process Lorry Truck
| Model NO.: | L3000 Garbage Truck | Type: | Garbage Truck |
| Volume: | Customize | Emission Standard: | Euro 5 |
| Transmission Type: | Manual | Payload: | Customize |
| Fuel: | Diesel | Drive Wheel: | Customize |
| Brand: | Shacman | Models: | Customize |
| Usage: | Garbage Truck | Condition: | New |
| Engine: | Wp6.210e32 | Transmission: | 8js85te-C(Alumnium) |
| Front Axle: | 4.8t (Disc Brake) | Rear Axle: | 10t Single-Stage Bridge 4.625 |
| Fuel Tank: | 200L Iron Fuel Tank | Suspention: | Front And Rear Multiple Leaf Springs, Four Main P |
| Wheels: | 10.00r20 | Wheelbase(mm): | 5000mm |
| Frame(mm): | 870mm X 250mm 7+4 | Cabin: | L3000 Cab |
| Model: | Sx1255mn464 | Battery: | 135 Maintenance-Free Battery |
| Transport Package: | Roll -Roll | Trademark: | Shacman |
| Origin: | China | HS Code: | 87042391 |
| Production Capacity: | 800PCS/Per Day | ||
| High Light: | Shacman garbage truck compactor,customized rubbish collection lorry,compression process garbage truck |
||
Professional Shacman diesel engine garbage collection and compression processing lorry truck designed for efficient waste management operations.
A specialized dump truck featuring an elevated front-end box for efficient waste dumping. Ideal for construction waste, sand, gravel, and similar materials transportation.
SHACMAN offers 5 series (X3000, F3000, H3000, F2000, L3000) to meet diverse customer requirements. From standard tippers to specialized vehicles for demanding applications, SHACMAN provides comprehensive solutions tailored to your specific needs.
| Drive Type | 4X2 |
| Wheelbase | 4500/5000 |
| Effective Volume | 16m³ |
| Box Shape | Curved/Square Box Body |
| Box Material | Q355 High-Strength Steel |
| Edge Plate Thickness | 5mm |
| Bottom Plate Thickness | 5mm |
| Compression Ratio | ≥2.5 |
| Sewage Tank Capacity | 300L (Front) / 500L (Rear) |
| Filler Effective Volume | ≥1.8m³ |
| Filling Cycle Time | ≤25s |
| Filling Machine Lifting Time | ≤15s |
| Unload Garbage Time | ≤45s |
| Maximum Flipping Capacity | ≤500kg |
| Flipping Mechanism Time | ≤12s |
| Control Mode | Automatic + Manual + Wireless Remote Control |
| Control System | CAN-BUS Bus Control |
| Engine Power Control | Fully Automatic Control |
| Electronic Control System | CAN-BUS + Silicone Button Control Box |
| System Pressure | 18MPa |
| Multi-way Directional Valve | Yangzhou Zhongmei |
| Hydraulic Oil Pump | Hefei Changyuan Pump |
| Lift Cylinder Balance Valve | Yangzhou Zhongmei (Optional Imported) |
| Hydraulic Cylinder | Hunan Juge (Optional Yantai Future) |
| Tubing | 3-Layer Steel Wire Hose |
| Bucket Flipping Mechanism | Rear Tail with Flipping Mechanism |
| Bucket Types | 120/240/660/1100L Drums |
| Flipping Options | Triangle Bucket, Full Floor Bucket, Swing Arm Device |
| Side Protection | Aluminum Alloy/Carbon Steel |
| Front Bumper | Seamless Rectangular Tube |
| Paint Pre-treatment | Blasting |
| Paint Color | Customizable |
| Primer | Epoxy Primer (Rust Proof) |
| Finish | Acrylic Acid |
| Paint Brand | Xiangjiang |
| Paint Process | Electrophoresis + Baking Paint |
- Engine: Weichai or Cummins options available
- Gearbox: FAST manual or EATON ATM transmission systems
- Lifting System: HYVA or Chinese brand hydraulic systems
- Dumper Size: Customizable height and thickness dimensions
- Cab: F3000, H3000, or X3000 series options
- Tire: Custom tire specifications available
- Oil Tank: Custom oil tank configurations
- Color: White, Red, Orange, Green, Blue options
- Spares: Additional features like cameras, daylight systems
Delivery Time: Chassis arrives at factory within 15 working days
Vehicle After-Sales Service: 18 months comprehensive warranty
Shaanxi Hexin Shenghua Trading Co., Ltd is a global export authorized enterprise of Shaanxi Automobile heavy truck. As the largest export authorized enterprise in SHACMAN heavy truck sales and service, we specialize in vehicle production customization services.
With 20 years of professional focus on foreign trade, our company is committed to continuing the legacy of business along the Silk Road. We have established operations in Uzbekistan, Tajikistan, Kyrgyzstan, Vietnam, and other countries, serving markets across Central Asia, Africa, Asia-Pacific, and Central/South America.
