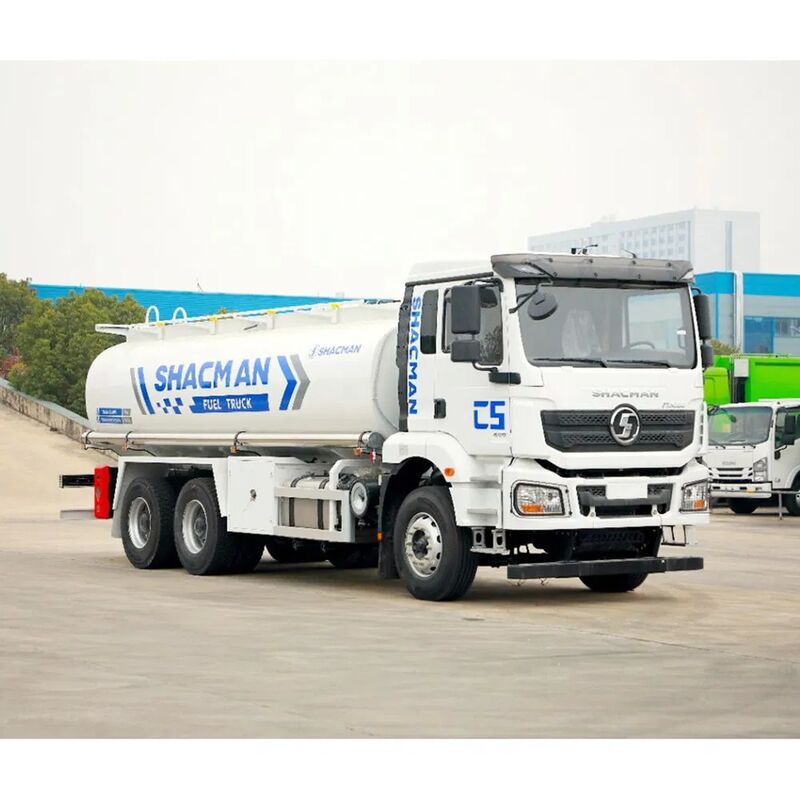

Shacman Oil Diesel / Gasoline Liquid Tank Truck For Industry Construction

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

special transport truck with warranty

Customized Tow X3000 8X4 wrecker truck

refrigeration box delivery van

Specifications

Model NO.:	Shacman H3000 Truck	Transmission Type:	Manual
Power:	Diesel	Load Capacity:	Customize
Emission Standard:	Euro 5	Tank Volume:	Customize
Drive Wheel:	Customize	Seats:	≤5
Horsepower:	Customize	Engine Capacity:	9.726
Storage:	Customize	Tire Certification:	ECE, GCC, ISO, DOT
Tire Design:	Bias	Condition:	New
Transportation:	By Truck	Technology:	Engin From Commins Us, Some From Weichai
Usage:	Transport Coal, Sands, Rocks.etc	Suspension:	Mechanical Suspension
Rear Axle:	16t	Front Axle:	Man9.5t
Transmission:	10/12 Speeds, Manual	Steering System:	Left Or Right Hand
Transport Package:	Roll-Roll Way	Trademark:	Shacman
Origin:	China	HS Code:	8704230090
Production Capacity:	800pieces/Year
High Light:	Diesel Liquid Tank Truck , Shacman Liquid Tank Truck , Construction Gasoline Tank Truck

Product Description

High performance Shacman Customized capacity water oil fuel tank transport lorry truck

A dump truck is a truck of which box can be elevated at the front end to allow its contents to be dumped out the back. A dump truck is typically used to haul construction waste, sand, gravel, and other similar items.
SHACMAN dump trucks have 5 series such as X3000,F3000,H3000,F2000,L3000 to meet different customer requires.With many configurations available to choose; from the standard tipper to highly specialized vehicles for tough job, SHACMAN has all that you need. No matter what the job entails, our qualified professionals can help you pick out the perfect vehicle.

Configuration parameters of oil tanker
Total Volume			20(m³) 20 cubic meters(m³)
Tank body	material		Q235B
	Cylinder thickness		4.75mm
	Head thickness		5.75mm
	Thickness of anti wave board		4mm
	Number of anti wave boards		3 levels
subsea valve	brand		Jialong Intelligent closes the underwater valve (voice alarm)
	structure		single acting cylinder
	Opening method		automatic opening
manhole	structure		European standard tank mouth with breathing valve
	Opening method		Mechanical opening
Power take-off system	Transmission power take-off		Take off port style/flange
	Power take-off link		transmission shaft
Pump in and pump out system	oil pump	brand	Shenwei gear oil pump
		lift	90m
		traffic	60m³/h
	Host pipe	Outer diameter	φ89
		thickness	4mm
Optional system	compartment	Single warehouse	sharing
	flow meter	type	Gear flowmeter
		quantity	1
	refueller	quantity	chinese and english
	filler pipe	Meter count	15/20m
	joint	standard	European/French
	Download system	Bottom loading port	Waste gas recovery
Self flowing mouth	caliber		DN80
	Pipeline thickness		4mm
	Number of self flowing ports		3
ball valve	material		aluminum alloy
	Specification/Quantity		DN80/5
barrel	Material/Thickness		201 stainless steel/0.8mm
	length		Same length as the tank body
Protective system	Side protection		aluminum alloy
	Folding guardrail at the top of the tank		aluminum alloy
	Rear climbing ladder		reinforce
Auxiliary beam	Material and thickness		Q235B/8mm
	height		200mm
Link method	U-bolt		U-shaped color plating
	Riding bolt diameter		M18
Fire Extinguisher	Specification/Quantity		4kg/2 4kg/2 pieces
operation box	size		Determine how much based on optional configurations
	Material/Thickness		Q235B/1.5mm
toolbox	size		500×450×420mm
	Material/Thickness		Q235B/1.5mm
Painting Process	Tank surface		All baking paint process standards (high temperature resistance, high humidity resistance, corrosion resistance)
			Eight process treatments
	Inside the tank		Local electrophoresis
			All rust prevention treatment
Process standards	overseas edition		C5
Service assurance	Warranty Period		12 months from the date of delivery to the customer
	Fragile accessories accompanying the vehicle

1. Engine: it could be Weichai and Cummins. Cummins has a better performance, but it could not be used any more if it meets a problem, it is hard to be maintained. Weichai has a strong power and could be maintained, but its performance it than Cummins.

2. Gearbox: it could be FAST manuel and EATON ATM

3.Lifting System: it could be HYVA and Chinese brand.

4. Dumper Size: Height could be added, thickness could be added.

5.Cab: It could be F3000,H3000,X3000, X3000 is the best. F3000 is the most popular series.H3000 is the cheapest. Difference please ask us.

6.Tire: it could be customized.

7.Oil Tank: It could be customized

8.Color: White,Red,Orange,Green,Blue.

9.Spares: camera,day light etc.

Shacman Oil Diesel / Gasoline Liquid Tank Truck For Industry Construction 1 Shaanxi Hexin Shenghua Trading Co., Ltd is a global export authorized enterprise of Shaanxi Automobile heavy truck. We are the largest export authorized enterprise in SHACMAN heavy truck sales and service countries, our main core business is: vehicle production customization services!
Our company's development philosophy is: professional based, innovation and far-reaching,professional focus on foreign trade for 20 years! Since its establishment on September 20, 2019, it is mainly engaged in the integration of the export of
Shaanxi Automobile heavy trucks, construction machinery and special vehicles. Since its establishment,our company is committed to continuing the history of business travel on the Silk Road, actively expanding the international and domestic markets, and has successively set up companies and established sales outlets in Uzbekistan, Tajikistan,Kyrgyzstan, Vietnam and other countries through cooperation,carry out import and export trade and foreign economic and trade business, foreign economic and trade business radiates to Central Asia,Africa,Asia-Pacific,Central and South America and other regions, forming a perfect foreign trade export circulation system.
