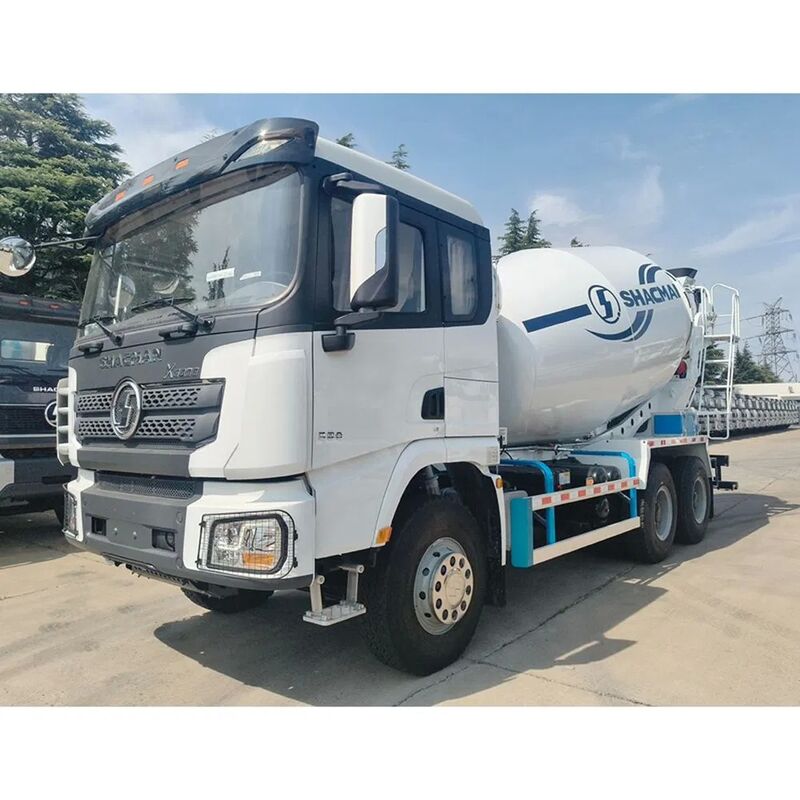

Shacman Mini Concrete Truck Beton Stir Mixer Vehicle For Building Project

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Certification: CCC, CE, GOST, ISO, SONCAP

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

special transport truck with warranty

Customized Tow X3000 8X4 wrecker truck

refrigeration box delivery van

Specifications

Model NO.:	Shacman X3000 Mixer	Capacity:	Customize
Condition:	New	Main Material:	Alloy Steel, Stainless Steel
Mixing Capacity:	Customize	Mixing Drum Shape:	Customize
Power Source:	Diesel	Safety Features:	Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard
Stirring Type:	Customize	Warranty:	24hr Hotline
Working:	Customize	Driving Type:	6×4
Wheelbase:	3975+1400	Max. Speed:	75km/H
Engine Brand:	Weichai	Rated Output Power:	380HP
Transport Package:	Wooden Transport	Specification:	7900mm2490mm3220mm
Trademark:	SHACMAN	Origin:	China
HS Code:	87042391	Production Capacity:	800PCS/Per Day
High Light:	Beton Stir Mixer , Concrete Stir Mixer , Shacman Mini Concrete Truck

Product Description

Shacman Concrete Beton Stir Mixer Vehicle Truck

Factory Direct Sale Shacman Concrete Mixing Mixer Lorry Truck for Engineering Project

Shacman Mini Concrete Truck Beton Stir Mixer Vehicle For Building Project 0

Product Overview

A dump truck is designed with a box that can be elevated at the front end to allow contents to be dumped out the back. These trucks are typically used to transport construction waste, sand, gravel, and similar materials.

SHACMAN dump trucks feature 5 series - X3000, F3000, H3000, F2000, and L3000 - to meet diverse customer requirements. With multiple configurations available, from standard tippers to highly specialized vehicles for demanding jobs, SHACMAN provides comprehensive solutions for all your construction needs.

Technical Specifications

MODEL	SX32555T404
Driver position	Left Hand
Driving type	6*4
Wheelbase	3975+1400
Max. Speed	75km/h
Engine
Brand	WEICHAI
Model	WP10.380E22
Emission Standard	EURO 2
Rated output power	380HP
Transmission
Brand	FAST
Model	12JSD200T-B-Iron Shell-QH50
Front Axle
Brand	HANDE
Model	MAN 9.5T
Rear Axle
Brand	HANDE
Model	16T MAN Double-Stage Reduction Drive Axle (Speed ratio: 5.262)
Clutch	¢430 diaphragm clutch
Steering	ZF technology/ZF
Frame	850*300(8+7)
Suspension	Front and rear multi-leaf spring four main leaves + four horse riding
Fuel tank	400L Aluminium alloy fuel tank
Wheels and tires	12.00R20 Radial Tyre (Tyre 20 ply Rating) 10+1
Brakes
Running brake	Dual circuit compressed air brake
Parking brake	Air discharging with spring control
Auxiliary brake	Engine exhaust brake

Cabin Features

X3000 extended flat roof cab without roof guide cover dump truck with electric automatic constant temperature air conditioning, desert air filter, ordinary exhaust, multi leaf spring front suspension, multi leaf spring (four saddle bolt) rear suspension, domestic steering gear, multifunctional steering wheel, 165Ah maintenance free battery, electric flip, three-level boarding pedal, metal bumper with light protection net, center front traction seat, electric window shaking machine, central locking (with remote control), air main seat, electric heated rearview mirror, tail light protection grille, water tank protection grille, front stabilizer bar, four point hydraulic suspension, stainless steel wheel rim decoration cover, reverse buzzer, daytime running lights, SHACMAN logo, full English logo, 2KG fire extinguisher, parking wedge block, rear axle stabilizer bar, and battery box anti-theft.

Upbody Specifications

Customizable Components

Engine: Available in Weichai and Cummins options. Cummins offers better performance but requires specialized maintenance. Weichai provides strong power with easier maintenance accessibility.
Gearbox: Options include FAST manual and EATON ATM transmissions.
Lifting System: Available with HYVA or Chinese brand lifting mechanisms.
Dumper Size: Customizable height and thickness options available.
Cab: Choose from F3000, H3000, or X3000 series. X3000 offers premium features, F3000 is the most popular, and H3000 provides cost-effective solutions.
Tire: Custom tire configurations available.
Oil Tank: Customizable fuel tank options.
Color: Available in White, Red, Orange, Green, and Blue.
Spares: Additional accessories including cameras, daylight systems, and more.
