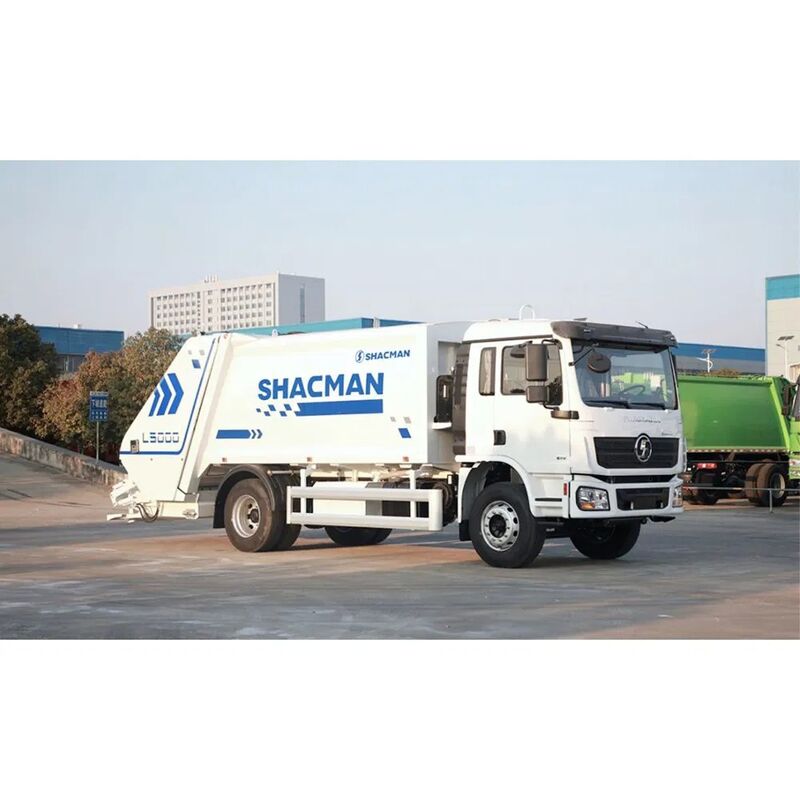

Diesel Small Trash Compactor Truck Garbage Rubbish Waste Gathering Compressing Clean Vehicle
| Model NO.: | Shacman L3000 Garbage Truck | Type: | Garbage Truck |
| Volume: | Customize | Emission Standard: | Euro 5 |
| Transmission Type: | Manual | Payload: | Customize |
| Fuel: | Diesel | Drive Wheel: | Customize |
| Brand: | Shacman | Models: | Customize |
| Usage: | Dump, Compression Type, Garbage Truck | Condition: | New |
| Engine: | Wp6.210e32 | Transmission: | 8js85te-C(Alumnium) |
| Front Axle: | 4.8t (Disc Brake) | Rear Axle: | 10t Single-Stage Bridge 4.625 |
| Fuel Tank: | 200L Iron Fuel Tank | Suspention: | Front And Rear Multiple Leaf Springs, Four Main P |
| Wheels: | 10.00r20 | Wheelbase(mm): | 5000mm |
| Frame(mm): | 870mm X 250mm 7+4 | Cabin: | L3000 Cab |
| Model: | Sx1255mn464 | Battery: | 135 Maintenance-Free Battery |
| Transport Package: | Roll -Roll | Trademark: | Shacman |
| Origin: | China | HS Code: | 8704230090 |
| Production Capacity: | 1500pieces/Year | ||
| High Light: | Diesel Small Trash Compactor Truck,Small Trash Compactor Truck,Diesel Waste Compression Truck |
||
A dump truck is a truck of which box can be elevated at the front end to allow its contents to be dumped out the back. A dump truck is typically used to haul construction waste, sand, gravel, and other similar items.
SHACMAN dump trucks have 5 series such as X3000,F3000,H3000,F2000,L3000 to meet different customer requires.With many configurations available to choose; from the standard tipper to highly specialized vehicles for tough job, SHACMAN has all that you need. No matter what the job entails, our qualified professionals can help you pick out the perfect vehicle.
| Baseplate | ||
baseplate parameter |
Chassis Model | |
| pilothouse colour | ||
| Drive Type | 4X2 | |
| wheelbase; | 4500/5000 | |
| Engine model | ||
| engine power (kw) | ||
| emission standard | ||
| tire | ||
| Upper part | ||
Compression box |
Effective volume | 16m³ |
| Box shape | Curved/square box body | |
| Box material | Q355 Q355 high-strength steel |
|
| Edge plate thickness | 5mm | |
| Bottom plate thickness | 5mm | |
| Compression ratio | ≥2.5 | |
| Capacity of sewage tank | 300L / 500L Front sewage tank 300L/ Rear sewage tank 500L |
|
| Effective volume of filler | ≥1.8m³ | |
| Filler slide material/thickness | T420 high-strength steel/8mm |
|
| Time of filling cycle once | ≤25s | |
| Filling machine lifting time | ≤15s | |
| unload garbage time | ≤45s | |
| Maximum flipping capacity of flipping bucket | ≤500kg | |
| Working time of flipping mechanism | ≤12s | |
control system |
control mode | Automatic+manual+ Wireless remote control |
| control system | CAN-BUS CAN-BUS bus control |
|
| electromagnetic gas valve | blch | |
| Engine power control | fully automatic control | |
| electronic control system | CAN-BUS CAN-BUS bus control+silicone button control box |
|
hydraulic system |
hydraulic system pressure | 18MPa |
| Multi way directional valve | Yangzhou Zhongmei Multi way Valve | |
| hydraulic oil pump | Hefei Changyuan Pump | |
| Lift cylinder balance valve | Yangzhou Zhongmei balance valve (optional imported valve core balance valve) | |
| Hydraulic cylinder | Hunan Juge Oil Cylinder (optional Yantai Future Oil Cylinder) | |
| Tubing | 3-layer steel wire hose | |
TURN SYSTEM |
Bucket flipping mechanism | Rear tail with bucket flipping mechanism |
| Bucket flipping type | 120/240/660/1100 L120/240/660/1100 L drum | |
| 1 Flip option 1 | Triangle bucket | |
| 2 Flip option 2 | Full floor bucket | |
| 3 Flip option 3 | Swing arm device | |
| filler | Bottom sewage tank | |
Protective system |
Side protection | Aluminum alloy/carbon steel |
| front bumper | Seamless rectangular tube | |
Painting Process |
Paint pre-treatment | blasting |
| Paint color | DIY (customizable) | |
| primer | Epoxy primer (rust proof) | |
| finish | Acrylic acid | |
| Paint brand | Xiangjiang brand | |
| paint process | Electrophoresis+baking paint | |
Service guarantee |
Delivery time | The chassis will arrive at the factory within 15 working days |
| Vehicle after-sales service | 18 months | |
1. Engine: it could be Weichai and Cummins. Cummins has a better performance, but it could not be used any more if it meets a problem, it is hard to be maintained. Weichai has a strong power and could be maintained, but its performance it than Cummins.
2. Gearbox: it could be FAST manuel and EATON ATM
3.Lifting System: it could be HYVA and Chinese brand.
4. Dumper Size: Height could be added, thickness could be added.
5.Cab: It could be F3000,H3000,X3000, X3000 is the best. F3000 is the most popular series.H3000 is the cheapest. Difference please ask us.
6.Tire: it could be customized.
7.Oil Tank: It could be customized
8.Color: White,Red,Orange,Green,Blue.
9.Spares: camera,day light etc.
