Engineering Construction Use LHD / Rhd Driving Cargo Delivery Dump Truck
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Model NO.: | SHACMAN F2000 | Transmission Type: | Automatic |
| Power: | Diesel | Load Capacity: | 21-30t |
| Emission Standard: | Euro 2 | Drive Wheel: | 6×4 |
| Engine Capacity: | ＞8L | Seats: | ≤5 |
| Horsepower: | 351-450hp | Tire Certification: | ECE, GCC |
| Tire Design: | Tubeless | Dumping Type: | Side Dumping Style |
| Condition: | New | Model: | Sx3255jm384 |
| Driver Position: | Left Hand | Wheel Base: | 3775+1400 |
| Max. Speed: | 65km/H | Engine: | Weichai |
| Emission Standard/: | Euro2 | Displacement (L): | 9.726L |
| Fuel Tank: | 380L Iron Tank | Wheels Tires: | 12r22.5(10+1) |
| Transport Package: | Wooden Transport | Specification: | 7900mm*2490mm*3220mm |
| Trademark: | SHACMAN | Origin: | China |
| High Light: | LHD cargo dump truck,RHD construction dump truck,compactor garbage delivery truck |
||
Product Description

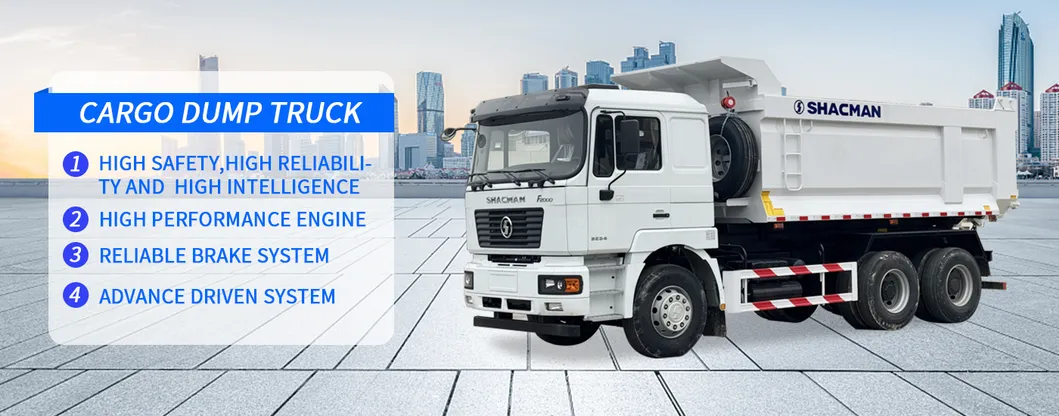

SHACMAN F2000 6×4 LHD Cargo Dump Truck
High-performance dump truck engineered for construction and cargo delivery applications with left-hand drive configuration.
Product Overview
A dump truck features a hydraulically operated box that elevates at the front to discharge materials through the rear. Designed for transporting construction materials, sand, gravel, and industrial waste.
SHACMAN offers five dump truck series (X3000, F3000, H3000, F2000, L3000) to meet diverse operational requirements. With configurations ranging from standard tippers to specialized vehicles for demanding applications, SHACMAN provides comprehensive solutions for any job requirement.
Technical Specifications
| Model | SX3255JM384 |
| Driver Position | Left Hand Drive |
| Driving Type | 6×4 |
| Wheelbase | 3775+1400 mm |
| Maximum Speed | 65 km/h |
Engine System
| Brand | Weichai |
| Model | WP10.290E32 |
| Emission Standard | EURO2 |
| Rated Output Power | 290 PS |
| Displacement | 9.726 L |
Transmission & Drivetrain
| Transmission Brand | FAST |
| Transmission Model | 9JS135-iron hell-QH50 |
| Front Axle Brand | HANDE |
| Front Axle Model | MAN7.5T |
| Rear Axle Brand | HANDE |
| Rear Axle Model | 16T MAN Twin-Stage Cast Axle 5.73 |
Chassis & Body
| Steering | ZF technology/ZF |
| Frame | 850×300(8+7) |
| Suspension | Front and rear multi-leaf spring, two main plates + two riding bolts |
| Fuel Tank | 380L iron tank |
| Wheels & Tires | 12R22.5(10+1) |
Braking System
| Running Brake | Dual circuit compressed air brake |
| Parking Brake | Air discharging with spring control |
| Auxiliary Brake | Engine exhaust brake |
Cab Configuration
F2000 extended flat roof cab without top deflector tipper truck, hot zone air-conditioner, manual window crank, hydraulic main seat, single sleeper, single rear view mirror, imported clutch, common side air filter, domestic steering gear, common steering wheel, domestic six-channel ABS, domestic tachograph, 165Ah maintenance-free battery, manual flip, fixed on-board pedals, fibreglass bumper.
Body Specifications
Box Size: 5200×2300×1350 mm | Baseplate thickness: 8 mm | Bangboard thickness: 6 mm U-type container
Customization Options
Engine
Weichai or Cummins options available. Cummins offers superior performance but requires specialized maintenance. Weichai provides robust power with easier maintenance accessibility.
Gearbox
FAST manual or EATON ATM transmission systems available.
Lifting System
HYVA or Chinese brand lifting mechanisms.
Dumper Size
Customizable height and thickness dimensions available.
Cab
F3000, H3000, or X3000 cab options. X3000 represents premium quality, F3000 offers popular balance, H3000 provides cost-effective solution.
Tire Configuration
Custom tire specifications available.
Oil Tank
Custom fuel tank capacity options.
Color Options
White, Red, Orange, Green, Blue color selections.
Additional Spares
Camera systems, daylight running lights, and other accessories available.
Manufacturer Profile
Shaanxi Hexin Shenghua Trading Co., Ltd is an authorized global export enterprise for Shaanxi Automobile heavy trucks. As the largest export authorized enterprise in SHACMAN heavy truck sales and service network, our core business focuses on vehicle production customization services.
With 20 years of professional foreign trade expertise, our company development philosophy emphasizes professional foundation, innovation, and long-term vision. Established on September 20, 2019, we specialize in integrated export of Shaanxi Automobile heavy trucks, construction machinery, and special vehicles.
Committed to continuing the Silk Road business tradition, we actively expand international and domestic markets with established companies and sales outlets in Uzbekistan, Tajikistan, Kyrgyzstan, Vietnam, and other countries through cooperative partnerships. Our foreign trade business extends across Central Asia, Africa, Asia-Pacific, Central and South America, forming a comprehensive export circulation system.
