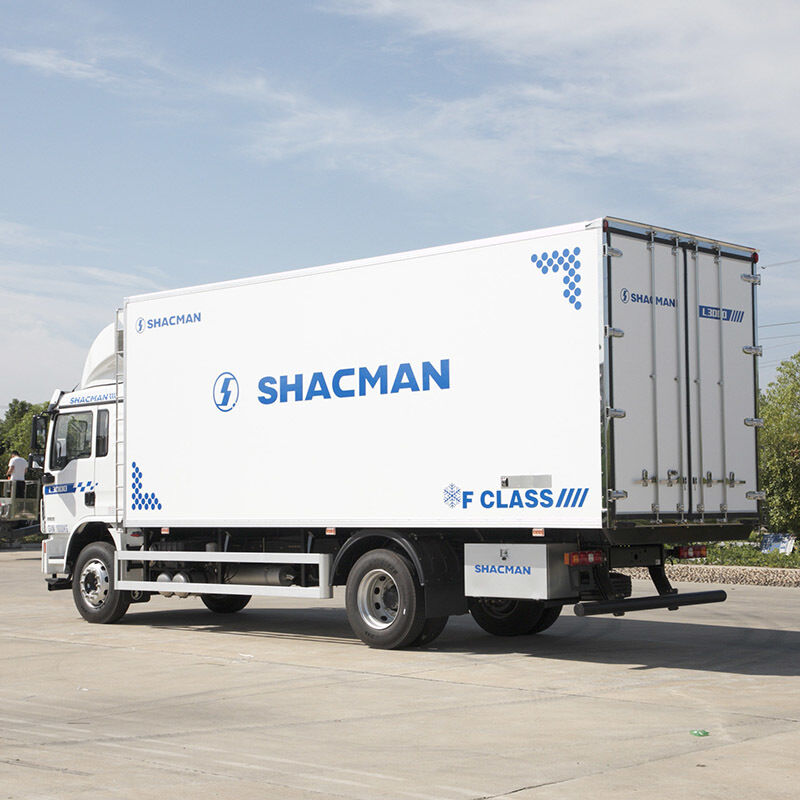

Electric Truck Food Meat Fish Refrigerated Delivery Trucks Diesel Ice Cream Refrigerator Cargo Van Truck Kit
| Model: | L3000 | Transmission Type: | Manual |
| Condition: | New | Horsepower: | 150 - 250hp |
| Emission Standard: | EURO 2 3 4 5 | Fuel Type: | Diesel |
| Dimensions (L x W x H) (mm): | 12000*2600*3995 | Box Dimensions (L x W x H) (mm): | 9250*2430*2500 |
| Temperature Range: | -18 - 20℃ | Gross Vehicle Weight: | 15-20T |
| After-sales Service Provided: | Online Support, Video Technical Support | Maximum Torque(Nm): | 1500-2000Nm |
| Capacity (Load): | 11 - 20T | Engine Capacity: | > 8L |
| Product name: | SHACMAN L3000 4x2 Refrigerated Truck Freezer Cold Box Truck | Drive type: | 4x2, 6x4/8x4/4x4/6x6 For Choice |
| Chassis Brand: | SHACMAN | Wheelbase: | 3600mm |
| Max. Speed: | 90km/h | Front/side/rear panel: | Fiber Glass Sandwich Polyurethane |
| Middle Insulation layer: | 8mm Thickness | Flooring: | Anti-skid And Wear-resistant Patterned Aluminum Plate |
| Color & LOGO: | According To Customers' Requirement | Application: | Dairy Products/Frozen Food/Fruits/Vegetables/Vaccines/Medicine, Etc. |
| High Light: | Electric refrigerated delivery truck,Diesel ice cream cargo van,Meat fish transport truck kit |
||
Specialized enclosed transport vehicles designed to maintain stable temperature-controlled environments for temperature-sensitive goods during transit. Featuring insulated cargo compartments constructed with high-performance polyurethane materials and reliable refrigeration systems, these trucks ensure optimal preservation of frozen foods, dairy products, fruits, vegetables, vaccines, pharmaceuticals, and other perishable items.
| Component | Specification |
|---|---|
| Truck Brand | SHACMAN L3000 Refrigerated Truck |
| Overall Dimension | 6000x2350x3650mm |
| Cargo VAN Box Size | 9100x2550x3910mm |
| Max. Speed | 90km/h |
| Color & LOGO | Customizable to customer requirements |
| Driving Style | Left hand drive or right hand drive |
| Driving Type | 4x2, 6x4/8x4 available |
| Engine | WEICHAI, WP6.210E32, 210HP/154KW |
| Frame | 870x250(7+4)mm |
| Wheelbase | 3600mm |
| Vehicle Speed Ratio | 10T single-stage bridge 5.125 |
| Emission Standard | EURO 3 |
| Suspension | Front and rear multi-leaf springs |
| Cab | Shacman single row cab, 3 seats |
| Body Size | 3800x2400x2500mm |
| Load Capacity | 10-12 ton |
| Front/Side/Rear Panel | Fiber glass sandwich polyurethane |
| Middle Insulation Layer | 8mm thickness |
| Lifting Device Material | Q235 High strength steel |
| Rear Door Type | Full Size Double Opening Rear Door |
| Flooring | Anti-skid and wear-resistant patterned aluminum plate |
| Refrigeration Unit | Imported Carrier D6 |
| Refrigeration Temperature | -5°C to 15°C |
Henan Senyao Heavy Truck International Trade Co., Ltd. specializes in the export integration of Shaanxi Automobile Heavy Truck, special vehicles, and construction machinery. As a global export authorization enterprise of Shaanxi Automobile Heavy Truck, we maintain a strategic policy of "mutual benefit, honesty and win-win," building extensive sales networks across Central Asia, Africa, and Central and South America.
With an annual export capacity exceeding 3,000 units, Senyao's product quality and service have earned recognition from customers worldwide. Our commitment to military-grade quality and professional export services ensures long-term, reliable partnerships.
- Professional export packaging: Weather-proof and secure
- Multiple shipping methods: RORO, container, or bulk vessel
- Worldwide delivery: Experience shipping to 50+ countries
- Documentation support: Complete export documentation provided
- Goods Type: Determine if transporting frozen (-18°C or below), refrigerated (0°C-8°C), or fresh produce (0°C-15°C)
- Value & Sensitivity: Assess cargo value and temperature sensitivity requirements
- Transport Scale: Evaluate single load capacity, total weight, and transport frequency
- Chassis Requirements: Consider license type (Blue/Yellow plate) and road conditions
- Budget Range: Determine budget for domestic, joint-venture, or imported refrigeration units
- Unit Type: Independent (own engine) for stable long-haul operation vs. Non-independent (PTO) for cost efficiency
- Brand Options: Imported (Thermo King, Carrier, Mahle) or domestic (KingSnow, Songhan)
- Cooling Capacity: Verify kW/kcal/h specifications and temperature range capabilities
- Control Systems: Digital temperature control with remote monitoring capabilities
- Construction: Polyurethane integral foam insulation with FRP, stainless steel, or aluminum alloy skins
- Insulation Thickness: 80mm, 100mm, or 120mm based on temperature requirements
- Sealing & Details: Multi-layer door seals, anti-skid flooring with drainage
- Chassis Brand: SHACMAN, Foton, Dongfeng, Jiefang, Sinotruk options
- Engine Specifications: Horsepower and emission standard compliance
- Structural Reinforcement: Chassis strengthened for refrigerated body weight
- Price Breakdown: Verify inclusion of chassis, unit, body, installation, and taxes
- Warranty Coverage: Separate terms for chassis, refrigeration unit, and body
- Service Network: Availability of local service centers and response times
A: Body size depends on daily freight volume and cargo density, considering legal limits. Choose a refrigeration unit one level more powerful than minimum requirements, considering temperature range, body size, insulation performance, door opening frequency, and ambient temperatures.
A: Pre-cool the empty truck to target temperature before loading. Ensure proper airflow by leaving space between cargo and walls. Minimize door opening time and use temperature loggers for journey monitoring.
A: Yes, we provide detailed operation manuals and can arrange training sessions at the manufacturing site or through video materials. On-site training for overseas projects is available.
A: Typically 12 months from shipment or arrival date, covering defects in materials and workmanship under normal use. Specific terms detailed in sales contract.
A: Absolutely. We specialize in customization including cargo tank capacity, color, logo, and specific equipment compartments based on customer requirements.
A: We maintain reliable supply chains for SHACMAN chassis parts and work with OEMs for firefighting system components. We support identifying local parts suppliers where possible.
A: We accept T/T (30% advance, 70% before shipment), L/C (100% irrevocable from recognized bank), VISA, and Paypal. Consult with sales managers for specific arrangements.
