Shacman F3000 X3000 Refrigerated Truck 20t Door Locks Freezer Truck Refrigerator Vehicle with Split Type Van Refrigeration Unit

Name: Shacman F3000 X3000 Refrigerated Truck 20t Door Locks Freezer Truck Refrigerator Vehicle with Split Type Van Refrigeration Unit
Brand: Henan Senyao Heavy Truck International Trade Co., Ltd.
Availability: InStock

Brand Name:	SHACMAN
MOQ:	1
Price:	Negotiable
Delivery Time:	35-55days

Detail Information

Product Description

Detail Information

Place of Origin:

SHAANXI,XIAN

Model:

X3000

Transmission Type:

Manual

Condition:

New

Horsepower:

351 - 450hp

Emission Standard:

EURO 2 3 4 5

Fuel Type:

Diesel

Dimensions (L X W X H) (mm):

10500*2600*4000mm

Box Dimensions (L X W X H) (mm):

580x1310x380mm

Temperature Range:

-18 - 20℃

Gross Vehicle Weight:

20-25T

After-sales Service Provided:

Online Support, Video Technical Support

Maximum Torque(Nm):

2000-2500Nm

Capacity (Load):

21 - 30T

Engine Capacity:

> 8L

Product Name:

SHACMAN L3000 4x2 Refrigerated Truck Freezer Cold Box Truck

Drive Type:

6x4, 4x2/4x4/6x6/8x4for Choice

Chassis Brand:

SHACMAN

Wheelbase:

4375+1400mm

Max. Speed:

90km/h

Front/side/rear Panel:

Fiber Glass Sandwich Polyurethane

Middle Insulation Layer:

8mm Thickness

Flooring:

Anti-skid And Wear-resistant Patterned Aluminum Plate

Color & LOGO:

According To Customers' Requirement

Application:

Dairy Products/Frozen Food/Fruits/Vegetables/Vaccines/Medicine, Etc.

Highlight:

Shacman F3000 refrigerated truck

20t freezer truck with refrigeration unit

split type van refrigerator vehicle

Product Description

Shacman F3000 X3000 Refrigerated Truck

20-ton capacity freezer truck with split-type van refrigeration unit, designed for reliable temperature-controlled transport of perishable goods.

Product Overview

The SHACMAN X3000 Series Refrigerator Trucks are specialized enclosed transport vehicles engineered to maintain stable cold or fresh-keeping environments for temperature-sensitive goods during transit. Featuring high-performance insulated cargo compartments constructed with polyurethane materials and reliable refrigeration systems, these trucks ensure optimal conditions for frozen food, dairy products, fruits, vegetables, vaccines, pharmaceuticals, and other perishables.

Key Features and Advantages

Precise temperature control for cargo freshness preservation
Excellent thermal insulation for energy efficiency
Reliable Shacman chassis with powerful performance
Intelligent management system for full traceability
Ergonomic design for enhanced driving comfort

Technical Specifications

Total Vehicle Specifications
Overall Dimension	10500x2600x4000mm
Cargo Van Box Size	7900x2400x2500mm
Max. Speed	90km/h
Color & LOGO	Customizable according to customer requirements

Chassis Specifications
Driving Style	Left hand drive or right hand drive
Driving Type	4x2, 6x4/8x4 available
Engine	WEICHAI, WP12.430E201, 430HP/316KW
Frame	850x300(8+7)mm
Wheelbase	4375+1400mm
Vehicle Speed Ratio	13T HD dual-stage 5.262
Emission Standard	EURO 2
Suspension	Front and rear multi-leaf springs
Cab	Shacman single row cab, 3 seats

Refrigerator Van Box Specifications
Body Size	3800x2400x2500mm
Load Capacity	20-30 ton
Front/Side/Rear Panel	Fiber glass sandwich polyurethane
Middle Insulation Layer	8mm thickness
Lifting Device Material	Q235 High strength steel
Rear Door Type	Full Size Double Opening Rear Door
Flooring	Anti-skid and wear-resistant patterned aluminum plate
Refrigeration Unit	Imported Carrier D6
Refrigeration Temperature	-5°C to 18°C

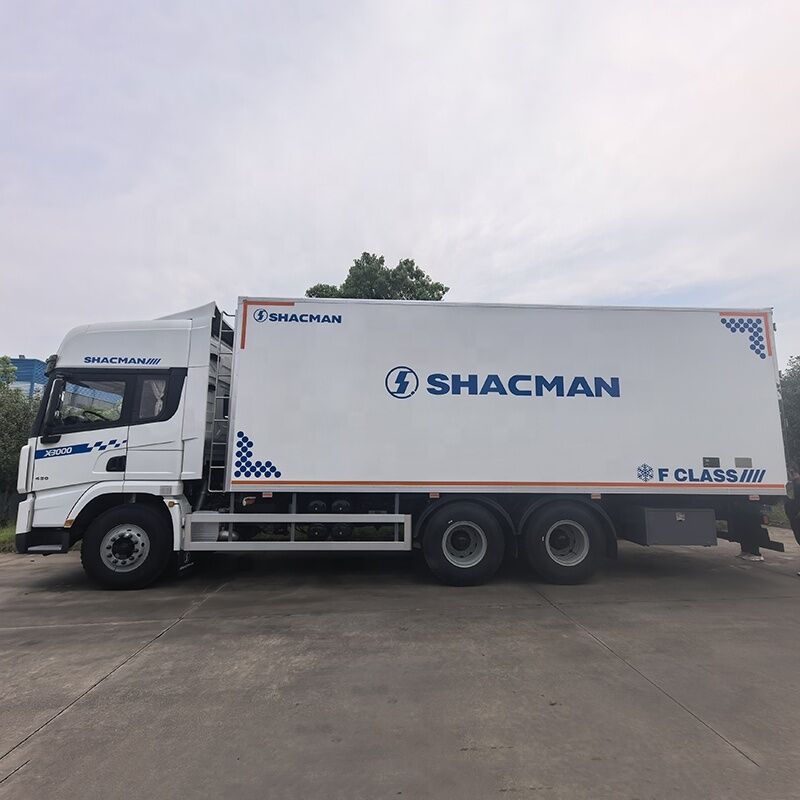

Product Images

Company Profile

Henan Senyao Heavy Truck International Trade Co., Ltd. specializes in the export integration of Shaanxi Automobile Heavy Truck, special vehicles, and construction machinery. As a global export authorization enterprise of Shaanxi Automobile Heavy Truck, we maintain a strategic policy of "mutual benefit, honesty and win-win," building an extensive sales network across Central Asia, Africa, and Central and South America.

With an annual export capacity exceeding 3,000 units, Senyao's product quality and service have earned recognition from customers worldwide. Our commitment to military-grade quality and professional export standards ensures reliable partnerships and long-term cooperation.

Packaging & Shipping

Professional export packaging: Weather-proof and secure
Multiple shipping methods: RORO, container, or bulk vessel
Worldwide delivery: Experience in shipping to 50+ countries
Documentation support: Complete export documentation provided

Purchase Guide

Step 1: Define Your Requirements

1. What goods will you be transporting?

Type of Goods: Determine if you need frozen transport (-18°C or below for ice cream, frozen meat), refrigerated (0°C to 8°C for chilled meat, yogurt, pharmaceuticals), or fresh produce (0°C to 15°C for fruits and vegetables). Consider the value and temperature sensitivity of your goods, as this determines the required performance grade of the refrigeration unit and insulation.

2. What is the scale and frequency of your transport?

Single Load Capacity and Total Weight: Determine your typical tonnage requirements to select appropriate chassis and cargo box sizes. Transport Distance and Frequency: Consider whether you need short-distance urban distribution or long-distance intercity routes, as this affects chassis power, unit endurance, and reliability requirements.

3. What are the requirements for the chassis and licensing?

License Type: Blue plate (car license, easier urban access) or Yellow plate (truck license, higher capacity). Road Conditions: Urban streets, suburbs, or highways determine requirements for chassis power, maneuverability, and vehicle dimensions.

4. What is your budget range?

Your budget determines whether you can choose domestic, joint-venture, or imported refrigeration units, as well as body material grades. Imported brands (Thermo King, Carrier) offer superior performance and reliability, while domestic brands provide better cost-effectiveness and wider after-sales service networks.

Step 2: Confirm Refrigerated Truck Details

A. About the Refrigeration Unit (The "Heart" of the Truck)

1. Unit Type and Brand: Independent units have their own engine for stable operation and can cool for extended periods even when the vehicle engine is off, ideal for long-haul transport and frequent door openings. Non-independent units are powered by the vehicle's engine, offering lower cost and simpler maintenance but limited cooling when stationary.

2. Cooling Capacity and Temperature Range: Verify the unit's cooling capacity (kW or kcal/h) and ensure its maximum capability exceeds your actual needs, particularly for frozen goods requiring -18°C.

3. Control System and Intelligence: Digital temperature control provides precise monitoring and data logging. Remote monitoring capabilities allow temperature checks and adjustments via mobile apps, essential for high-value goods and refined management.

B. About the Insulated Cargo Body (The "Armor" of the Truck)

1. Body Material and Structure: Choose polyurethane integral foam for optimal insulation and sealing. Consider inner and outer skin materials: FRP (cost-effective), stainless steel (corrosion-resistant), or aluminum alloy (lighter weight). Insulation thickness of 100mm or more is recommended for frozen goods or large temperature variations.

2. Sealing and Details: Inspect door frame structure, seal materials, and sealing layers. Check floor structure for drainage, anti-slip treatment, and ventilation channels to prevent water accumulation and aid cold air circulation.

C. About the Truck Chassis (The "Legs" of the Truck)

1. Chassis Brand and Model: Verify compatibility with your operational requirements.

2. Engine and Emission Standard: Confirm engine horsepower and compliance with applicable emission standards.

3. Chassis Stability: Ensure the chassis has been reinforced specifically for refrigerated body applications to handle the additional weight and dense cargo.

D. About Price and Service

1. Price Breakdown: Verify that the quoted price includes chassis, refrigeration unit, insulated body, installation, delivery, taxes, and official invoice.

2. After-Sales Service and Warranty: Clarify separate warranty periods for chassis, refrigeration unit, and body. Confirm service center locations and response times for refrigeration unit repairs, as service network availability is crucial.

Frequently Asked Questions

Q1: How do I choose the right size refrigerator trucks and refrigeration unit?

Body Size: Determined by your daily freight volume and cargo density, considering legal size limits. Refrigeration Unit: Select a unit one level more powerful than your theoretical minimum requirement. Key factors include required temperature range (frozen below -18°C or chilled 0°C to 5°C), body size and insulation performance, and frequency of door openings and ambient external temperature.

Q2: How can I ensure my goods maintain the correct temperature for the entire trip?

Pre-cooling is critical: Cool the empty truck body to the target transport temperature before loading. Ensure proper airflow by leaving space between cargo and walls, ceiling, and floor. Do not block air channels. Minimize door open time during loading/unloading. Use and regularly check the temperature logger for objective journey monitoring and liability clarification.

Q3: Do you provide training for operators and maintenance personnel?

Yes, we provide detailed operation and maintenance manuals in required languages. Upon request, we can arrange training sessions at the manufacturing site or provide video training materials. For overseas projects, on-site training and commissioning can be discussed.

Q4: What are the warranty terms for the refrigerated truck?

The warranty period is typically 12 months from the date of shipment or arrival at the destination port. The warranty covers defects in materials and workmanship under normal use. Specific terms are detailed in the sales contract.

Q5: Can the refrigerated truck be customized for specific needs?

Absolutely. Customization is one of our strengths. We can adjust cargo tank capacity, color, logo, and specific equipment compartments to accommodate other specific requirements based on customer needs.

Q6: What about the supply of spare parts?

We maintain a reliable supply chain for SHACMAN chassis parts. For refrigeration system components, we work with OEMs to ensure genuine spare part availability. We also offer support in identifying local parts suppliers where possible.

Q7: Which payment terms can you accept?

We accept T/T terms (30% down payment, 70% balance before shipment or against copy of original B/L for long-term clients) or L/C terms (100% irrevocable L/C without "soft clauses" from internationally recognized banks). Please consult with your sales manager for specific payment arrangements.
