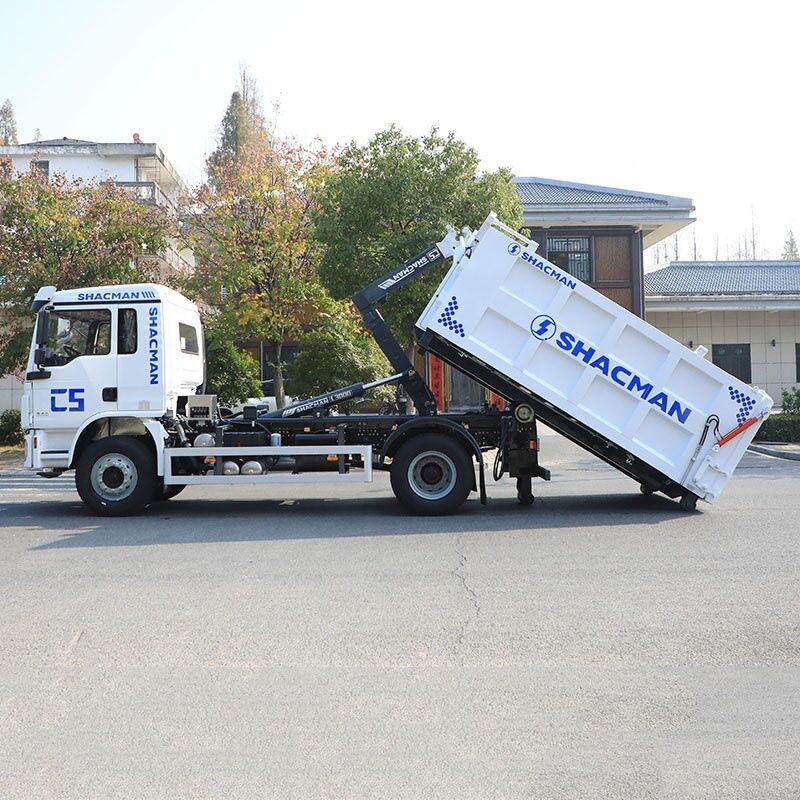

4X2 14cbm Refuse Collector Waste Compactor Trucks Detachable Container Garbage Vehicle

Brand Name:	SHACMAN
MOQ:	1
Price:	Negotiable
Delivery Time:	35-55days

Detail Information

Product Description

Detail Information

Place of Origin:

SHAANXI,XIAN

Color:

White

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Engine, Gearbox

Drive Wheel:

4X2

Type:

Compactor

Transmission Type:

Manual

Emission Standard:

Euro 2

Fuel Type:

Diesel

Engine Capacity:

>8L

Size:

8250x2500x3250mm

Gross Vehicle Weight:

18000

Warranty:

1 Year

Weight (KG):

8500 Kg

Engine Type:

WEICHAI, 210hp, 230hp, 240hp, 300hp

Cabin Color:

White, Red, Green, Can Be Customized

Wheelbase:

3600mm, 4000mm, 4375+1400mm, 5000mm

Fuel Tank:

200L Iron/300L Aluminum Alloy

Tire:

10.00R20, 6pcs With One Spare Tire

Max. Driving Speed:

90km/h

Compression Box Volume:

8m³/10m³/12m³/14m³/16m³/20m³

Compression Ratio:

≥2.5

Time Of Filling Cycle Once:

≤25s

Unload Garbage Time:

≤45s

Highlight:

14cbm Refuse Collector Truck

4X2 Waste Compactor Truck

Detachable Container Garbage Vehicle

Product Description

SHACMAN L3000 Series Detachable Compartment Garbage Trucks

Compactor garbage truck, also known as a compressed or compression garbage truck, is an essential vehicle in modern waste management. This specialized truck is designed to efficiently collect, compress, and transport waste materials, significantly enhancing the process of garbage disposal.

We provide SHACMAN high-quality compactor garbage trucks, designed for municipal sanitation, industrial parks, towns, and scenic spot waste collection and transportation. Utilizing advanced compression technology, they ensure efficient, environmentally friendly, and reliable operational performance, meeting the diverse needs of international customers.

SHACMAN Compactor Garbage Truck Advantages:

1. High Efficiency Compression

2. Environmentally Friendly & Leakage-free

3. Automated Operation

4. Economical & Durable

5. Multi-scenario Application

Truck Brand	SHACMAN L3000 Series Compressed Garbage Trucks
Chassis System	Steering Style	Left hand drive or right hand drive
		Driving Type	4x2
		Engine Brand	WEICHAI
		Engine Power	210hp, 245hp, 300hp
		Emission Standard	EURO 2
		Fuel Tank	300L aluminum alloy
		Frame	870x250(7+4)mm
		Wheelbase	3600mm
		Tire	10.00R20, 12.00R20
Upper Part (Compression Bin)	Tank Volume	8m³, 10m³, 12m³, 14m³, 16m³
		Compression Box Shape	Curved/square box body
		Compression Ratio	≥2.5
		Bucket Flipping Type	120/240/660/1100L drum
		Flip Option	Triangle bucket/Full floor bucket/Swing arm device
		Bucket Flipping Mechanism	Rear tail with bucket flipping mechanism
		Effective Volume of Filler	≥1.8m³
		Capacity of Sewage Tank	Front sewage tank 300L, Rear sewage tank 500L
		Time of Filling Cycle Once	≤25s
		Unload Garbage Time	≤45s
		Control Mode	Automatic+manual+Wireless remote control
		Control System	CAN-BUS bus control

1. Export Packaging: Weather-proof covering and secure loading. 2. Shipping Methods: RORO, container, or bulk vessel. 3. Delivery Time: 20-40 days after order confirmation. 4. Documentation support: Complete export documentation provided.

Q1: What is the compression ratio and loading capacity of SHACMAN compactor garbage trucks? A: SHACMAN compactor trucks typically have a compression ratio higher than 2.5:1, some models can reach 3.8:1. The effective volume is generally above 6-8 cubic meters (after compression), and the rated load capacity is around 8-10 tons (depending on the chassis and design). This means it can hold significantly more waste than ordinary non-compacting garbage trucks. Q2: Will there be sewage leakage during transportation? A: Absolutely not. This is a top priority in our design. The truck features a fully sealed body, multiple sealing strips, and a dedicated large-capacity sewage collection tank, ensuring all wastewater generated during compression and transportation is completely contained, effectively eliminating secondary pollution. Q3: Is the operation complicated? Does it require special training? A: The operation is very simple. It is primarily controlled via a PLC one-touch control panel located in the cab or at the rear of the truck. The high level of automation means usually only one driver is needed for all operations. We provide detailed operational training upon delivery. Q4: What customization options are available? A: We can provide various customizations based on your requirements, including but not limited to: (1) Chassis brand and model: (e.g., SHACMAN, Dongfeng, SINOTRUK HOWO, etc.) (2) Power type (Diesel / Pure Electric) (3) Loading method (Hanging bucket, Shovel bucket, Swing arm, etc.) (4) Volume and loading capacity (5) Special options: Weighing system, Remote monitoring, High-pressure cleaning, Air conditioning, Explosion-proof, Special anti-corrosion treatment, Configurations for extreme climates (high temperature, cold, sandstorm) . Q5: What is the warranty policy and after-sales service like? A: We provide comprehensive warranty and service support. Typically, the whole vehicle or the body part comes with a 1-year or a certain number of operating hours warranty (specific terms need confirmation). We have service networks or partners in multiple regions overseas capable of providing timely after-sales service, technical support, and spare parts supply to ensure your vehicles operate efficiently.
