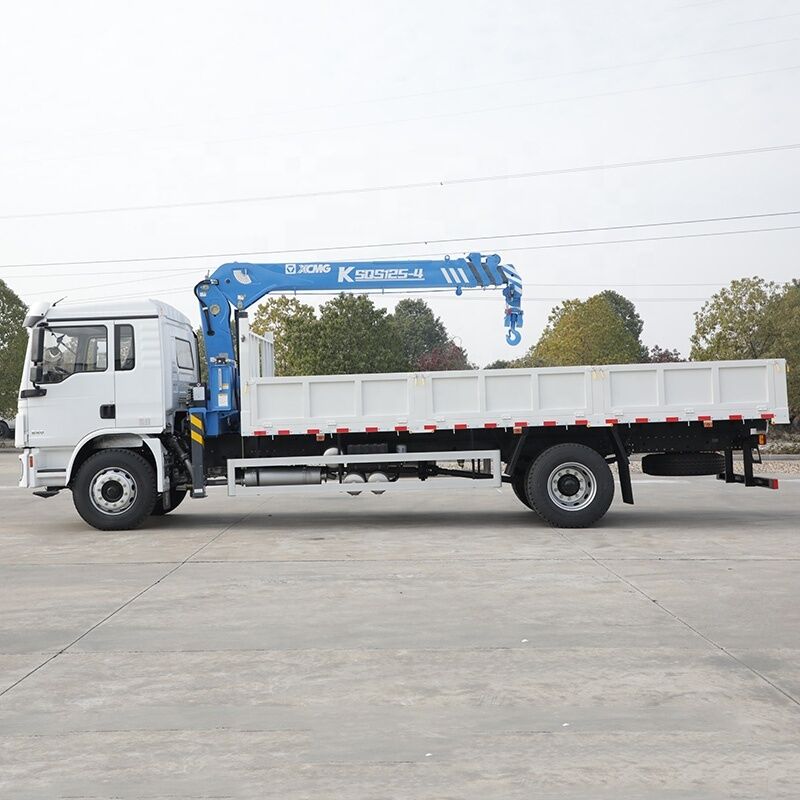

4X2 Shacman 10 - 12 Ton Straight Knuckle Telescopic Boom Truck Mounted Crane

Name: 4X2 Shacman 10 - 12 Ton Straight Knuckle Telescopic Boom Truck Mounted Crane
Brand: Henan Senyao Heavy Truck International Trade Co., Ltd.
Availability: InStock

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

12 Ton Telescopic Boom Truck Crane

4X2 Telescopic Boom Truck Mounted Crane

4X2 Knuckle Boom Truck Mounted Crane

Specifications

Color:	Blue, Green, Yellow, White	Application:	Construction/Warehouse/Terminals/Logistics/Rescue
Make:	XCMG/SANY/SUNHUNK	Hydraulic Pump Brand:	Top Brand
Engine Brand:	Weichai	Luffing Range:	0~78°
Slewing Angle:	360°	Fuel Tank:	200L Iron
High Light:	12 Ton Telescopic Boom Truck Crane , 4X2 Telescopic Boom Truck Mounted Crane , 4X2 Knuckle Boom Truck Mounted Crane

Product Description

Available Configurations

Truck Chassis
- Primary brand: SHACMAN
- Also available: Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, BEIBEN, JAC, JMC, and others upon request.
Drive Type
4×2, 4×4, 6×4, 6×6, 8×4.
Emission Standard
Euro II, Euro III, Euro V, Euro VI.
Crane Brands
We supply cranes from leading manufacturers such as XCMG, SANY, Palfinger, UNIC, and more.
Lifting Capacity
Available capacities range from 2 tons to 20 tons, including:
2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 18T, 20T, and others.
Crane Type
- Straight Arm: Cost-effective, suitable for general lifting tasks.
- Folding Arm (Knuckle Boom): More compact and flexible, generally priced higher for the same lifting capacity.
Cargo Box Dimensions
Fully customizable based on customer specifications, with expert recommendations available from our technical team.

4X2 Shacman 10 - 12 Ton Straight Knuckle Telescopic Boom Truck Mounted Crane 0

Max. Lifting Weight	5000kg	6300kg	7000kg	10000kg	12000kg	16000kg	18000kg	20000kg
Max. Lifting Torque	12.5kN·m	157.5kN·m	175kN·m	260kN·m	300kN·m	430kN·m	470kN·m	500kN·m
Max. Working Radius	11.2m	13.04m	13.5m	18.6m	14.5m	21.77m	22.41m	23.7m
Luffing Range	0°~78°	0°~75°	0°~75°	0°~75°	0°~75°	0°~75°	0°~75°	0°~75°
Slewing Angle	360°	360°	360°	360°	360°	360°	360°	360°
Outrigger Span	2150~5100m	2280~5500mm	2430~5650mm	2497~7605mm	2310~5700mm	2440~8400m	2436~8396mm	2436~8396mm
Installation Space	700mm	900mm	1100mm	1200mm	1300mm	1340mm	1340mm	1400mm
Max. Operating Pressure	22MPa	22MPa	23MPa	26MPa	26MPa	28MPa	28MPa	28MPa
Oil Flow Volume	63L/min	63L/min	63L/min	63+50L/min	63+40L/min	80+50L/min	80+50L/min	80+50L/min
Oil Tank Capacity	90L	90L	90L	200L	240L	240L	240L	270L
Crane Weight	2200kg	2420kg	2330kg	3693kg	4300kg	6880kg	6970kg	7600kg

4X2 Shacman 10 - 12 Ton Straight Knuckle Telescopic Boom Truck Mounted Crane 2
