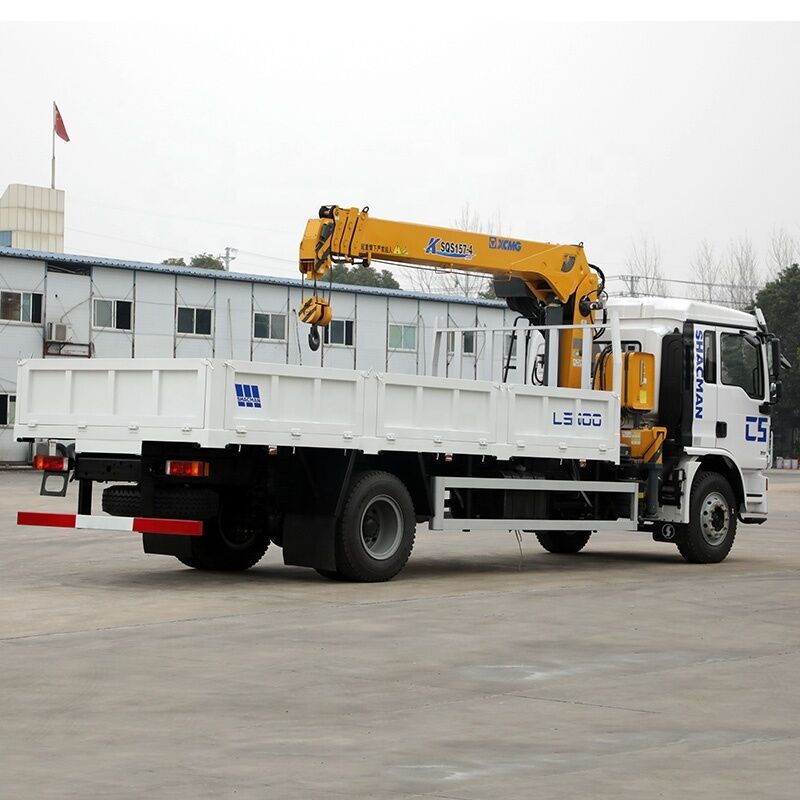

Straight Loader Truck Knuckle Boom Crane Truck Mounted Cargo Tow Crane Truck

Name: Straight Loader Truck Knuckle Boom Crane Truck Mounted Cargo Tow Crane Truck
Brand: Henan Senyao Heavy Truck International Trade Co., Ltd.
Availability: InStock

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

Straight Knuckle Boom Crane Truck

Cargo Tow Crane Truck

Specifications

Color:	Blue, Green, Yellow, White	Application:	Construction/Warehouse/Terminals/Logistics/Rescue
Rated Lifting Moment:	157.5kN.m	Video outgoing-inspection:	Provided
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Gearbox, Engine	Emission standard:	Euro 2
High Light:	Straight Knuckle Boom Crane Truck , OEM Knuckle Boom Crane Truck , Cargo Tow Crane Truck

Product Description

SHACMAN L3000 X3000 F3000 H3000 Series Crane Trucks

Customizable Configurations

We provide a wide array of configuration options to meet diverse operational needs:

Truck Chassis
- Main brand: SHACMAN
- Alternative brands available upon request: Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, BEIBEN, JAC, JMC, and more.
Drive Configuration
- 4×2, 4×4, 6×4, 6×6, 8×4.
Emission Standards
- Compliant with Euro II, Euro III, Euro V, and Euro VI.
Crane Brands
- We partner with leading manufacturers such as XCMG, SANY, Palfinger, UNIC, and others.
Lifting Capacity
- Available from 2 tons up to 20 tons, including:
  2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 18T, 20T, and more.
Crane Arm Design
- Straight Arm: Economical and reliable for general lifting applications.
- Folding Arm (Knuckle Boom): Compact and highly maneuverable, usually priced higher for the same lifting capacity.
Cargo Box Customization
- Fully tailored dimensions based on customer needs, with expert recommendations from our technical team.

Straight Loader Truck Knuckle Boom Crane Truck Mounted Cargo Tow Crane Truck 0

Max. Lifting Weight	5000kg	6300kg	7000kg	10000kg	12000kg	16000kg	18000kg	20000kg
Max. Lifting Torque	12.5kN·m	157.5kN·m	175kN·m	260kN·m	300kN·m	430kN·m	470kN·m	500kN·m
Max. Working Radius	11.2m	13.04m	13.5m	18.6m	14.5m	21.77m	22.41m	23.7m
Luffing Range	0°~78°	0°~75°	0°~75°	0°~75°	0°~75°	0°~75°	0°~75°	0°~75°
Slewing Angle	360°	360°	360°	360°	360°	360°	360°	360°
Outrigger Span	2150~5100m	2280~5500mm	2430~5650mm	2497~7605mm	2310~5700mm	2440~8400m	2436~8396mm	2436~8396mm
Installation Space	700mm	900mm	1100mm	1200mm	1300mm	1340mm	1340mm	1400mm
Max. Operating Pressure	22MPa	22MPa	23MPa	26MPa	26MPa	28MPa	28MPa	28MPa
Oil Flow Volume	63L/min	63L/min	63L/min	63+50L/min	63+40L/min	80+50L/min	80+50L/min	80+50L/min
Oil Tank Capacity	90L	90L	90L	200L	240L	240L	240L	270L
Crane Weight	2200kg	2420kg	2330kg	3693kg	4300kg	6880kg	6970kg	7600kg
