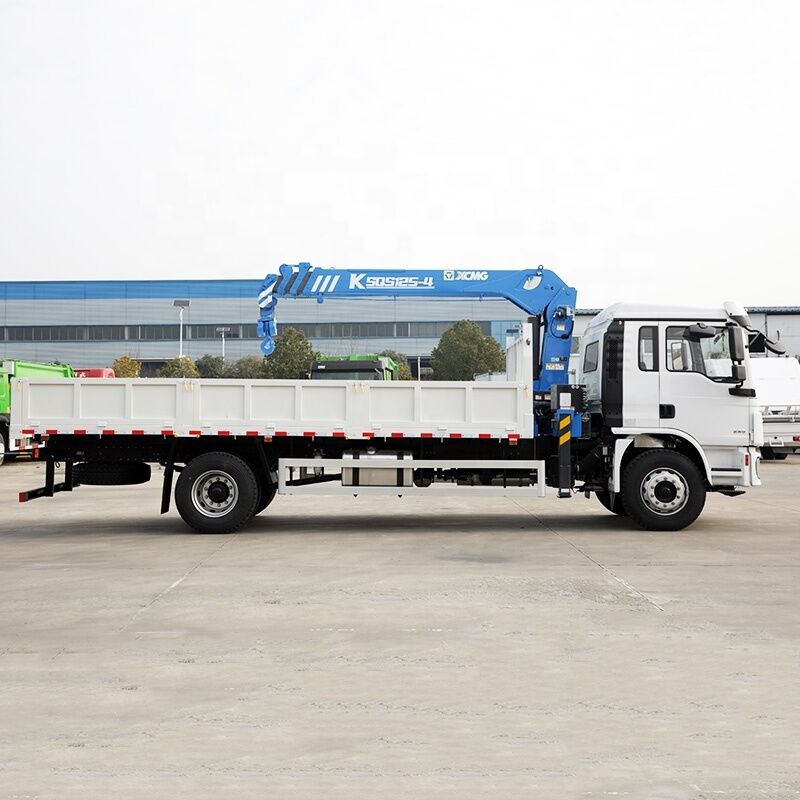

4X2 5T 6.3T Straight Small Truck Mounted Cranes Remote Control Shacman L3000
| Color: | White, Yellow, Green, Blue | Application: | Construction/Warehouse/Terminals/Logistics/Rescue |
| Rated Lifting Moment: | 12.5kN.m | Max. Lifting Height: | 12.7m |
| Boom type: | Hydraulic Straight Arm | Max. Lifting Weight: | 5T/6.3T/7T/10T/12T/16T/18T/20T |
| Slewing Angle: | 360° | Fuel Tank: | 200L Iron |
| High Light: | Shacman L3000,4X2 Remote Control Truck Crane,6.3T Small Truck Mounted Cranes |
||
SHACMAN L3000 X3000 F3000 H3000 Series Crane Trucks
Available Configurations & Customization Options
-
Truck Chassis
-
Primary brand: SHACMAN
-
Other chassis brands available upon request: Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, BEIBEN, JAC, JMC, and more.
-
-
Drive Configuration
-
4×2, 4×4, 6×4, 6×6, 8×4.
-
-
Emission Standards
-
Euro II, Euro III, Euro V, Euro VI compliant.
-
-
Crane Brands
-
Leading crane manufacturers, including XCMG, SANY, Palfinger, UNIC, among others.
-
-
Lifting Capacity
-
Ranging from 2 to 20 tons, with available capacities such as:
2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 18T, 20T, and more.
-
-
Crane Arm Design
-
Straight Arm: Cost-effective, suitable for general lifting tasks.
-
Folding Arm (Knuckle Boom): Compact and highly maneuverable, generally priced higher for equivalent capacities.
-
-
Cargo Box Customization
-
Fully customizable in size and configuration based on client needs, with professional guidance from our technical team.
-
|
Max. Lifting Weight
|
5000kg
|
6300kg
|
7000kg
|
10000kg
|
12000kg
|
16000kg
|
18000kg
|
20000kg
|
|
Max. Lifting Torque
|
12.5kN·m
|
157.5kN·m
|
175kN·m
|
260kN·m
|
300kN·m
|
430kN·m
|
470kN·m
|
500kN·m
|
|
Max. Working Radius
|
11.2m
|
13.04m
|
13.5m
|
18.6m
|
14.5m
|
21.77m
|
22.41m
|
23.7m
|
|
Luffing Range
|
0°~78°
|
0°~75°
|
0°~75°
|
0°~75°
|
0°~75°
|
0°~75°
|
0°~75°
|
0°~75°
|
|
Slewing Angle
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
|
Outrigger Span
|
2150~5100m
|
2280~5500mm
|
2430~5650mm
|
2497~7605mm
|
2310~5700mm
|
2440~8400m
|
2436~8396mm
|
2436~8396mm
|
|
Installation Space
|
700mm
|
900mm
|
1100mm
|
1200mm
|
1300mm
|
1340mm
|
1340mm
|
1400mm
|
|
Max. Operating Pressure
|
22MPa
|
22MPa
|
23MPa
|
26MPa
|
26MPa
|
28MPa
|
28MPa
|
28MPa
|
|
Oil Flow Volume
|
63L/min
|
63L/min
|
63L/min
|
63+50L/min
|
63+40L/min
|
80+50L/min
|
80+50L/min
|
80+50L/min
|
|
Oil Tank Capacity
|
90L
|
90L
|
90L
|
200L
|
240L
|
240L
|
240L
|
270L
|
|
Crane Weight
|
2200kg
|
2420kg
|
2330kg
|
3693kg
|
4300kg
|
6880kg
|
6970kg
|
7600kg
|
