Shacman X3000 Dump Truck 6x4 Euro 2 Emission Standard 50t Load Capacity

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

Payment Terms: T/T

Supply Ability: 800 Units/Per Day

Dump Tipper Truck

Specifications

Model NO.:	X3000 6*4	Transmission Type:	Manual
Power:	Diesel	Load Capacity:	＞50t
Emission Standard:	Euro 2	Drive Wheel:	6×4
Seats:	≤5	Horsepower:	351-450hp
High Light:	X3000 6×4 Dump Truck , Shacman X3000 Dump Truck 6x4 , Shacman X3000 Dump Truck Euro 2

Product Description

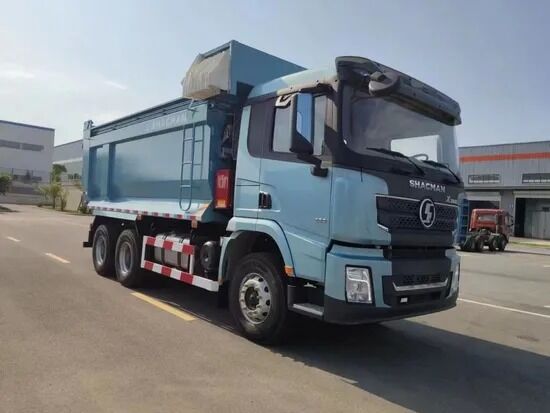

Shacman Dump Truck X3000 6X4 Blue Color Euro 2

SHACMAN QUALITY CHINESE SPEED

Industry Optimal Power Assembly

WEICHAI ENGINE FAST TRANSMISSION HANDE AXLE

Shaanxi Delong Shacman X3000 6X4 Mine Tractor Truck

As an official Shacman manufacturer, we provide various dump trucks with competitive pricing and superior quality. We also offer comprehensive after-sales service. Contact us to customize your truck proposal.

Shacman X3000 Dump Truck 6x4 Euro 2 Emission Standard 50t Load Capacity 0

Customization Options

Engine: Weichai or Cummins. Cummins offers better performance but is harder to maintain. Weichai provides strong power and easier maintenance.
Gearbox: FAST manual or EATON ATM transmission systems
Lifting System: HYVA or Chinese brand lifting mechanisms
Dumper Size: Customizable height and thickness options
Cab: F3000, H3000, or X3000 series (X3000 offers premium features, F3000 is most popular, H3000 is most economical)
Tire: Fully customizable tire specifications
Oil Tank: Customizable oil tank configurations
Color: White, Red, Orange, Green, Blue color options
Spares: Additional features including camera, radar, daylight running lights, etc.

All specifications can be customized to meet your specific requirements. Contact us for personalized solutions.

Technical Specifications

Model	SX42555V324
Driver Position	Left Hand
Cab	Medium length flat top
Driving Type	6X4
Wheelbase	3175+1400
Max. Speed	100km/h
Engine Brand	WEICHAI
Engine Model	Weichai WP12.430E201
Emission Standard	EURO 2
Rated Output Power	430HP
Displacement	11.596L
Transmission Brand	FAST
Transmission Model	12JSD200T-B
Front Axle Brand	HANDE
Front Axle Model	7.5MANT
Rear Axle Brand	HANDE
Rear Axle Model	13T double reduction driving axle Speed ratio 3.364
Clutch	¢430 diaphragm clutch
Frame	(940-850)*300
Suspension	Multiple leaf springs front and rear
Fuel Tank	400L Aluminum alloy
Wheels and Tires	12R22.5
Brakes	Running brake: Dual circuit compressed air brake Parking brake: Air discharging with spring control Auxiliary brake: Engine exhaust brake

Cabin Features

Air main seat, four point air suspension, electrically controlled automatic climate control, electric window shaker, electrically heated rearview mirror, electric flipping, central locking (dual remote control), multifunctional steering wheel, aluminum alloy air reservoir, telescopic shaft operation, ordinary air filter, lightweight 90 saddle, corrugated mounting plate, fiberglass bumper, daytime running lights, fixed boarding pedal, split mudguard, 165Ah maintenance-free battery, SHACMAN logo Full English logo, electronically controlled engine models reflect constant speed cruise control.

Product Description

A dump truck features a box that can be elevated at the front end to allow contents to be dumped out the back. These trucks are typically used to haul construction waste, sand, gravel, and similar materials.

SHACMAN dump trucks offer 5 series (X3000, F3000, H3000, F2000, L3000) to meet different customer requirements. With numerous configurations available - from standard tippers to highly specialized vehicles for tough jobs - SHACMAN provides the perfect solution for any application. Our qualified professionals can help you select the ideal vehicle for your specific needs.
